Instruments - Info on 2 Position Oil Pressure Gauge
NUMBER: 92-U-64CORP.REF.NO: 218112
DATE: November 1992
SECTION: 8A, 8C
SUBJECT:
ADDITIONAL INFORMATION FOR TWO POSITION OIL PRESSURE INDICATOR GAUGE
MODELS/YEARS:
1992 CUTLASS SUPREME
Some 1992 Oldsmobile Cutlass Supreme models were built with a standard Oil Pressure Gauge and some models were built with a Two-Position Oil Pressure Indicator. This bulletin provides the necessary diagnostic information for Two-Position Oil Pressure Indicator System Faults ONLY.
The indicator will point to low oil pressure with the ignition switch in "RUN" with the engine NOT running. When the engine is running, normal oil pressure opens the Oil Pressure Switch and the Indicator will move to mid-scale.
For the sake of efficiency, complete service manual pages are provided only where necessary. Pages with minor additions are displayed as page titles, page numbers and the updated information. For clarity, when necessary, a brief note explains where the update would be inserted in the page.
Please mark a reference to this bulletin on the appropriate pages in Section 8A of the 1992 Cutlass Supreme Service Manual.

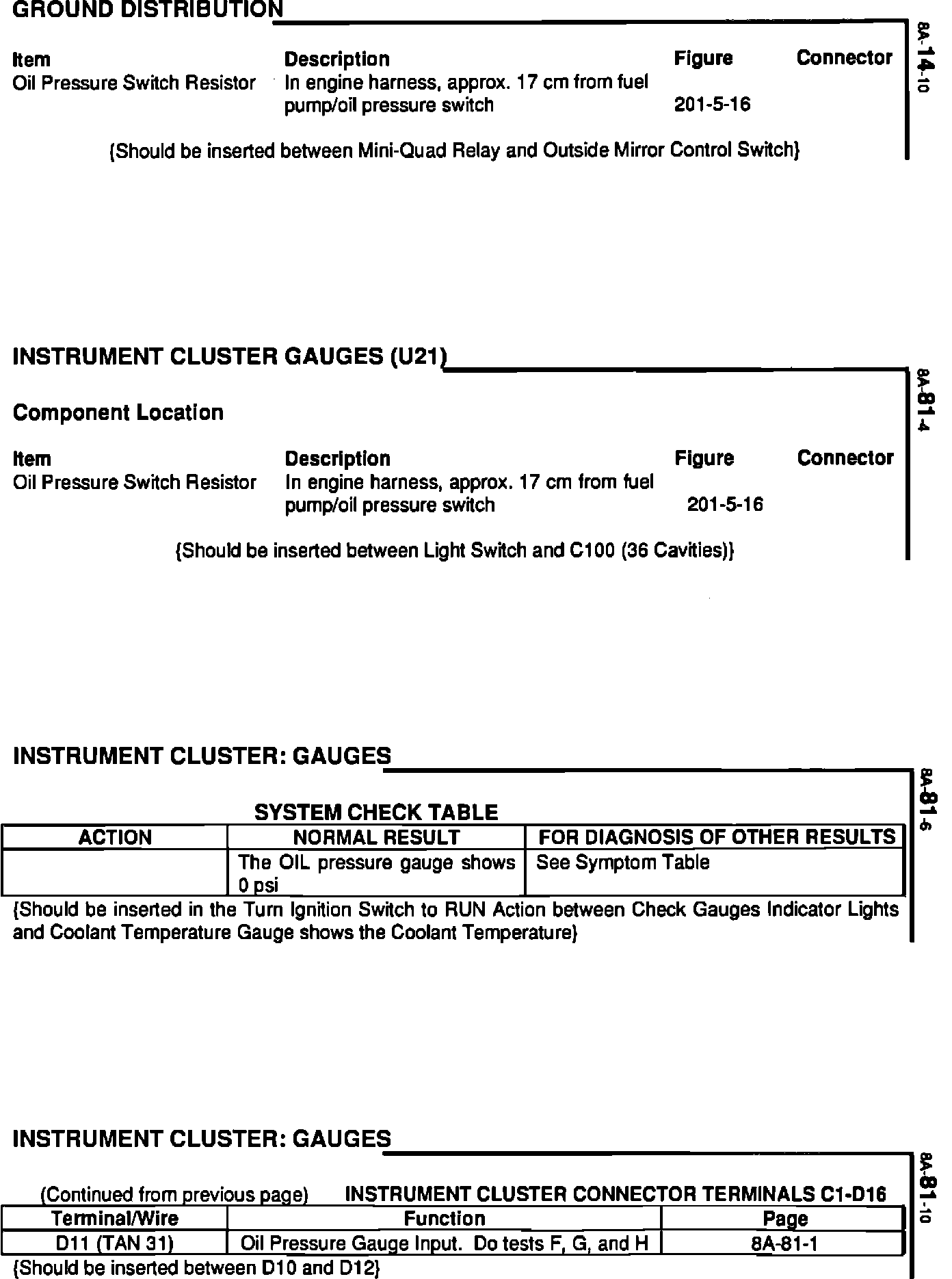

Ground Distribution Instrument Cluster Gauges (U21) Instrument Cluster: Gauges

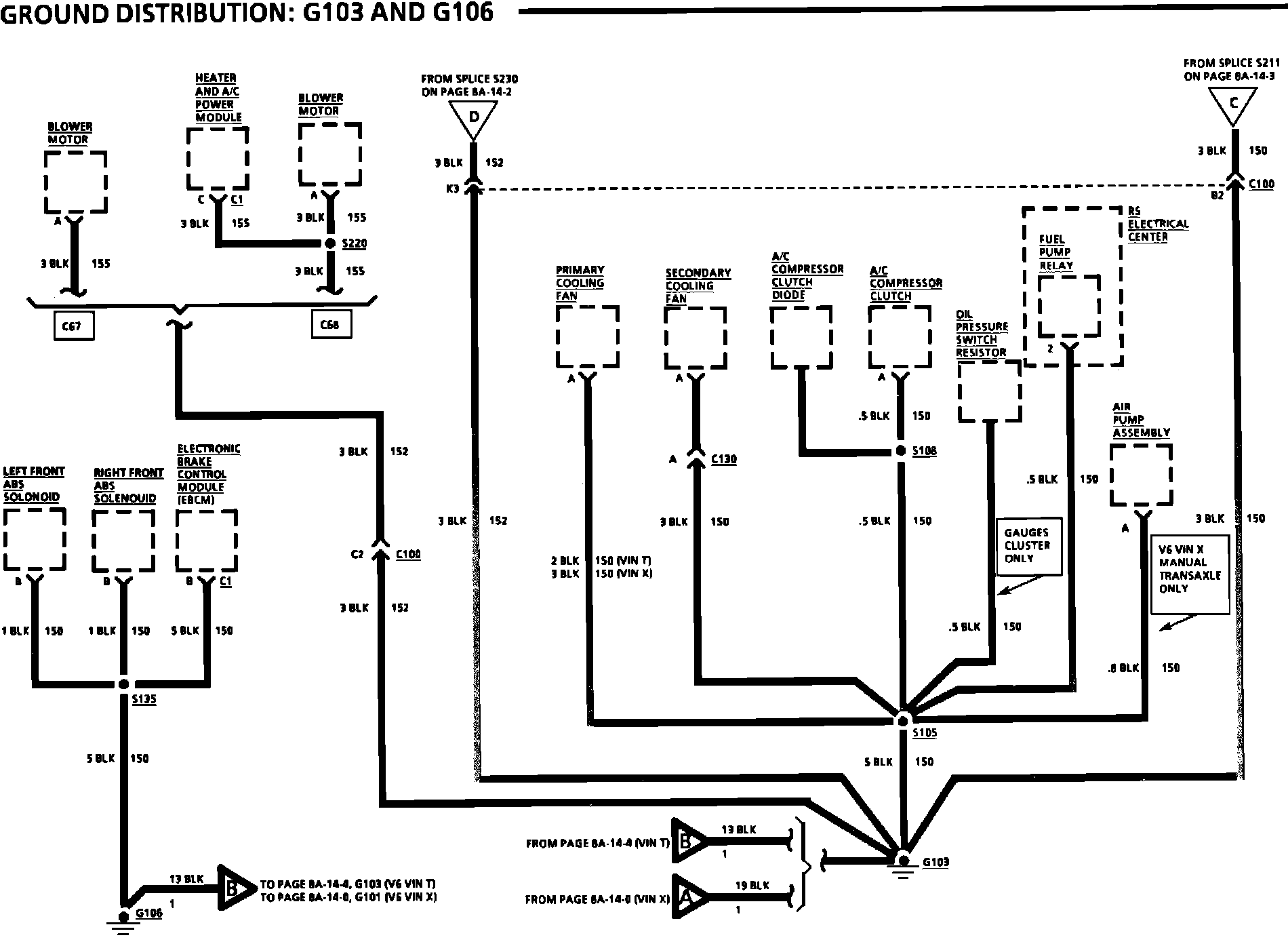

Ground Distribution: G103 and G106

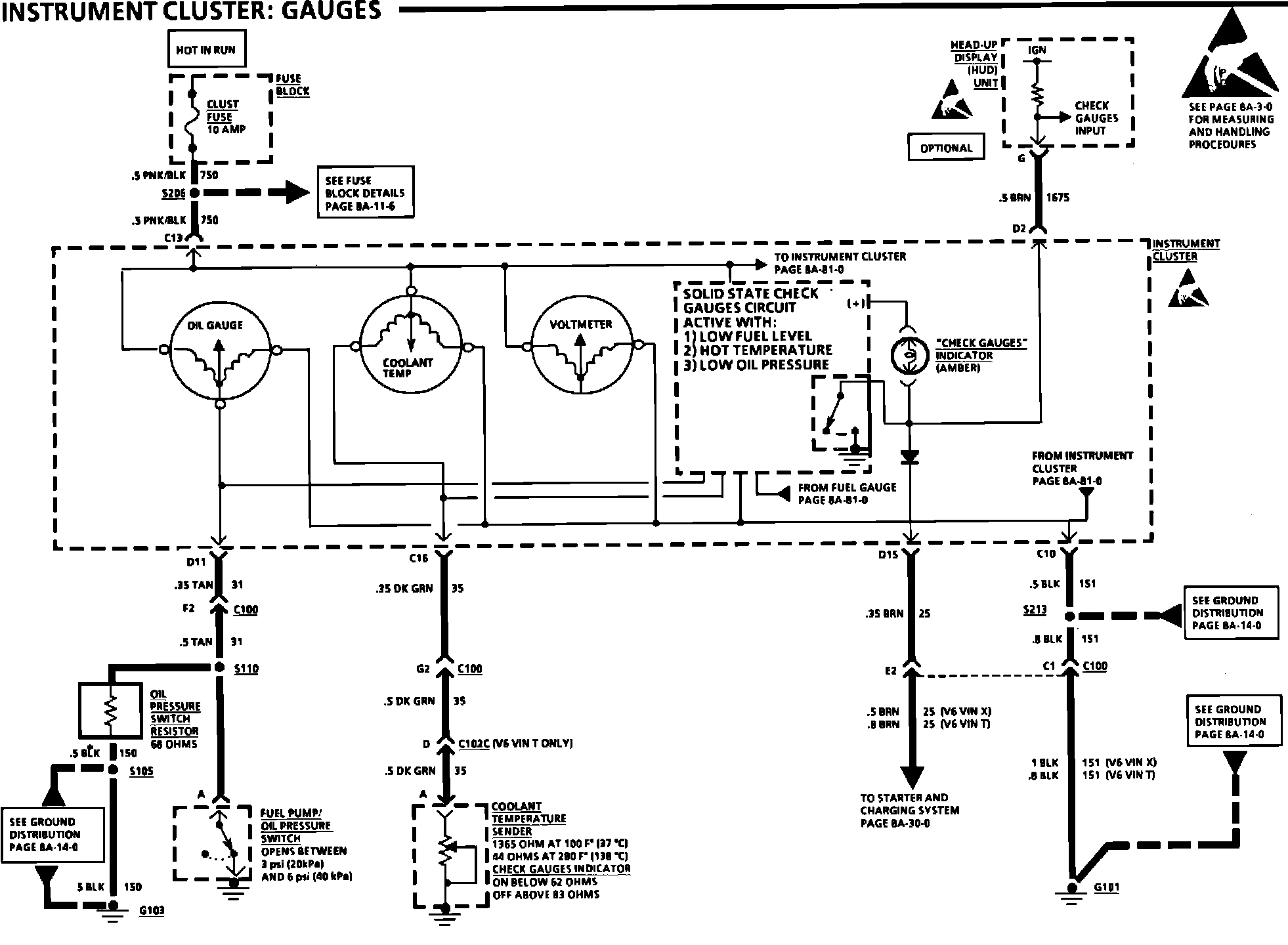

Instrument Cluster: Gauges Wiring Diagram

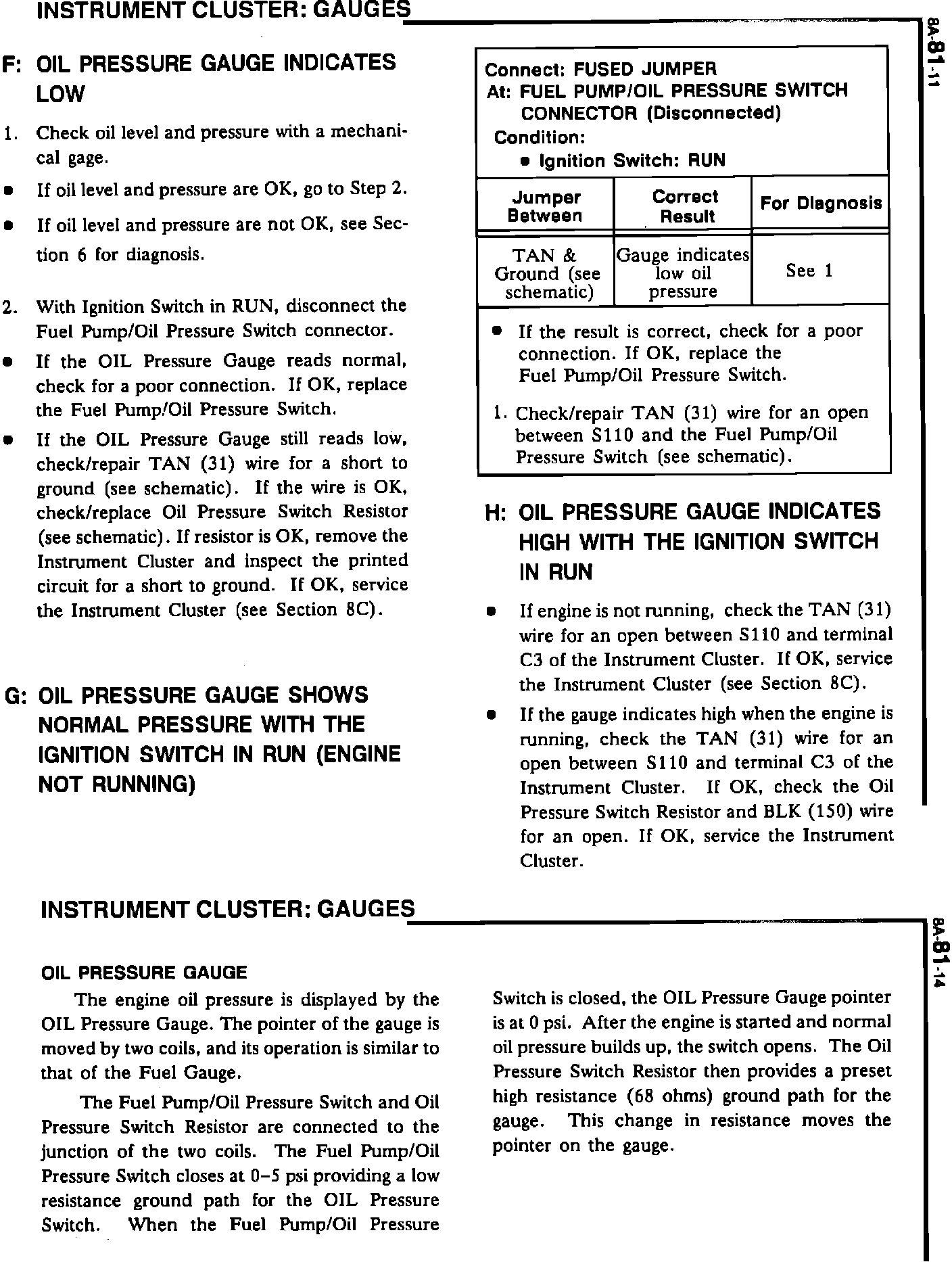

Oil Pressure Gauge

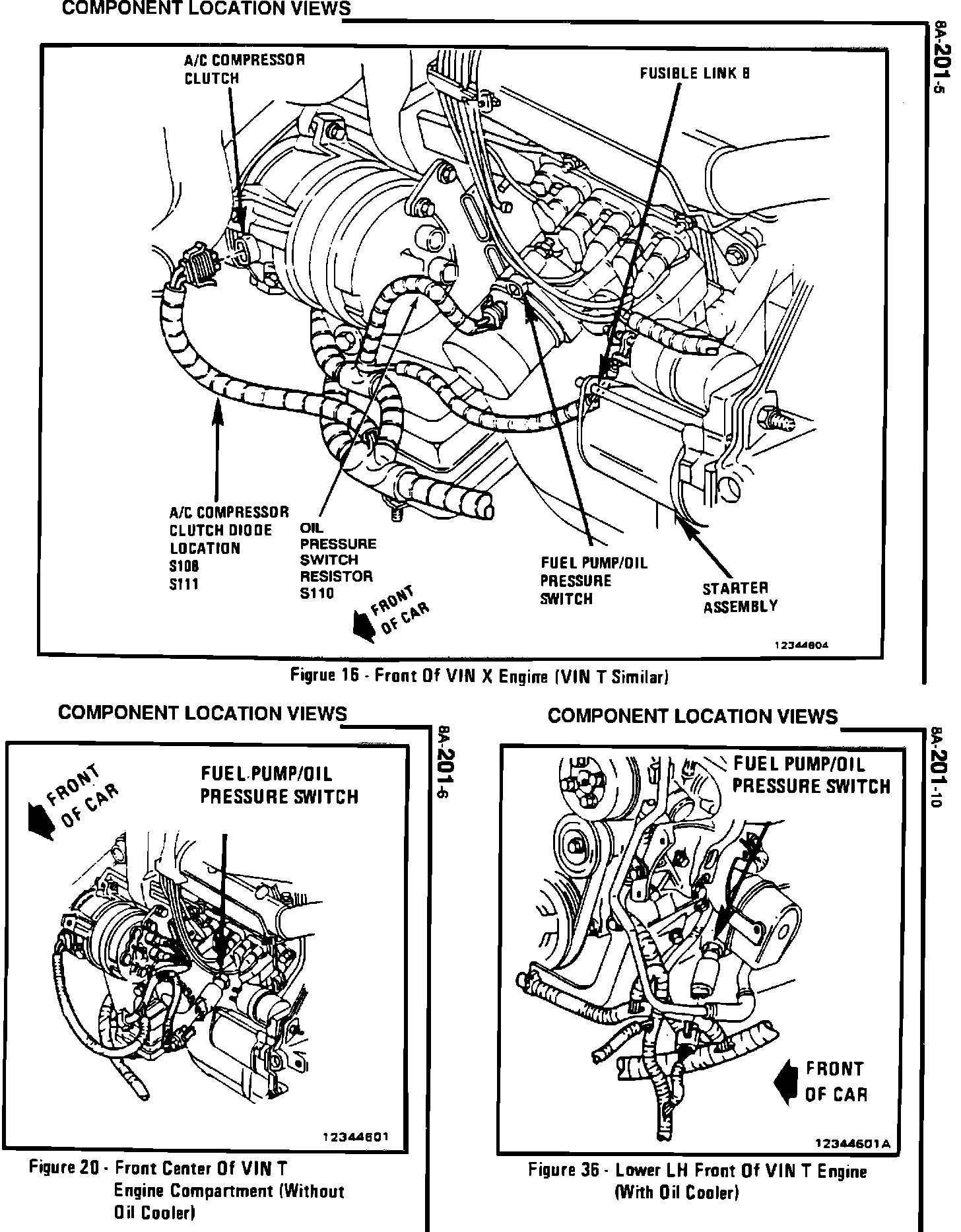

Component Location Views
