Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Electronic Fuse
Electronic Fuse

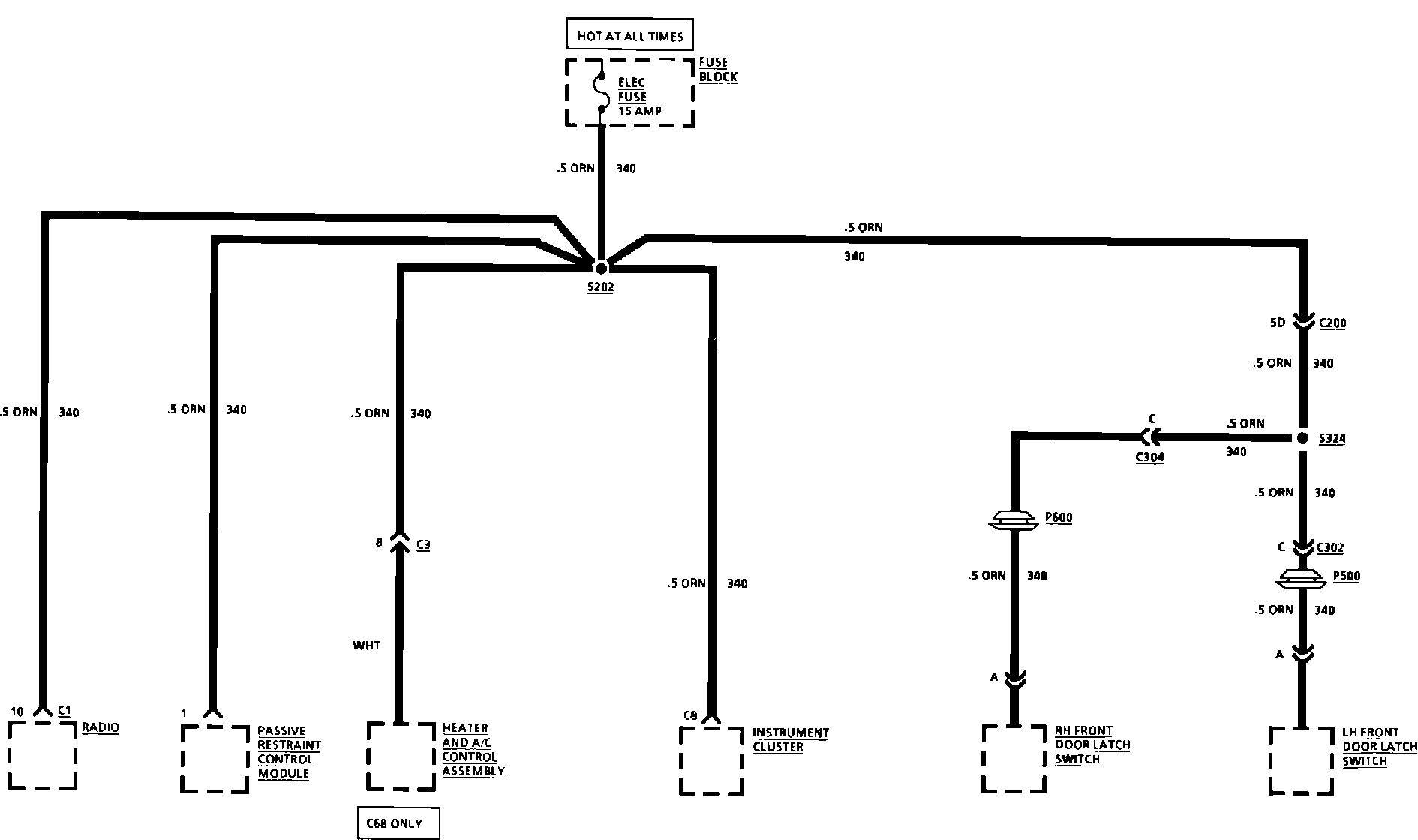

Fuse Block Details: Elec Fuse:
