Home >> Oldsmobile >> 1992 >> Cutlass Supreme FWD V6-189 3.1L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> CLUST and Panel Fuses

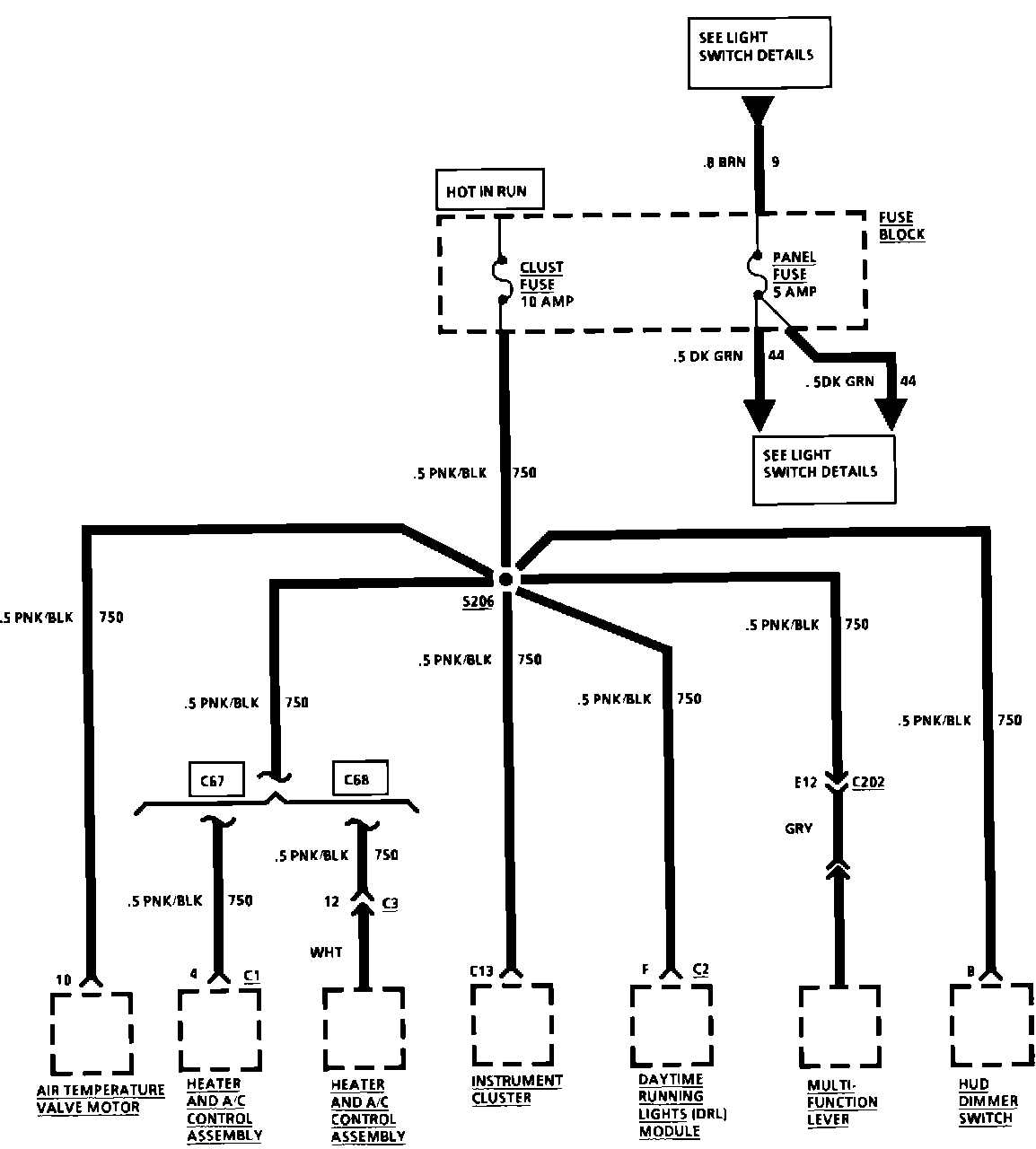

CLUST and Panel Fuses

Fuse Block Details: Clust And Panel Fuses:
