Oldsmobile
>>
1992
>>
Cutlass Supreme FWD V6-189 3.1L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Circuit Breaker
>>
Diagrams
>>
Electrical Diagrams
>>

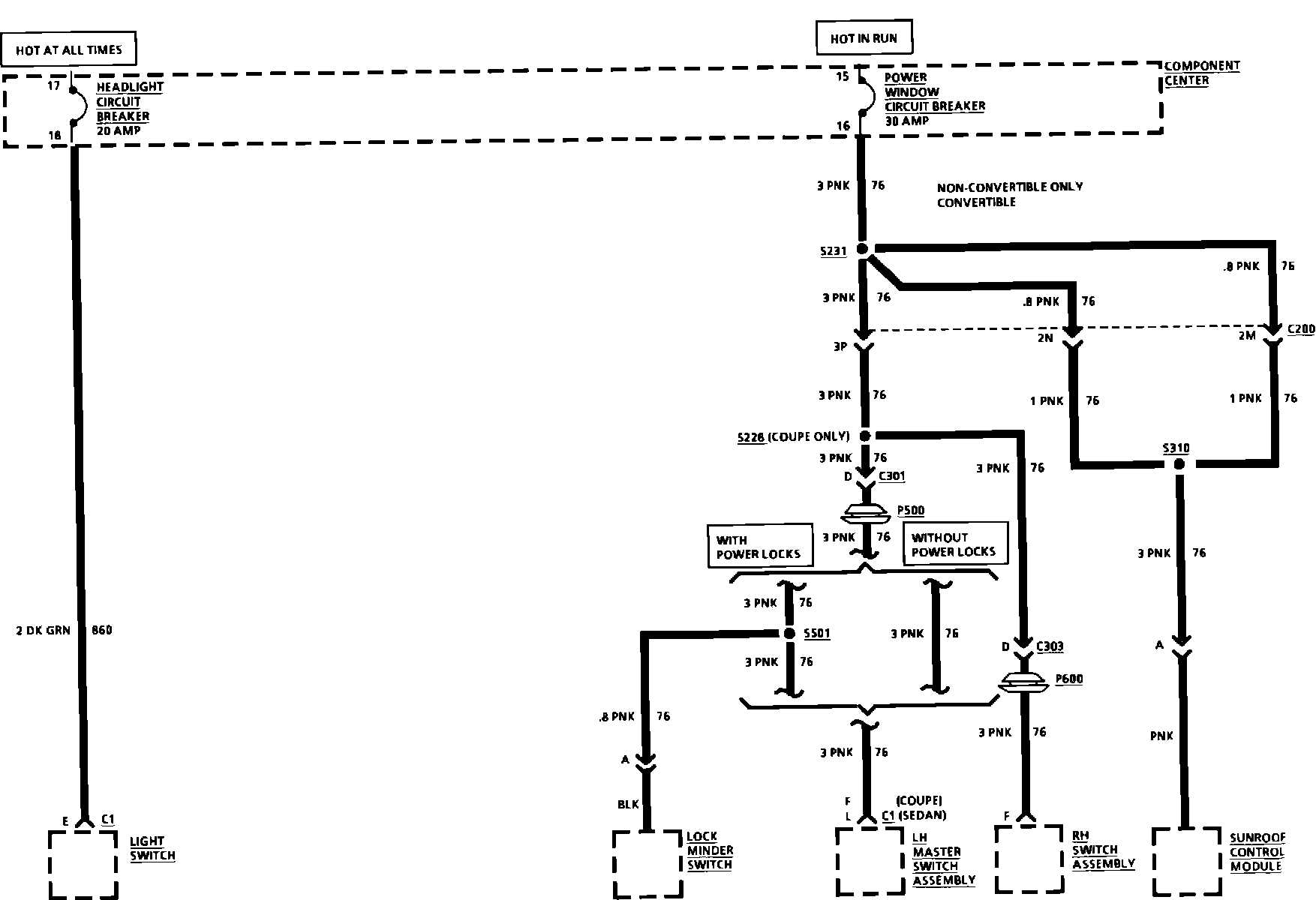

Headlight, PWR Window
Headlight, PWR Window
Fuse Block Details: Component Center:
