Home >> Oldsmobile >> 1992 >> Cutlass Supreme FWD V6-189 3.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> System Diagram >> Enhanced Performance Speaker Option

Enhanced Performance Speaker Option

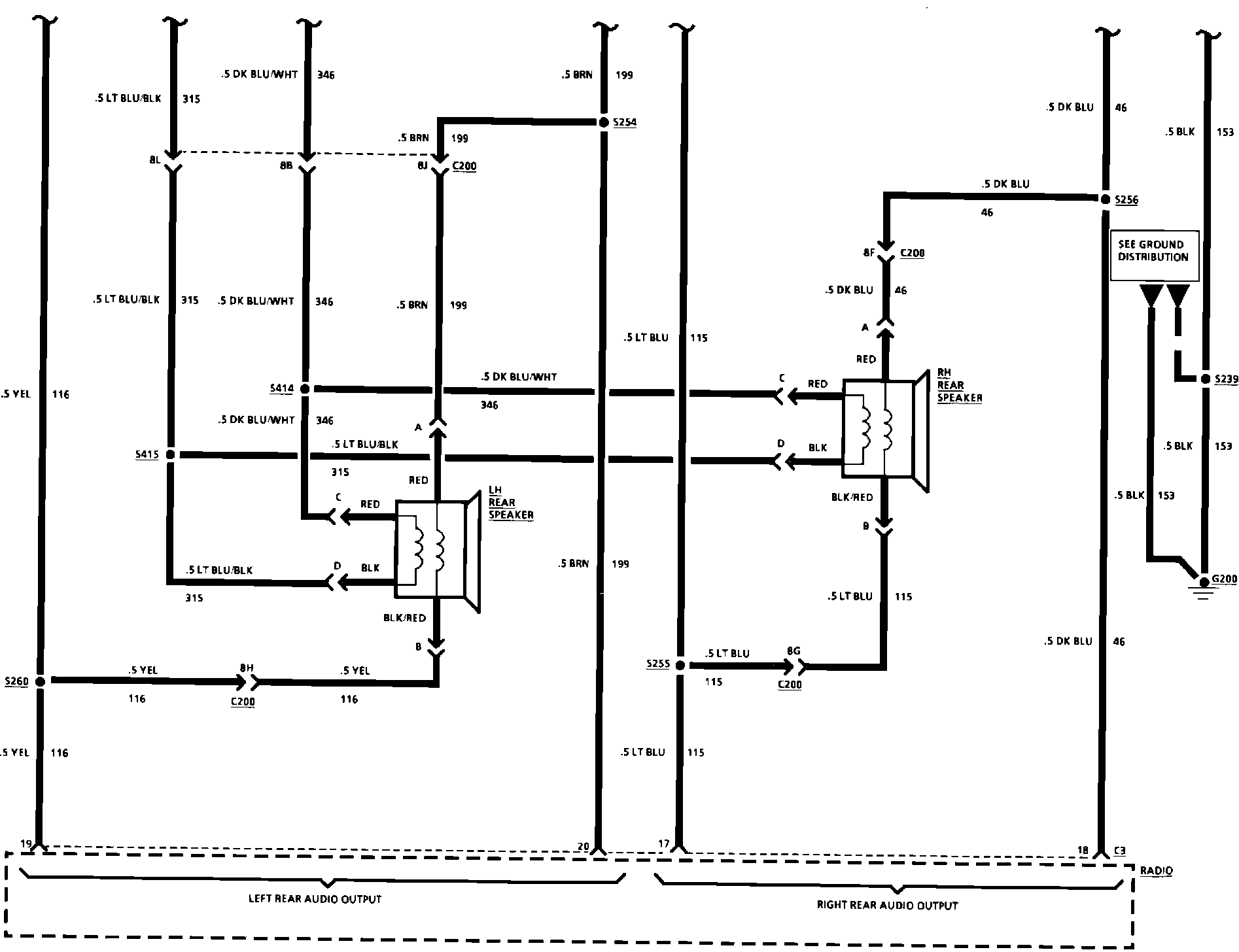

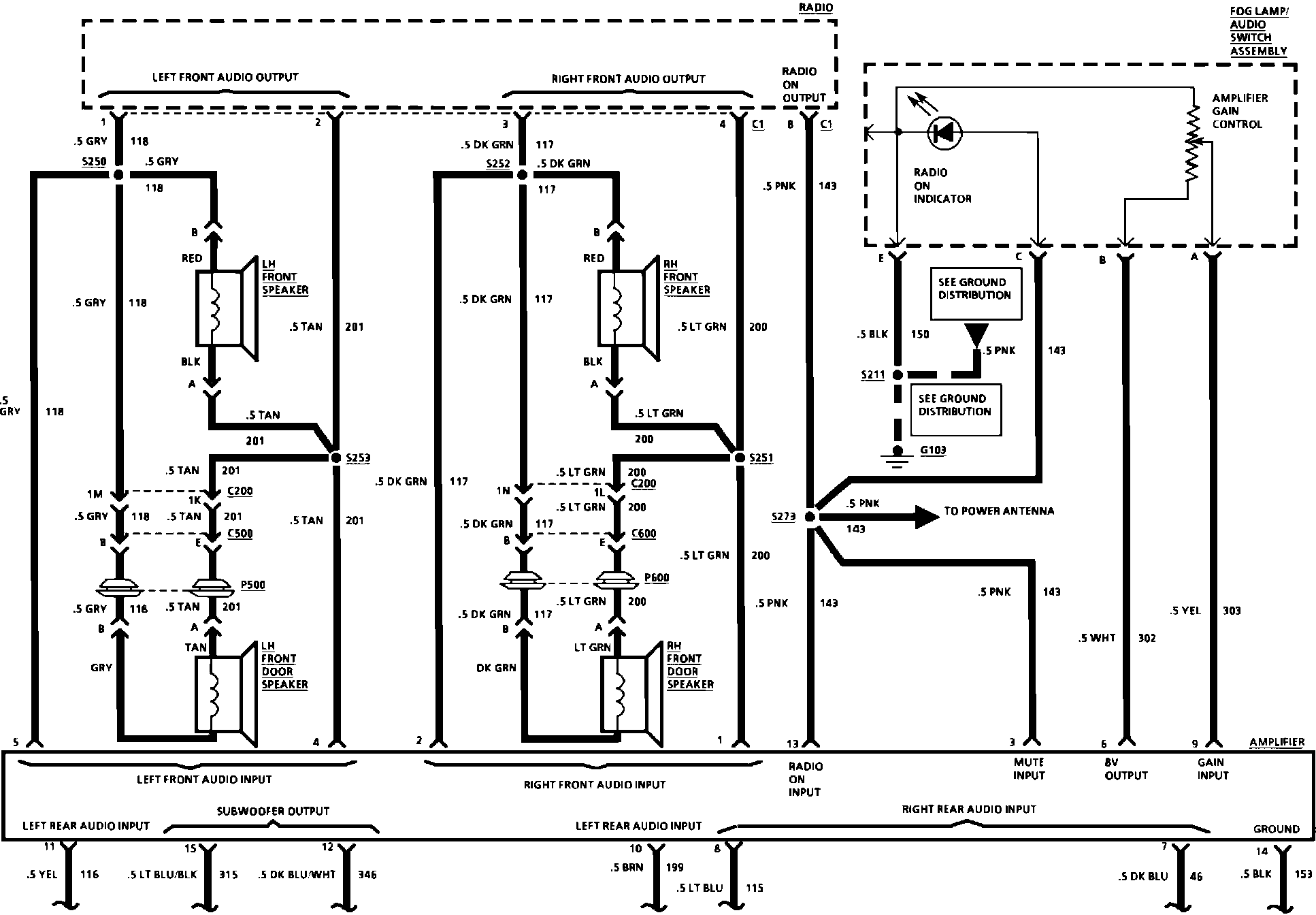

Radio: Performance Enhanced Speaker Option:



Radio: Performance Enhanced Speaker Option:
