Home
>>
Oldsmobile
>>
1992
>>
Cutlass Supreme FWD V6-189 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
With Automatic Control Air Conditioning (C68)
>>

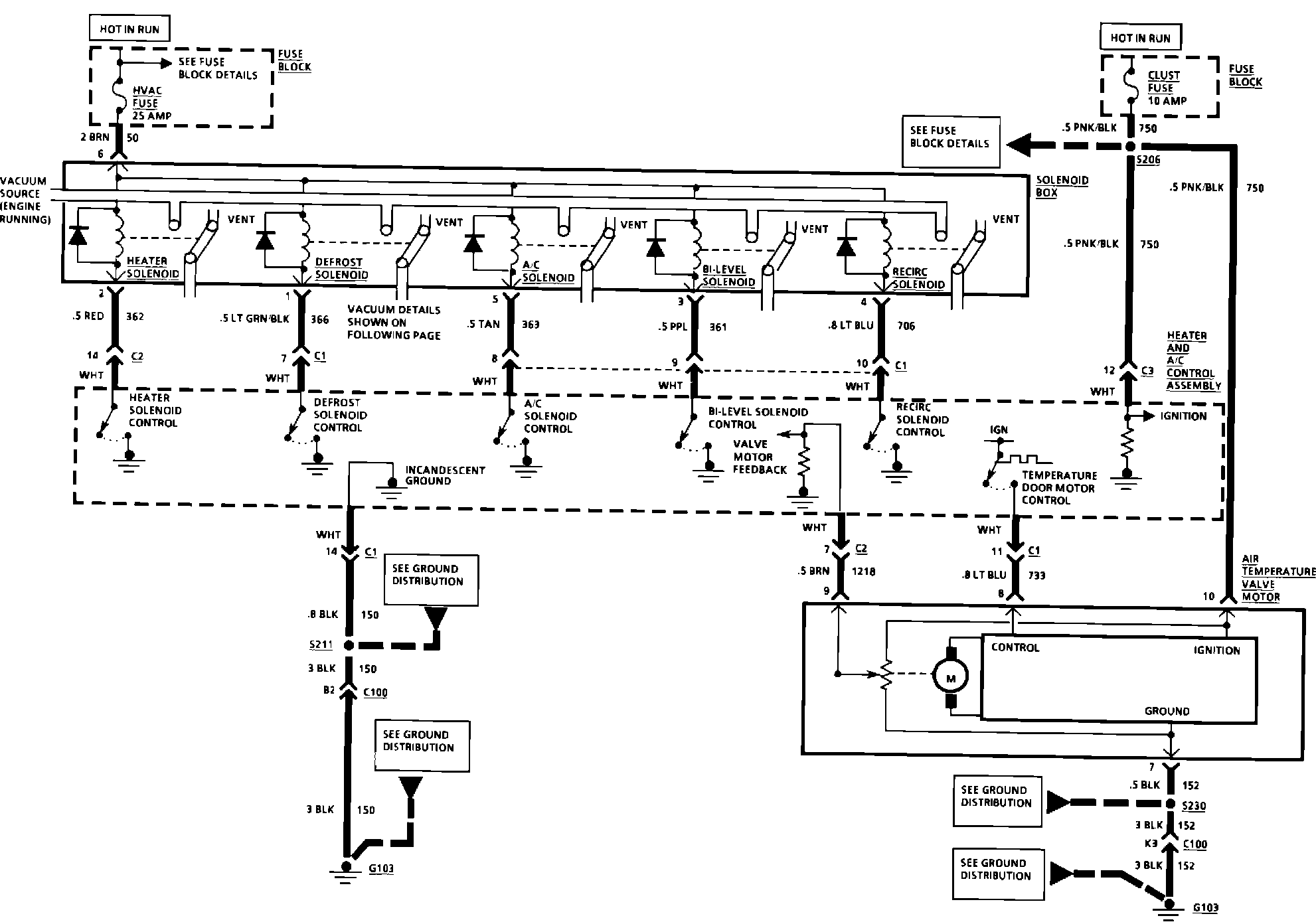

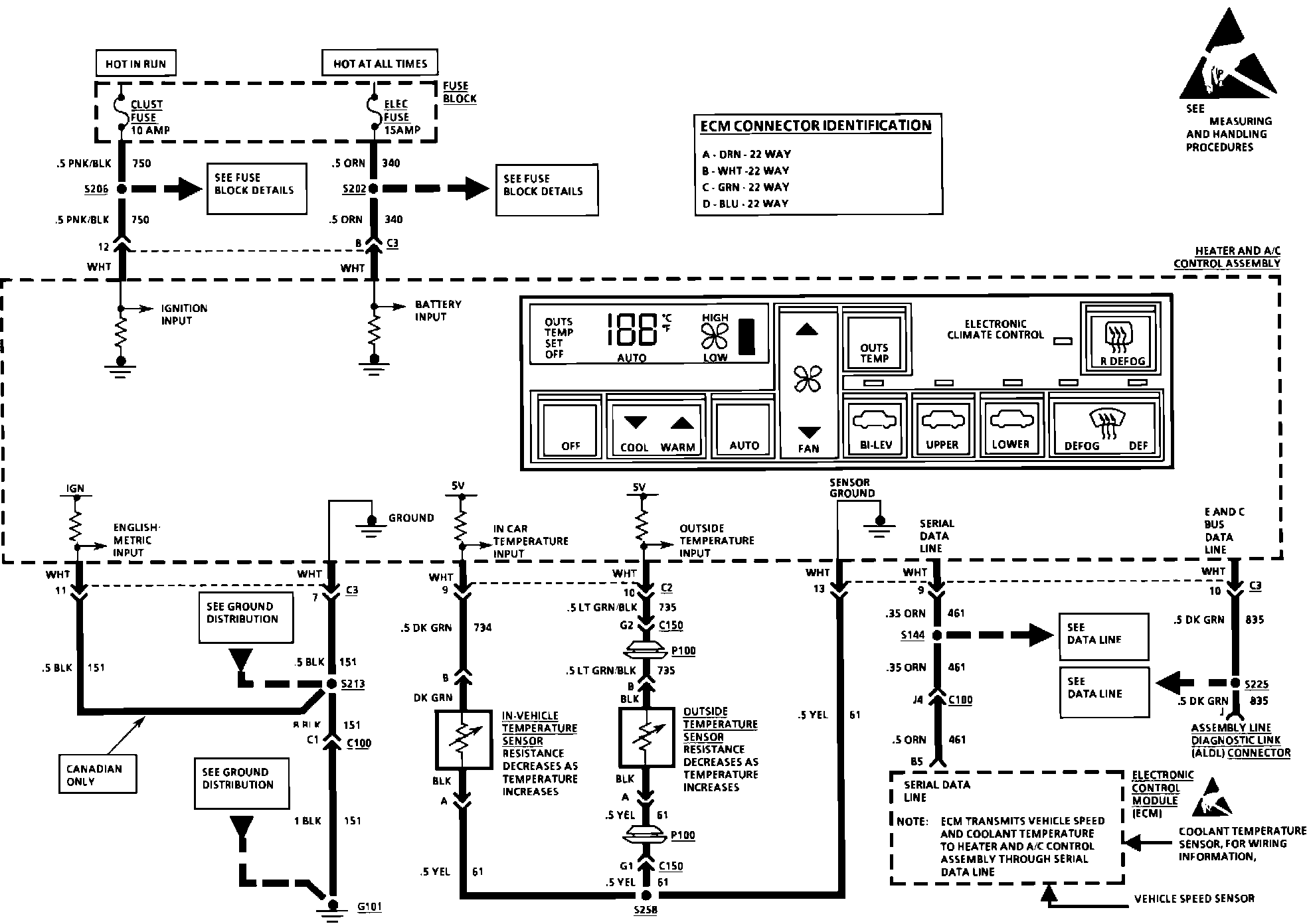

Air Delivery and Temperature Controls
Air Delivery and Temperature Controls
A/C: Air Delivery And Temperature Controls:
A/C: Air Delivery And Temperature Controls:
