Home >> Oldsmobile >> 1992 >> Cutlass Supreme FWD V6-189 3.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Blower Motor >> With A/C >> Less Automatic Controls

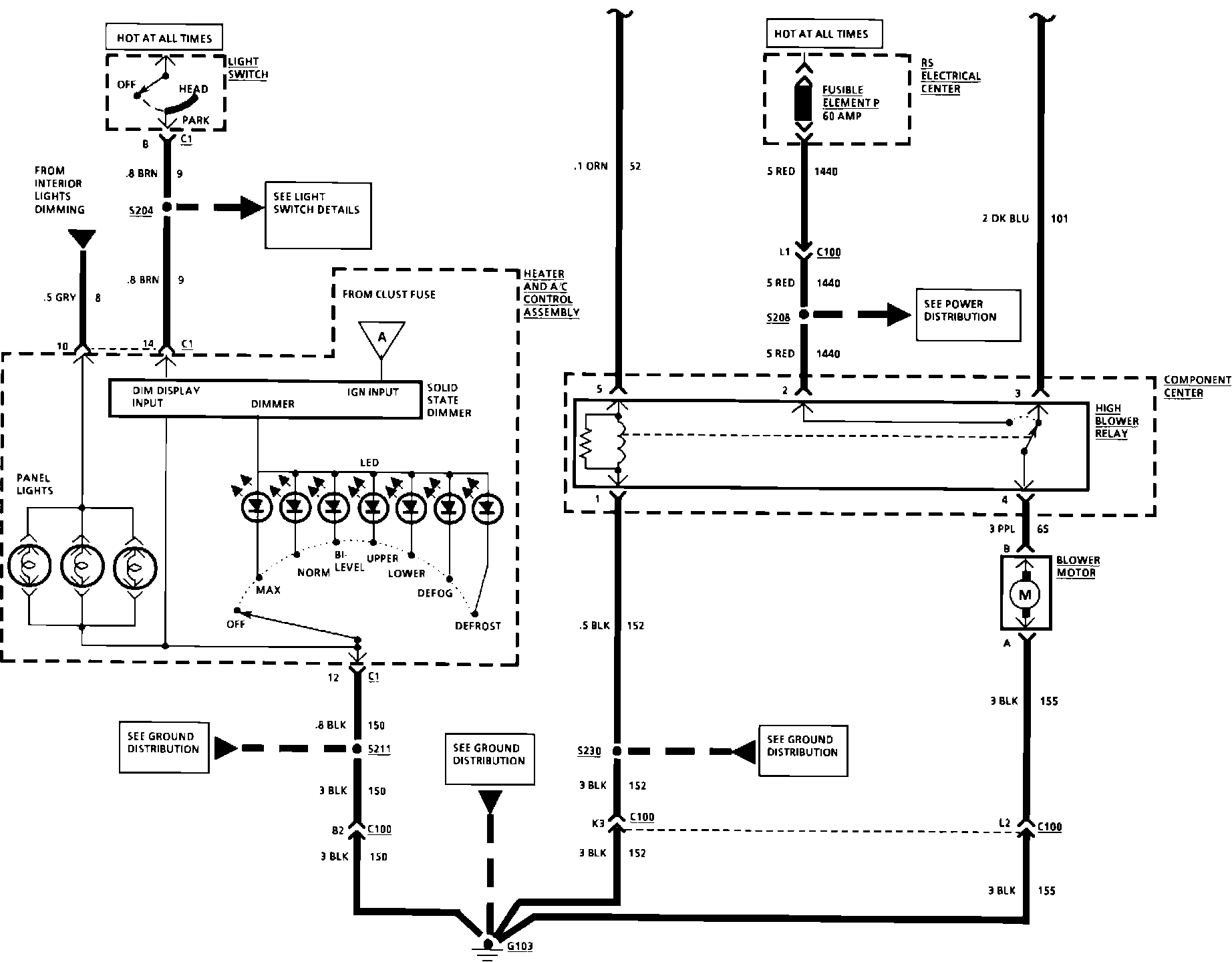

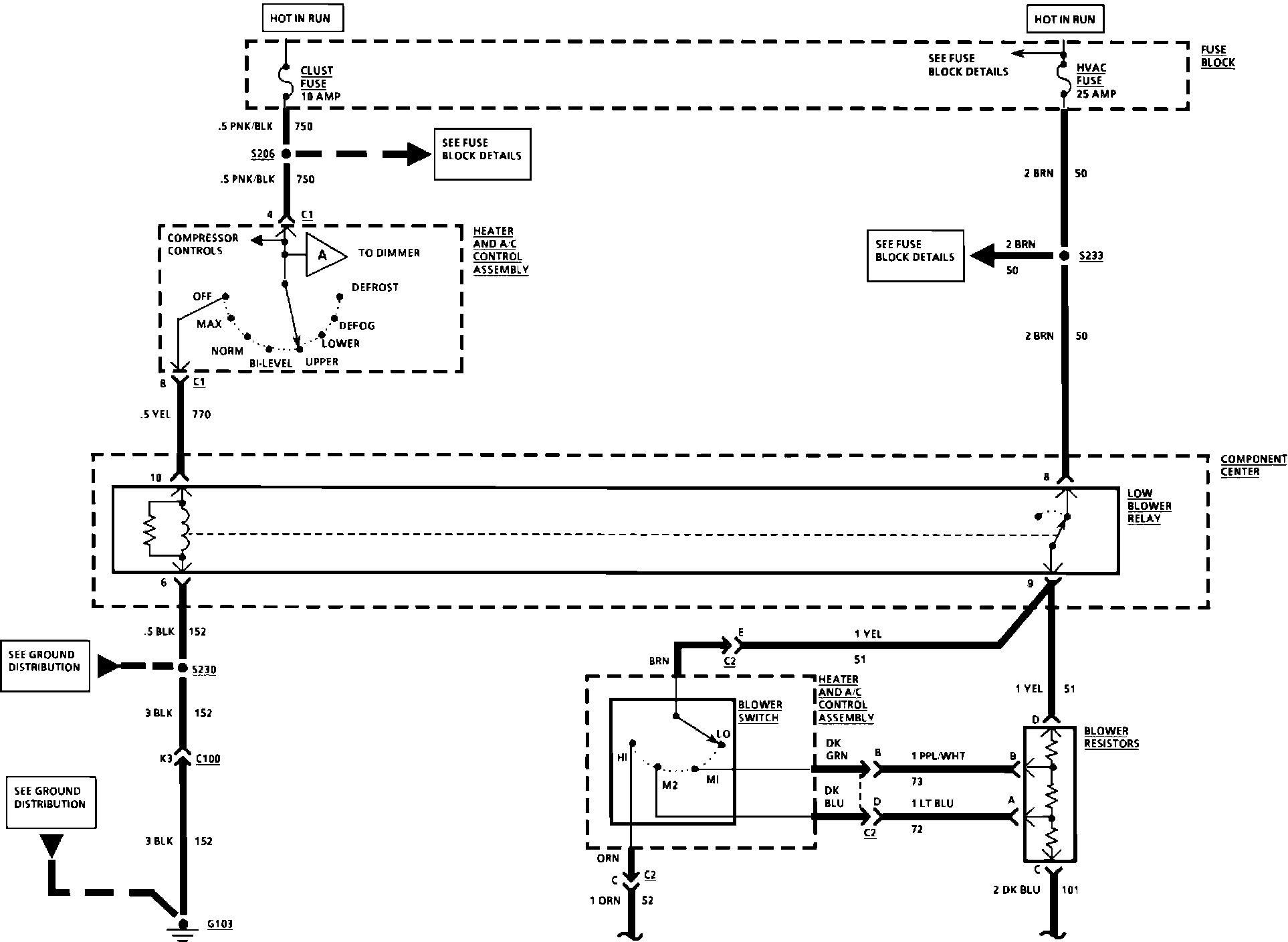

Less Automatic Controls

A/C: Blower Controls:



A/C: Blower Controls:
