Cutlass Supreme FWD V6-189 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Solenoid
>>
LH Seat Solenoid Valve Assembly
LH Seat Solenoid Valve Assembly

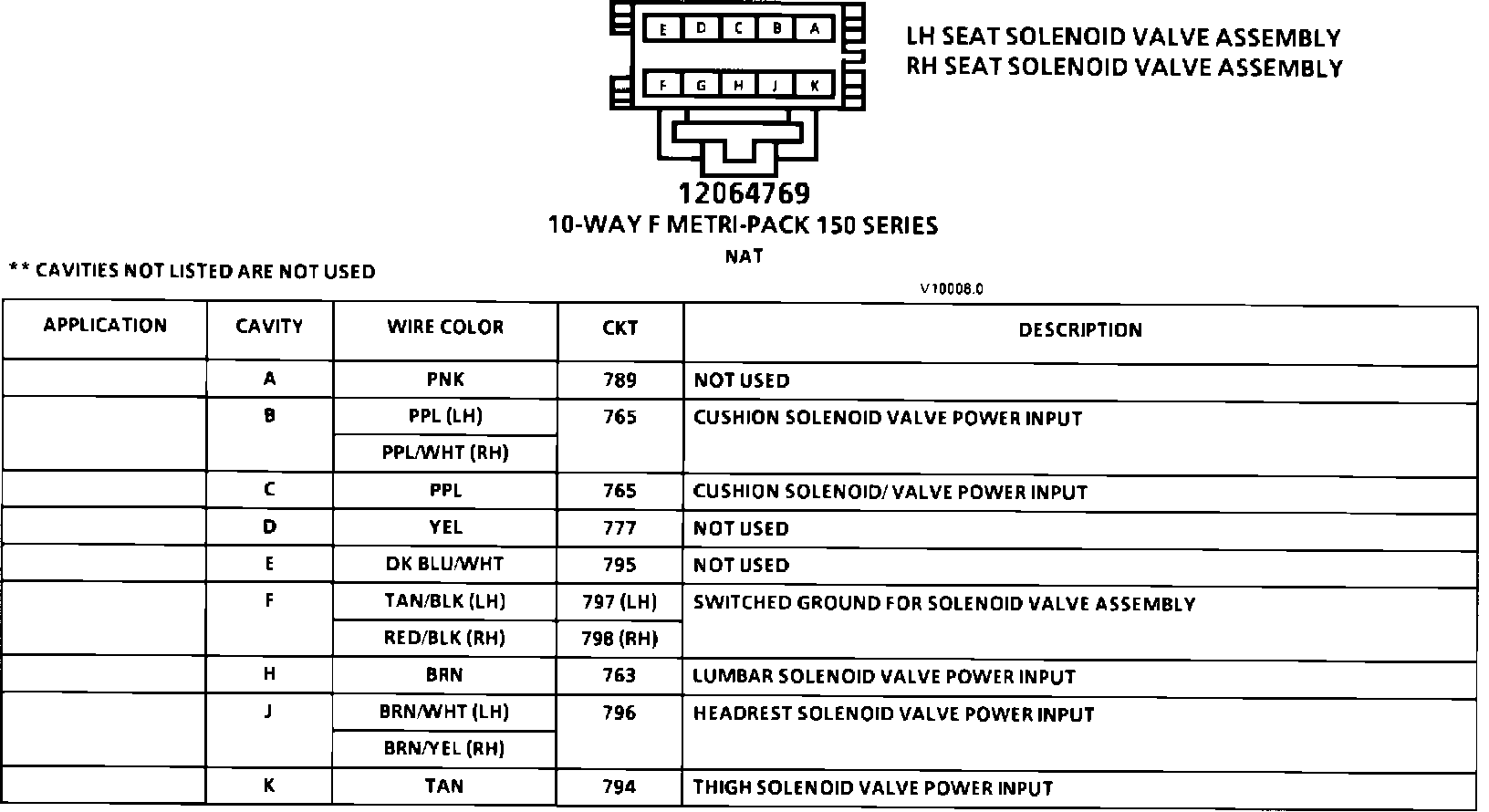

LH & RH Seat Solenoid Valve Assembly Connector Face:
