Sedan

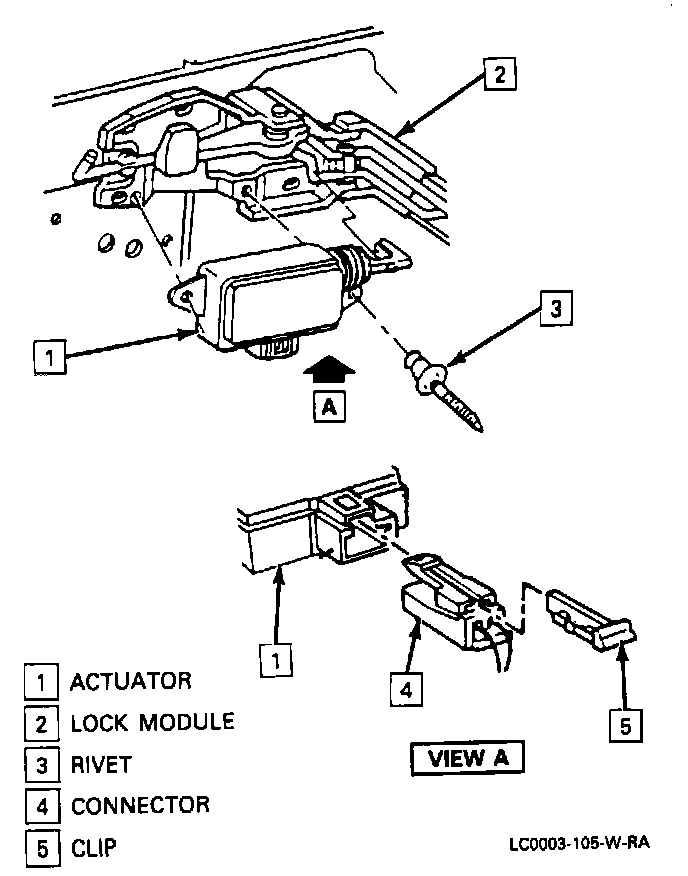

Power Lock Actuator:

The optional power door lock system has a motor actuator in each door which actuates the lock through a linkage. The system is actuated by a control switch on each front door. All doors lock and unlock at the same time from any control switch or manually from each door in the conventional manner. Each actuator has an internal circuit breaker which may require one to three minutes to reset.

Remove or Disconnect

1. Door trim panel.
2. Water deflector.
3. Rivets by punching out mandrel, then using a 4.8 mm (3/16 inch drill bit.
4. Clip and electrical connector.
5. Actuator by disengaging from rod.

Install or Connect

1. Actuator to rod.
2. Electrical connector and clip.
3. Rivets using 3/16 inch x 1/4 inch peel type rivets.

Inspect
^ For proper operation by cycling system.

4. Water deflector.
5. Door trim panel.
