Home >> Oldsmobile >> 1992 >> Cutlass Ciera Cruiser V6-3300 3.3L >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Diagnostic Charts >> Without Pulse >> Test D: Wiper Motor Assembly Current Draw Test

Test D: Wiper Motor Assembly Current Draw Test

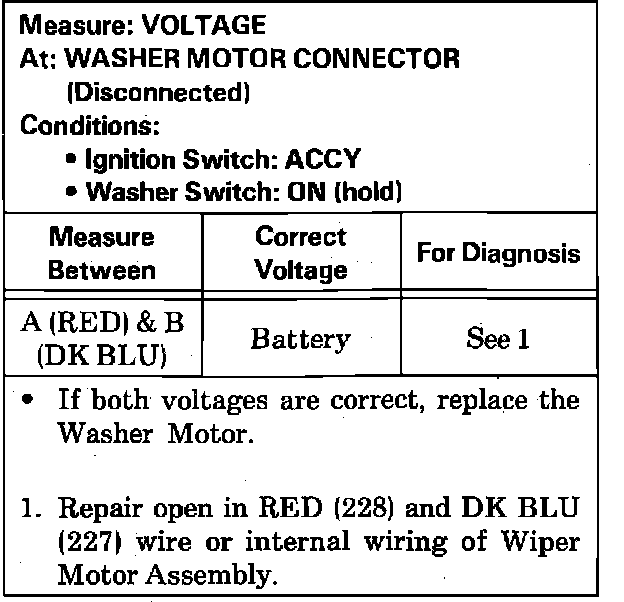

Test D: Washer Motor Voltage Test (Table 1):

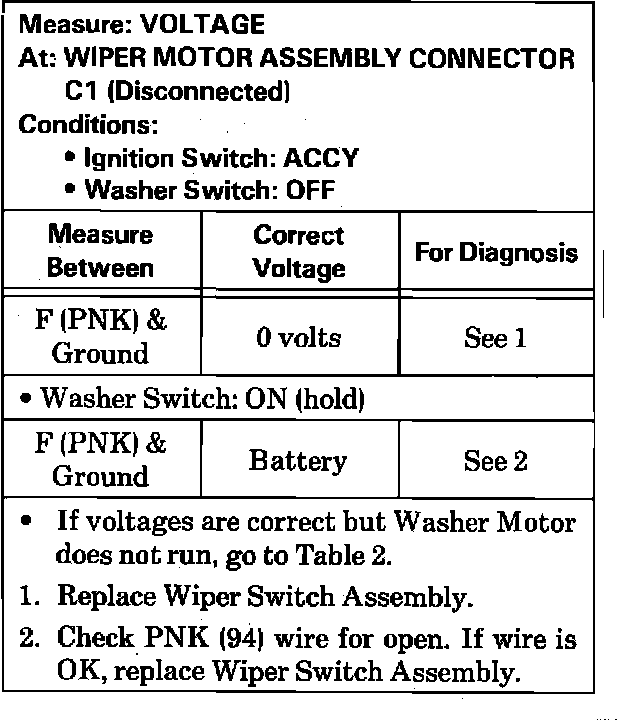

Test D: Washer Motor Voltage Test (Table 2):
