A/C - Moan, Growl, or Vibration

9230oldsmobile01

NUMBER:
92-T-74

CORP. REF. NO:
231201

DATE:
April 1992

SECTION:
1


SUBJECT
AIR CONDITIONING MOAN, GROWL, OR VIBRATION ADD BRACE, CHANGE REFRIGERANT CHARGE


MODEL/YEARS
1989-92 CUTLASS CIERA WITH 3300 (VIN N)


CONDITION:
Some 1989-92 Cutlass Cieras with 3300 (VIN N) engines may exhibit a moan, growl or vibration when operating with the air conditioning on.

CAUSE:
May be one or more of the following:

1. Pressure pulses in the A/C hose.
2. "Ground outs" of system components.
3. Exhaust system vibrations.
4. Over-charge of refrigerant.

CORRECTION:
This condition may be improved by using the following service parts and procedure, along with the parts and procedure covered in Dealer Technical Bulletin 92-T-25 concerning Exhaust System Damping. If the procedure in 92-T-25 has not been performed, it should be before continuing with the following procedure.

The following parts are currently available from GMSPO.

Qty. Part No. Part Name
1 10213676 Bracket and Clamp Asm.
1 11502670 Bolt
*1 10137383 Damper-Exhaust System



* Refer to Dealer Technical Bulletin 92-T-25.


1. Align the vehicle on a hoist (to be raised later) and raise hood to the full open position.
Note:
If the vehicle is 1992 model, or is a 1991 model with 2.375 lb. charge, skip Steps 2 And 14. Check the blue label on the compressor to verify the charge. All 1992 vehicles are built with 2.375 Lb. A/C charge.

2. Discharge the A/C system using the normal recovery method.

While Discharge/Recovery Is Taking Place

3. Remove the upper radiator mounting panel, which requires the following:
^ Disconnect upper engine strut from radiator tie bar.
^ Disconnect upper cooling fan attaching bolts.

4. Looking down between the radiator and condenser, inspect the back side of the condenser for contact with the radiator cross braces, and CAREFULLY bend braces rearward for clearance in contact areas.

5. Raise the vehicle on the hoist.

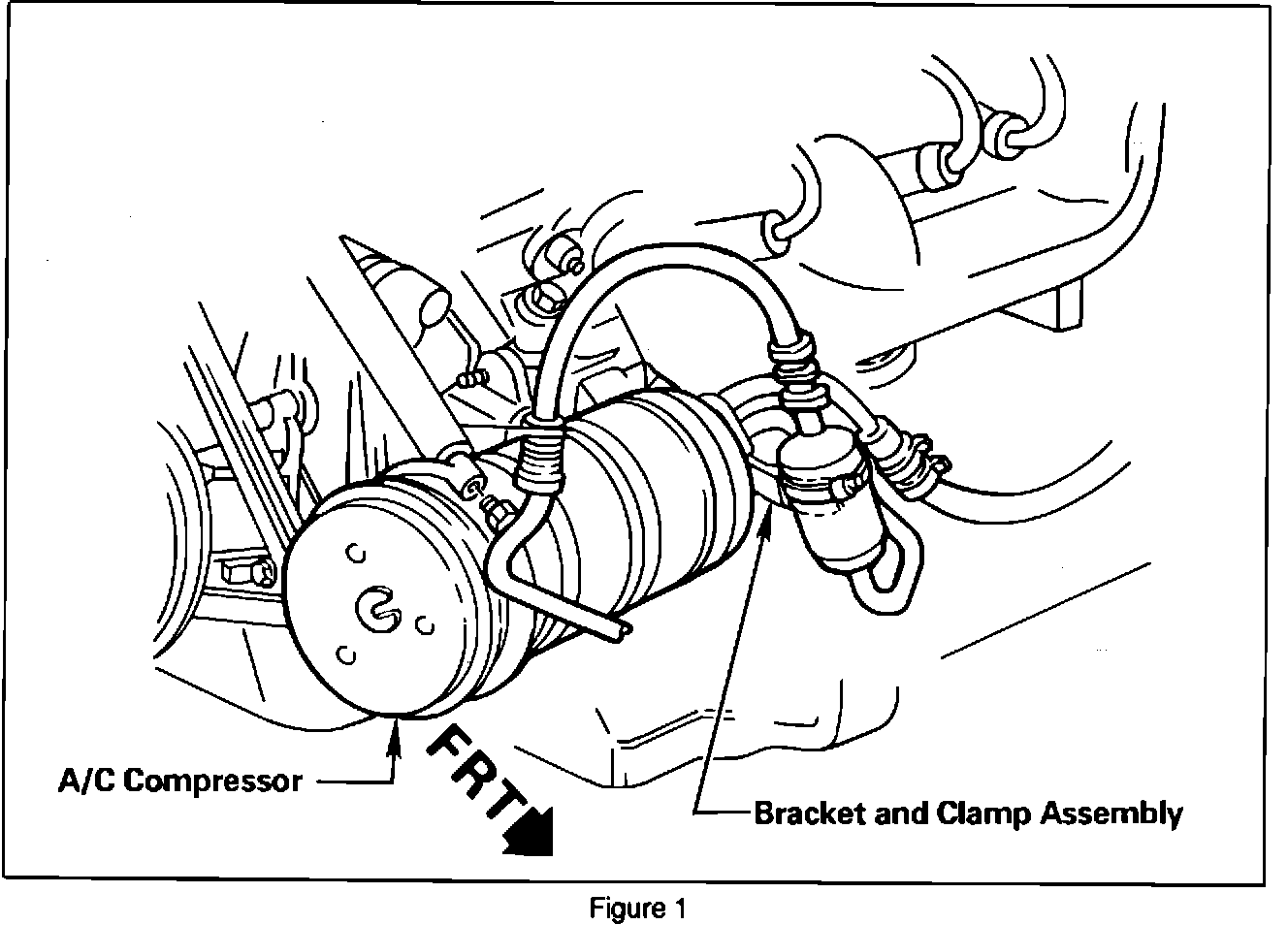

6. Separate the new bracket and clamp assembly and install the bracket to the A/C compressor snugly, but not tight, with the service bolt. See Figure 1. Install the clamp through the bracket and around the muffler. Tighten the clamp, and the bracket bolt to the compressor.

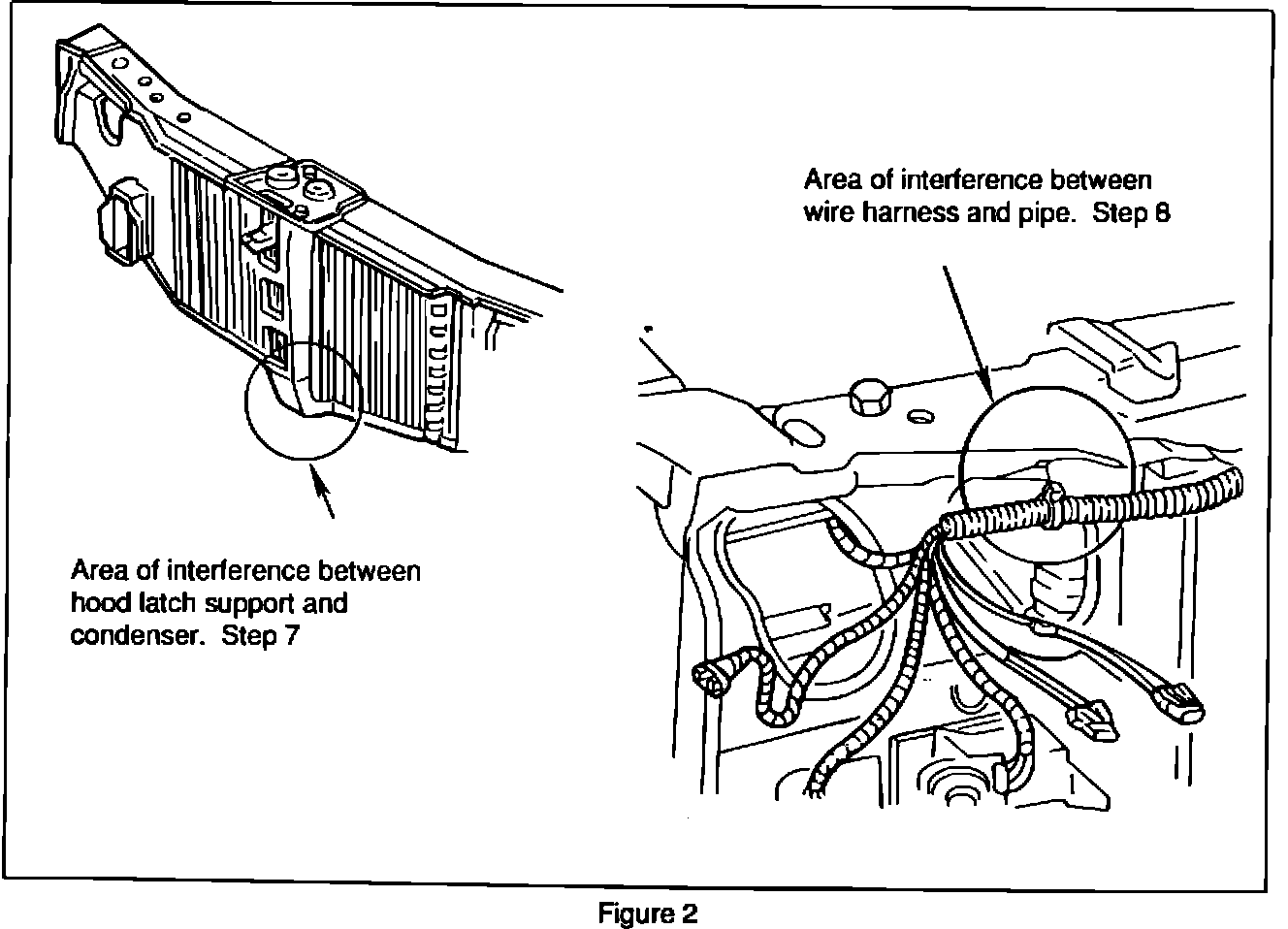

7. Inspect the condenser for contact marks at the lower front edge (center) from the hood latch support and carefully bend the condenser fins in the contact area to provide clearance (See Figure 2).

8. Reposition the wiring harness (clip located on the upper right area of the radiator support), by removing the conduit from the rosebud clip and letting the harness hang free, to provide harness clearance to condenser pipe (See Figure 2).

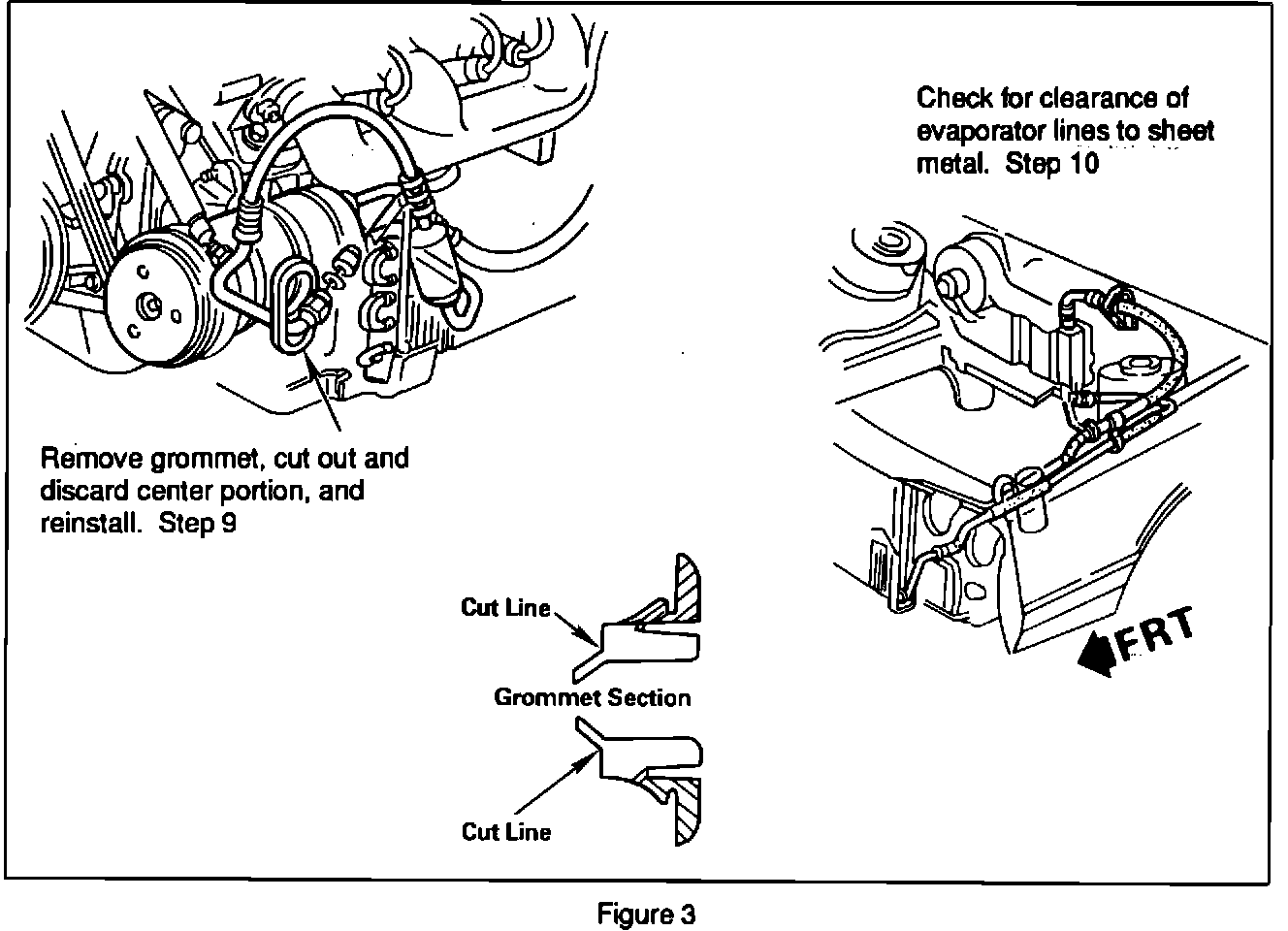

9. Remove the grommet from the right side radiator support, cut out the center of the grommet and discard, and reinstall the grommet (See Figure 3).

10. Inspect the condenser pipes and lines to insure there is no contact to sheet metal or structure (See Figure 3).

11. Lower the vehicle.

12. Inspect the remainder of the A/C system components for contact to sheet metal or body structure and provide clearances if necessary.

13. Reinstall the upper radiator mounting panel, engine strut and fan attaching bolts. Torque strut attachments to 23 N-m (17 Lbs.Ft.) and fan and panel attachments to 10 N-m (89 Lbs.In.)

14. Recharge A/C system to 2.375 Lbs. NOTE: DO NOT recharge A/C system to original specifications of 2.75 Lbs.

WARRANTY INFORMATION:
Labor Operation:
T1785
Labor Time:
1989 to 1991 with 2.75 Lb. Charge 1.5 hours
1991 to 1992 with 2.375 Lb. Charge 0.8 hours
Trouble Code:
92

Note:
Add 0.3 hour straight time if it was necessary to install the Damper Exhaust System.
