Curiosii for ever!: Car repair manuals for everyone.

Home >> Oldsmobile >> 1992 >> Cutlass Ciera Cruiser V6-3300 3.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Courtesy Fuse

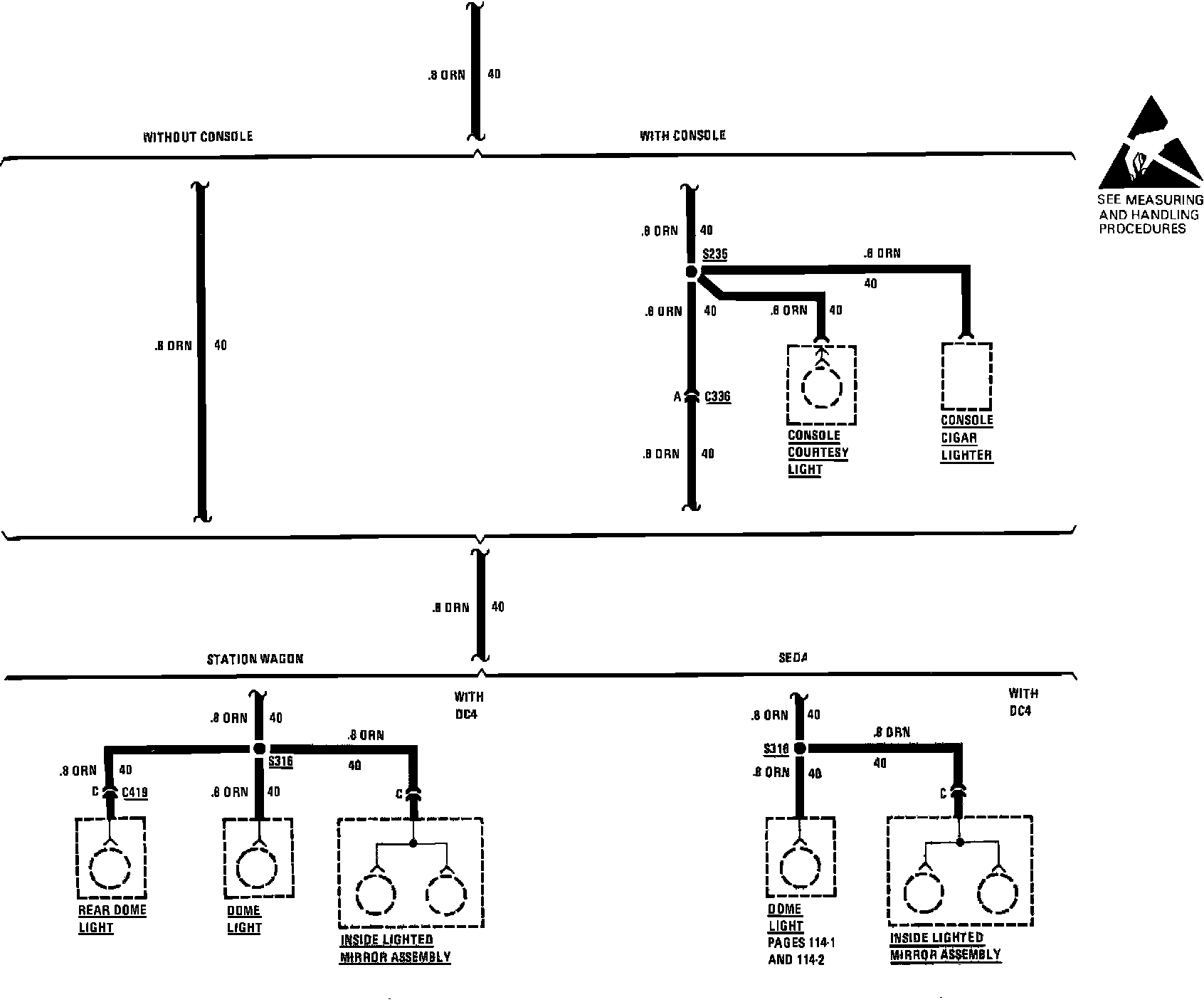

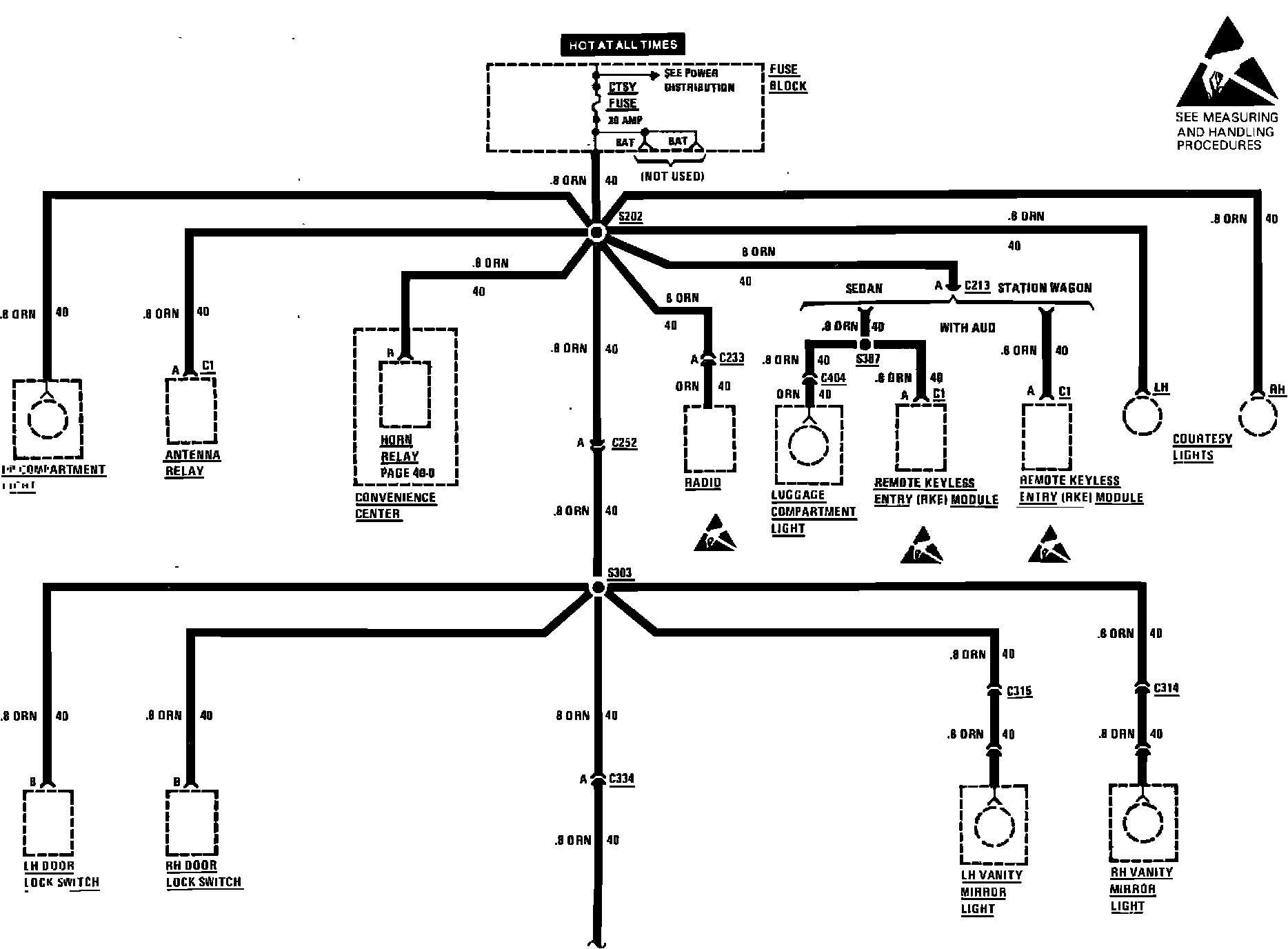

Courtesy Fuse

Fuse Block Details: Courtesy Fuse:

Fuse Block Details: Courtesy Fuse:
