Home >> Oldsmobile >> 1992 >> Cutlass Ciera Cruiser V6-3300 3.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Compressor HVAC >> Part 1 of 3

Part 1 of 3

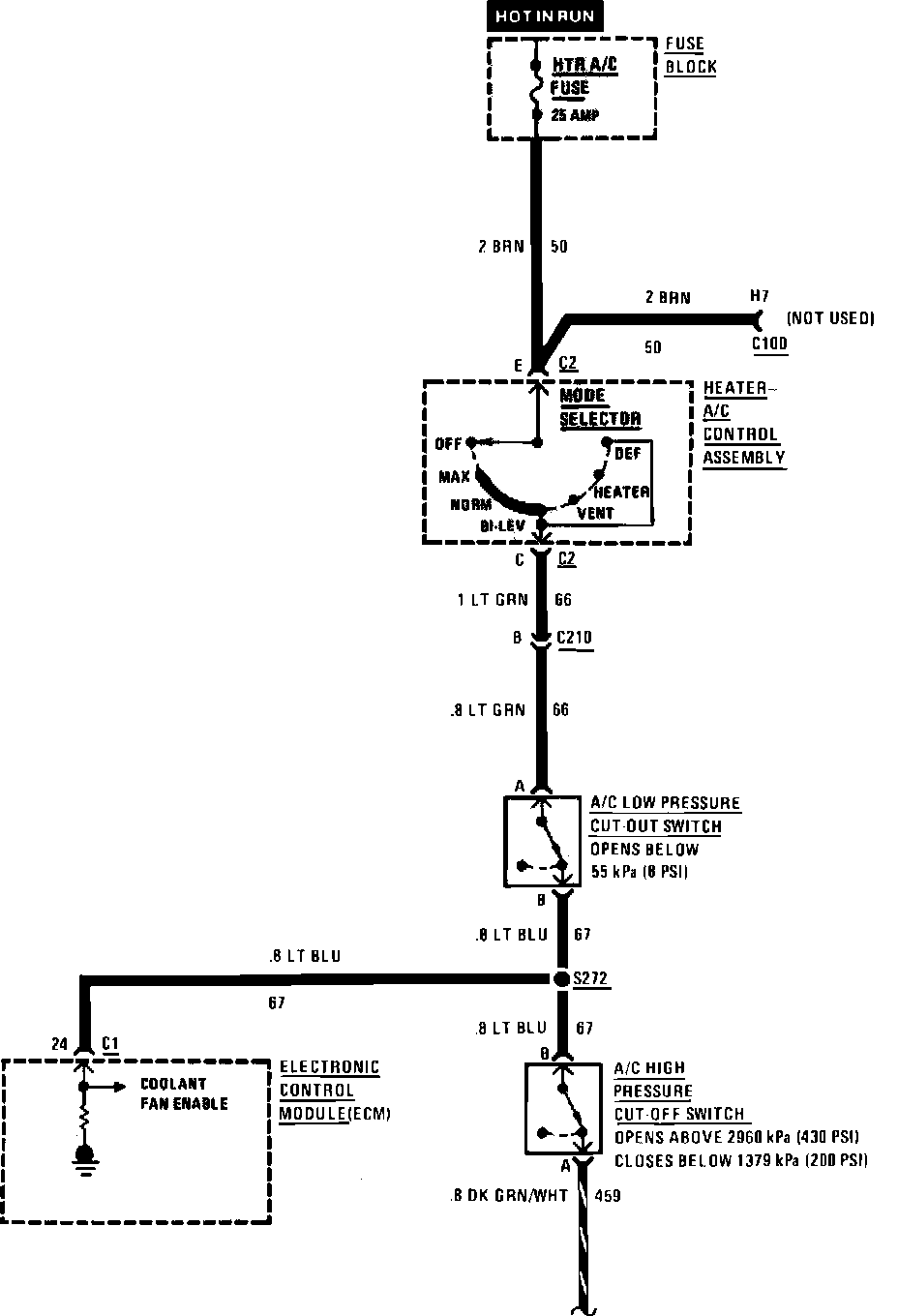

Air Conditioning. Compressor Controls:
