Cutlass Ciera Cruiser V6-3300 3.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module

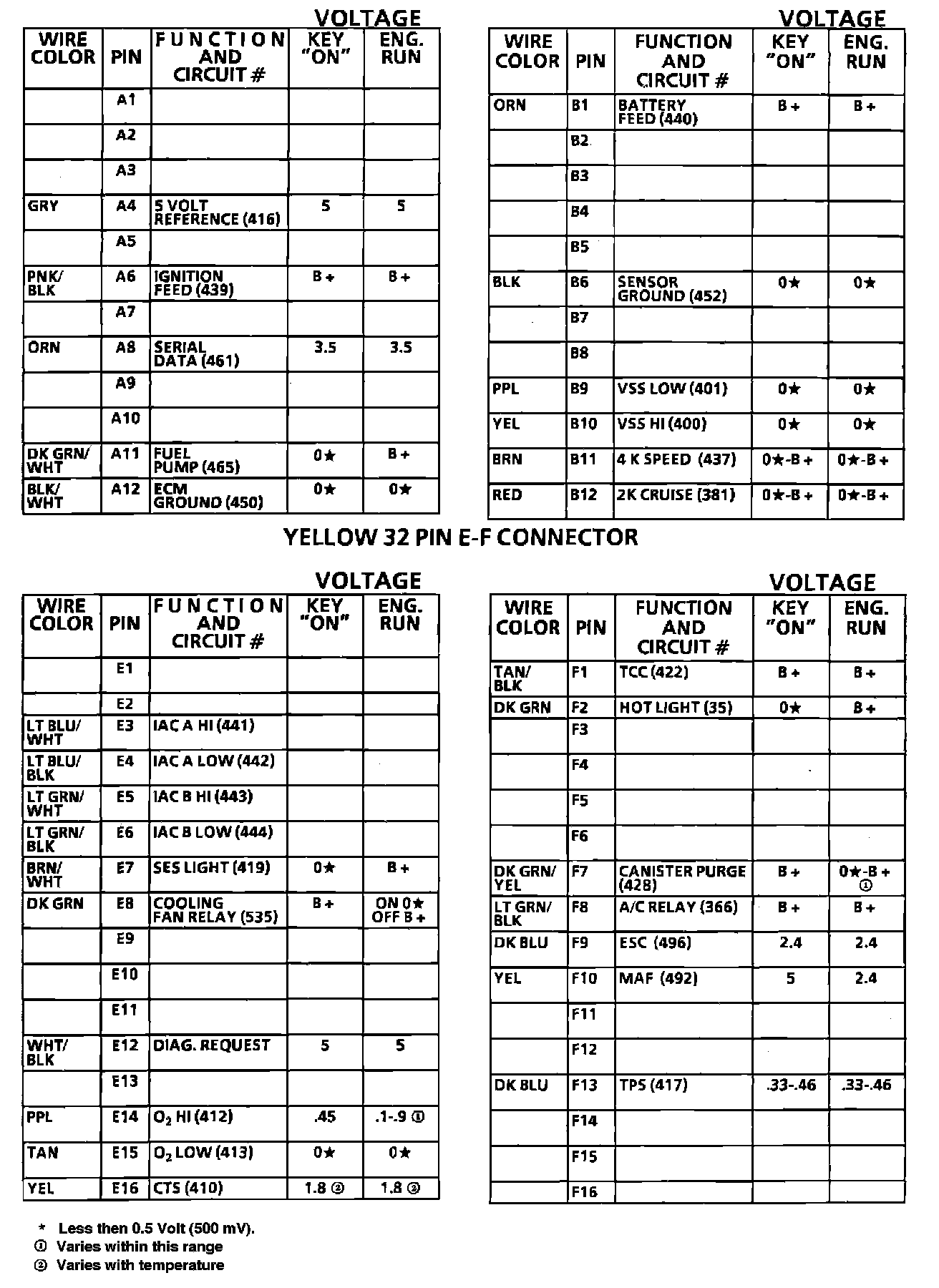

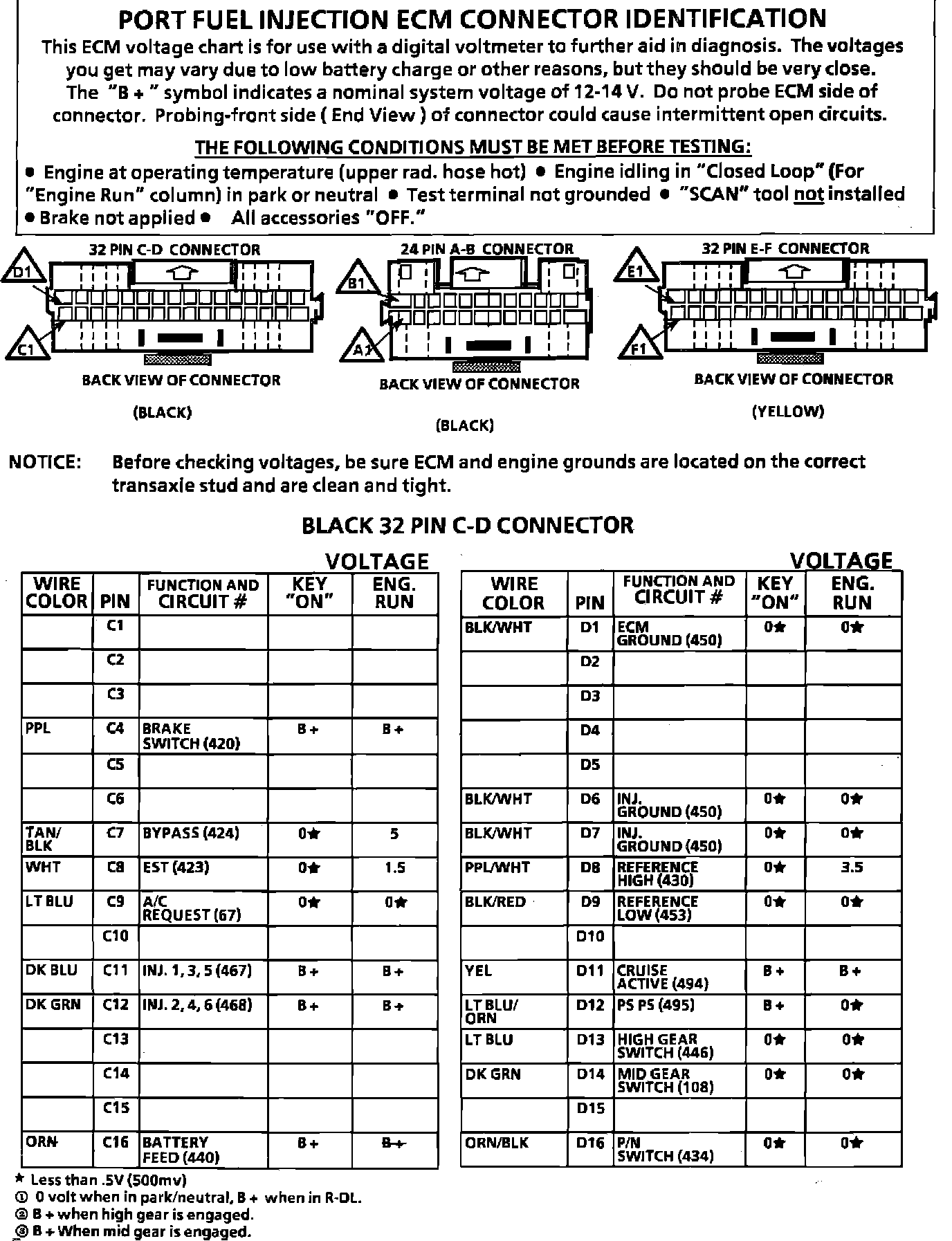

ECM Connector Pin-Out:
ECM Connector Pin-Out:
