Oldsmobile
>>
1992
>>
Custom Cruiser RWD V8-350 5.7L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Compressor HVAC
>>
Diagrams
>>
Electrical Diagrams
>>
Electronic
Electronic

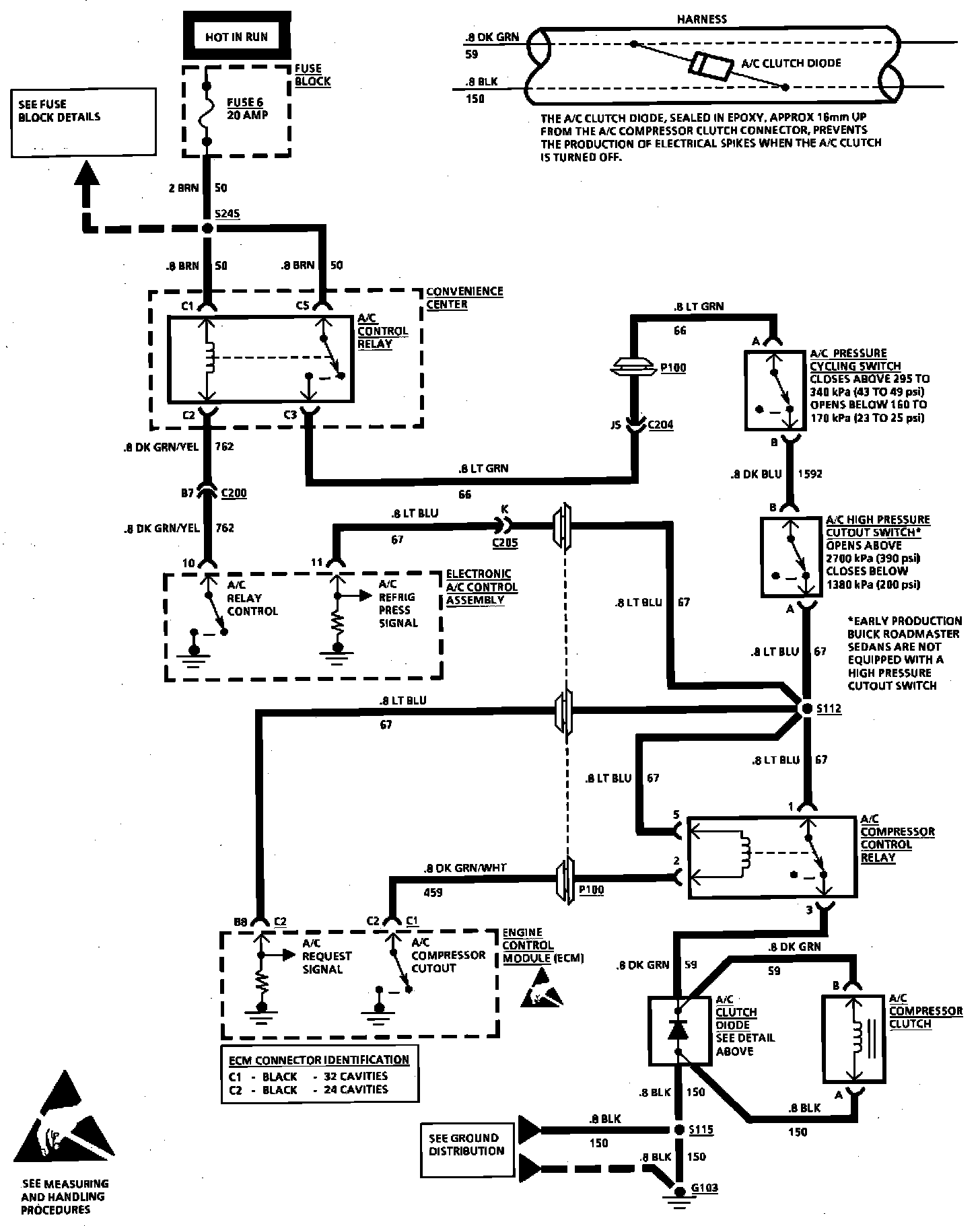

A/C Compressor Control (Electronic):
