Map Light
>>
Courtesy/Reading & Underhood
Courtesy/Reading & Underhood

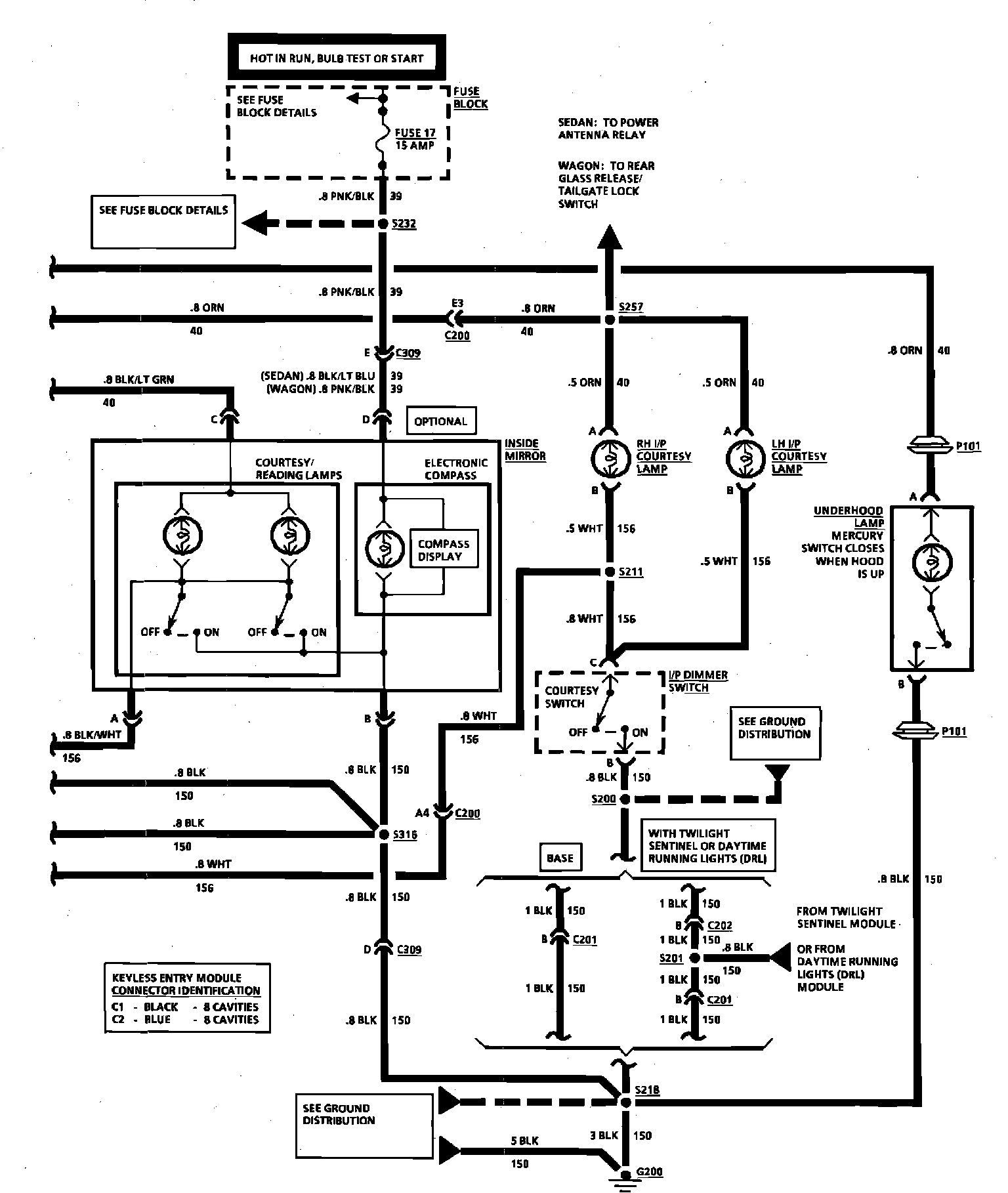

Interior Lamps (Courtesy/Reading & Underhood):
Interior Lamps (Courtesy/Reading & Underhood):
