Home >> Oldsmobile >> 1992 >> Achieva V6-3300 3.3L >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Mechanical/Electrical Wiper/Washer System Diagnosis >> Wiper Motor Terminal Check

Wiper Motor Terminal Check

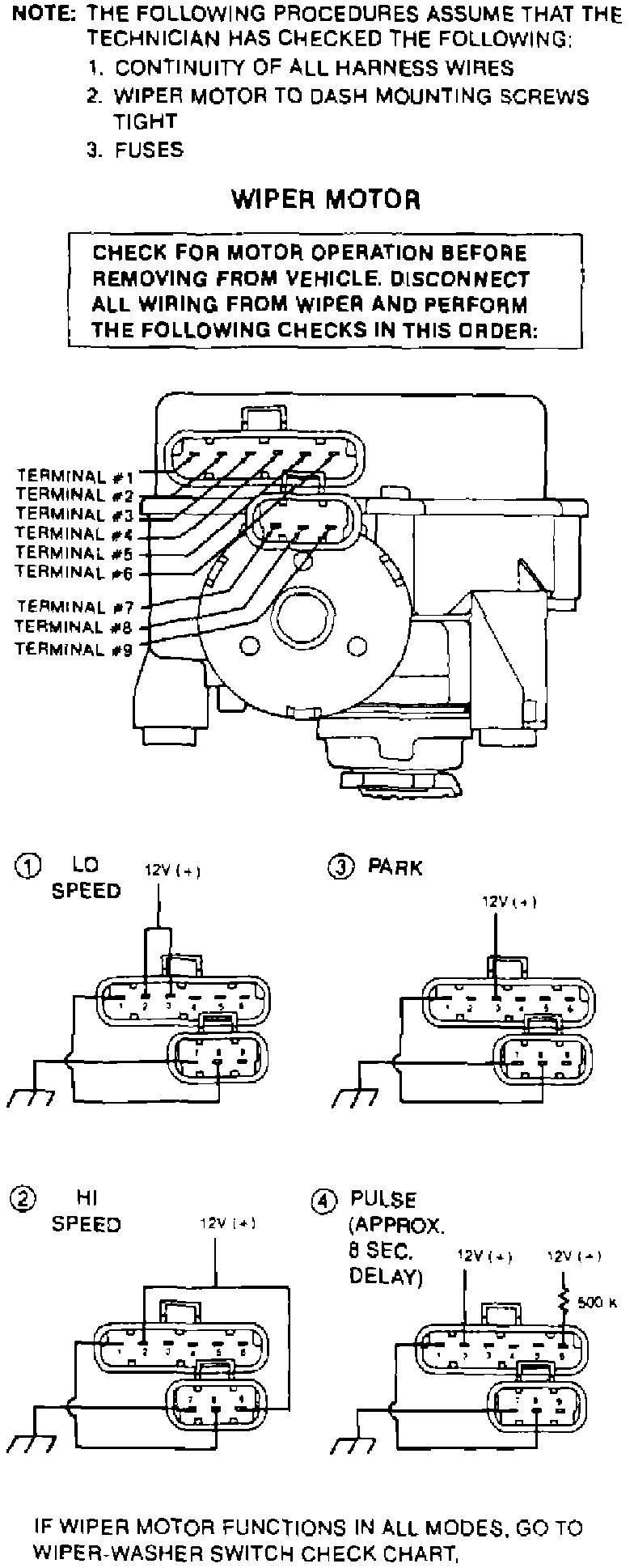

Fig. 3 Wiper Motor Terminal Check:
