Removal/Installation

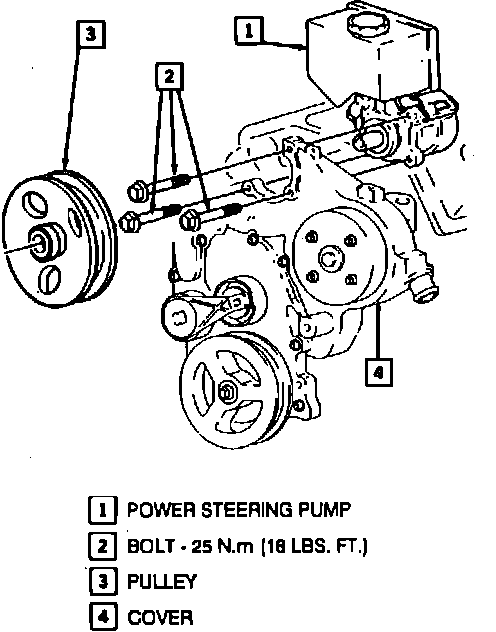

Fig. 20 Power Steering Pump Mounting. 3.3L/V6-204:

1. Remove drive belt.
2. Remove pump mounting bolts, Fig. 20.
3. Remove pump from mounting bracket.
4. Disconnect pressure and return lines from power steering pump, then remove pump. Allow fluid to drain into a suitable container.
5. Reverse procedure to install.
