Home >> Oldsmobile >> 1992 >> Achieva V6-3300 3.3L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Brakes and Traction Control >> Electronic Brake Control Module >> Diagrams >> Connector Views >> Electronic Control Module (ECM) >> C1

C1

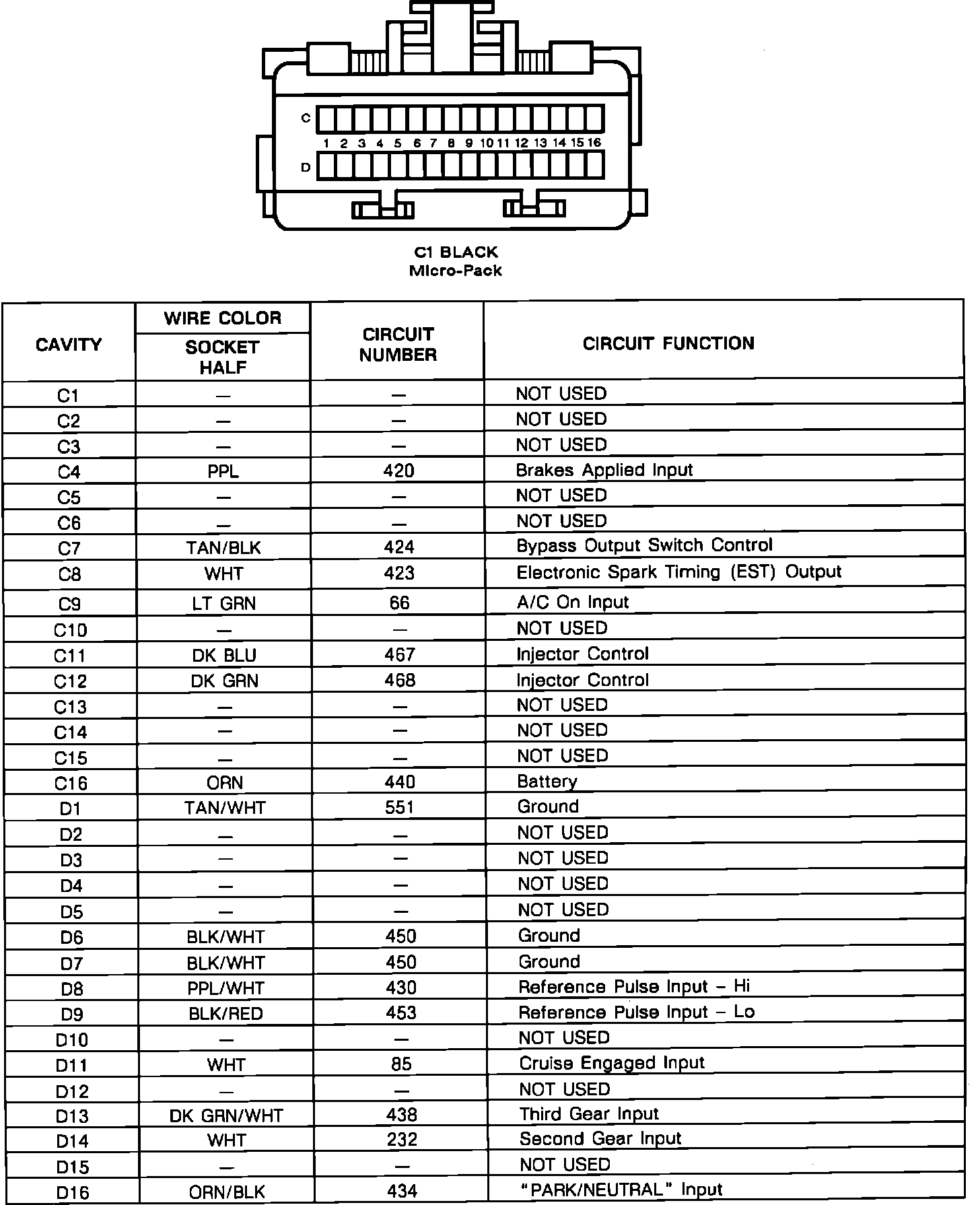

ECM Connector C1:
