Fuel Filler Hose: Description and Operation

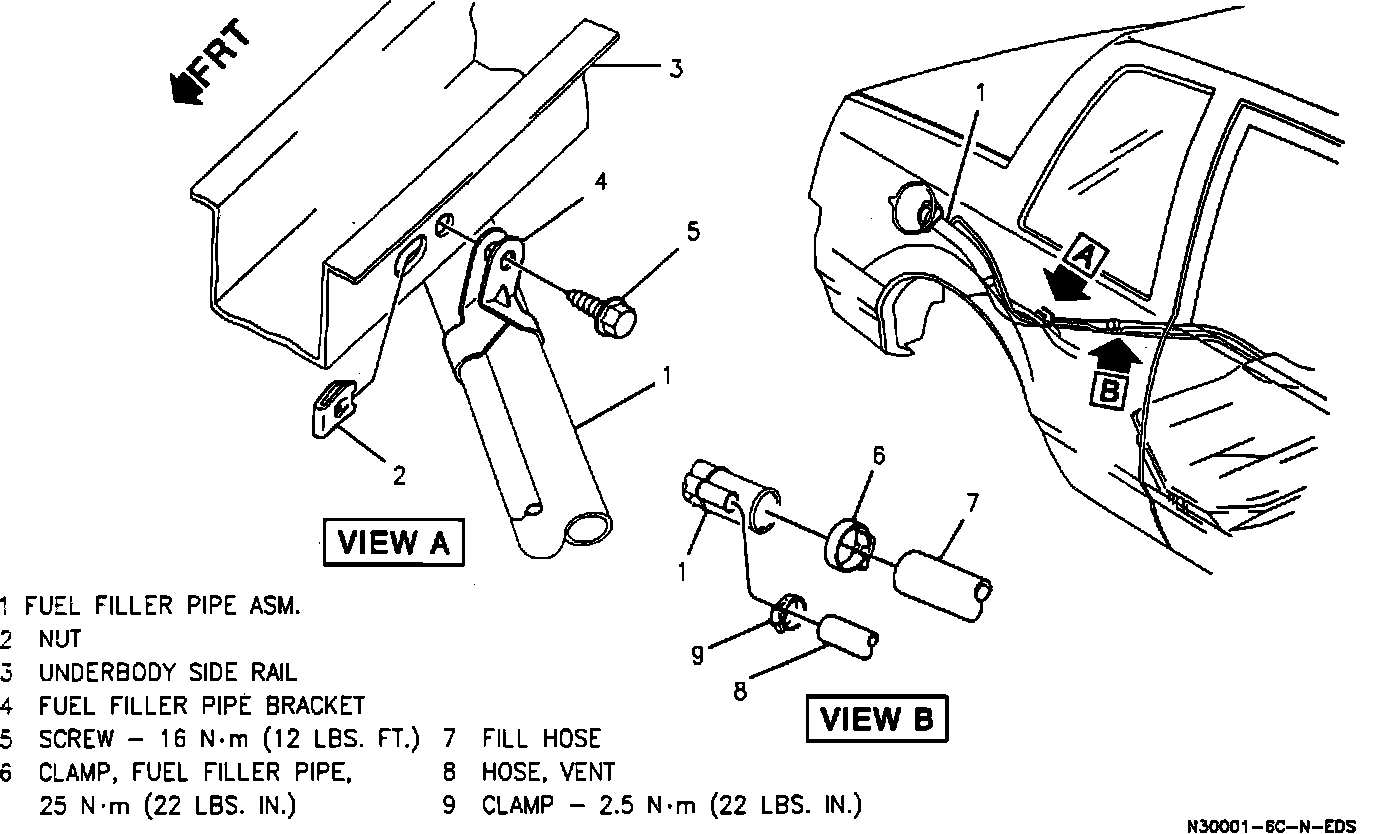

Fuel Tank And Filler:

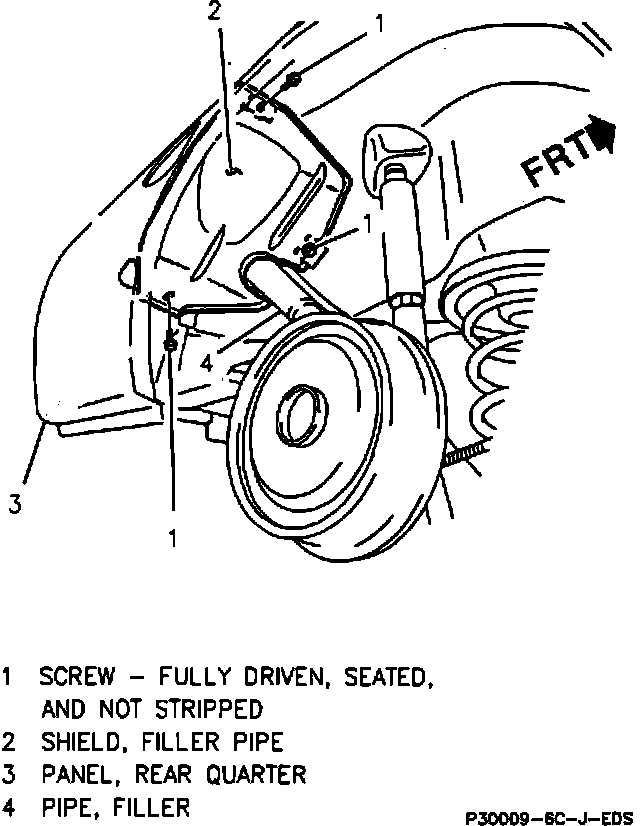

Filler Pipe Shield:

To help prevent refueling with leaded fuel, the fuel filler neck has a built-in restrictor and deflector. The opening in the restrictor will accept only the smaller unleaded gasoline fuel nozzle which must be fully inserted to bypass the deflector.
