FTP Fuse, PWR WDO Circuit Breaker and Tail LPS Fuse
FTP Fuse, PWR WDO Circuit Breaker and Tail LPS Fuse

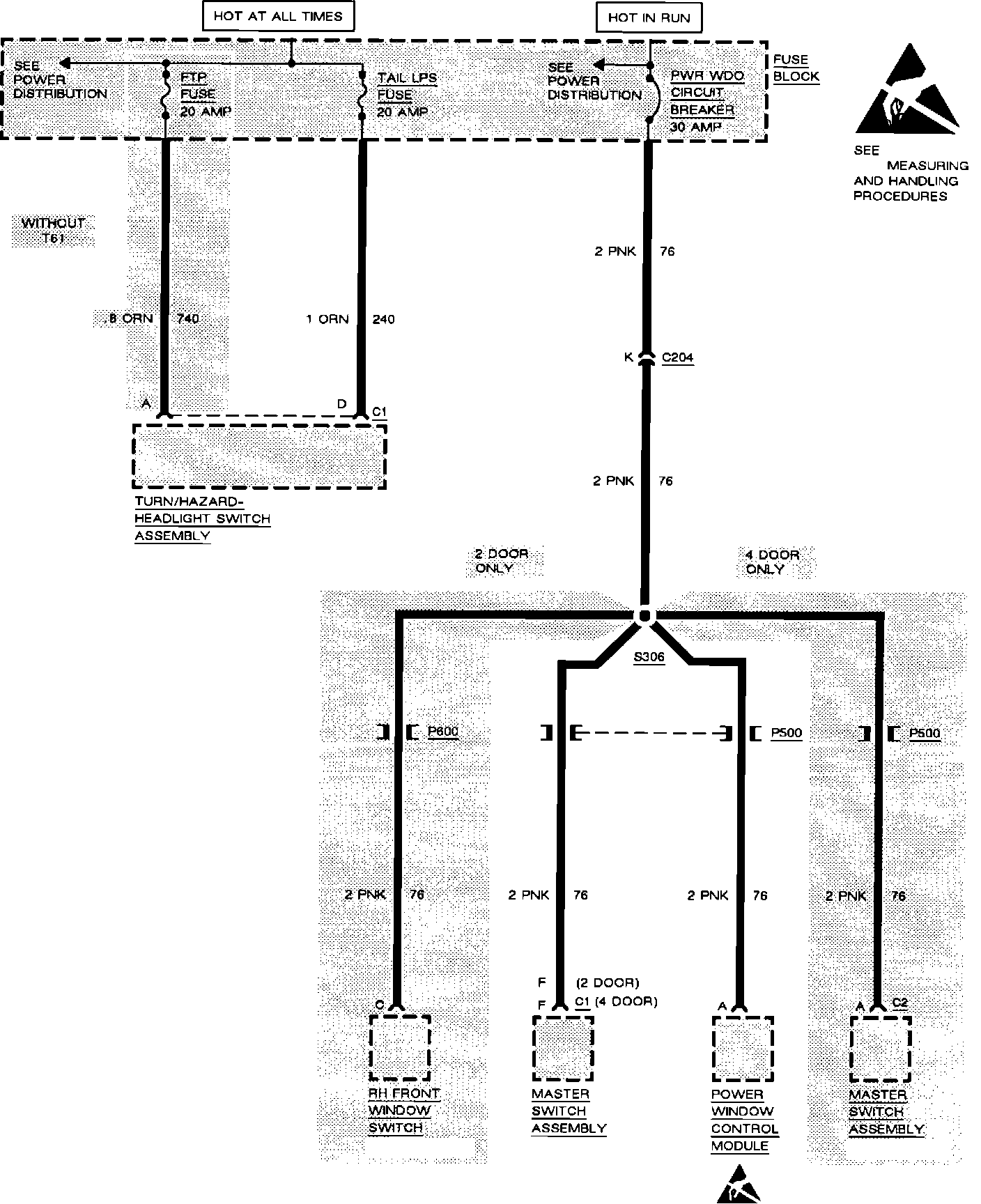

Fuse Block Details: FTP Fuse, PWR WDO Circuit Breaker And Tail LPS Fuse:
