Home
>>
Oldsmobile
>>
1992
>>
Achieva V6-3300 3.3L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G200
G200

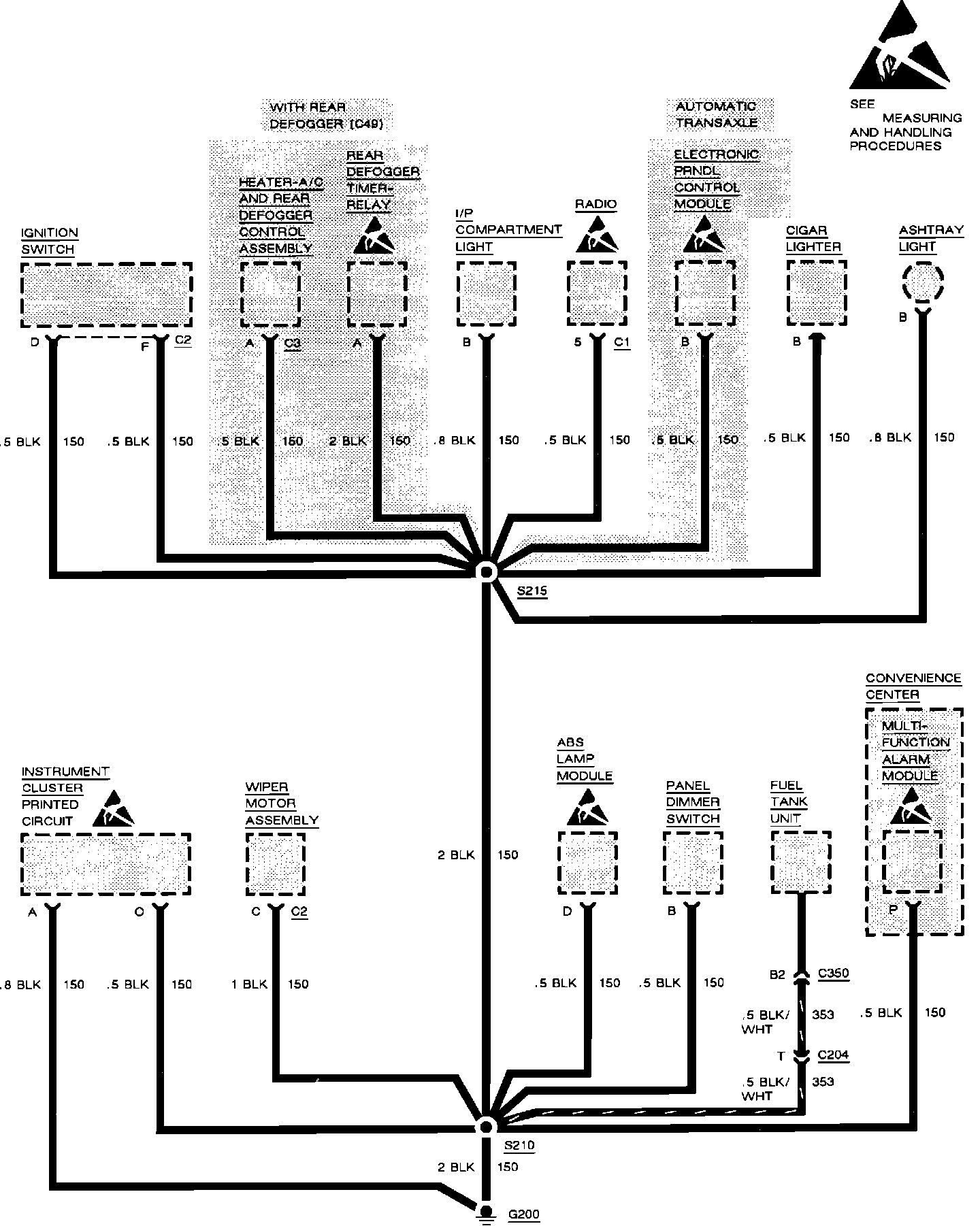

Ground Distribution: G200:
