Home >> Oldsmobile >> 1992 >> Achieva V6-3300 3.3L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G101 and G102

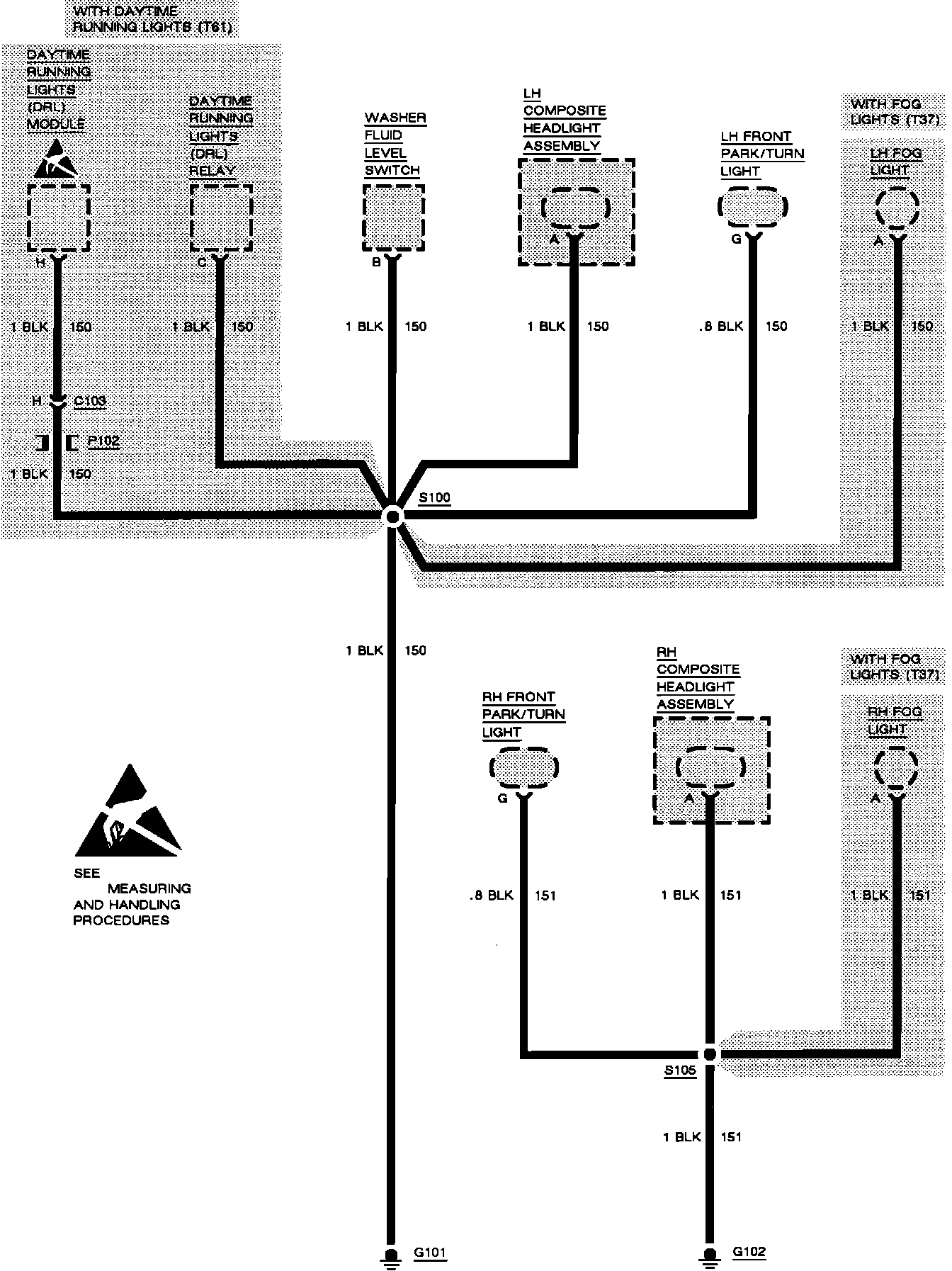

G101 and G102

Ground Distribution: G101 And G102:
