Home >> Oldsmobile >> 1992 >> Achieva V6-3300 3.3L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Volt Meter Gauge >> Testing and Inspection

Volt Meter Gauge: Testing and Inspection

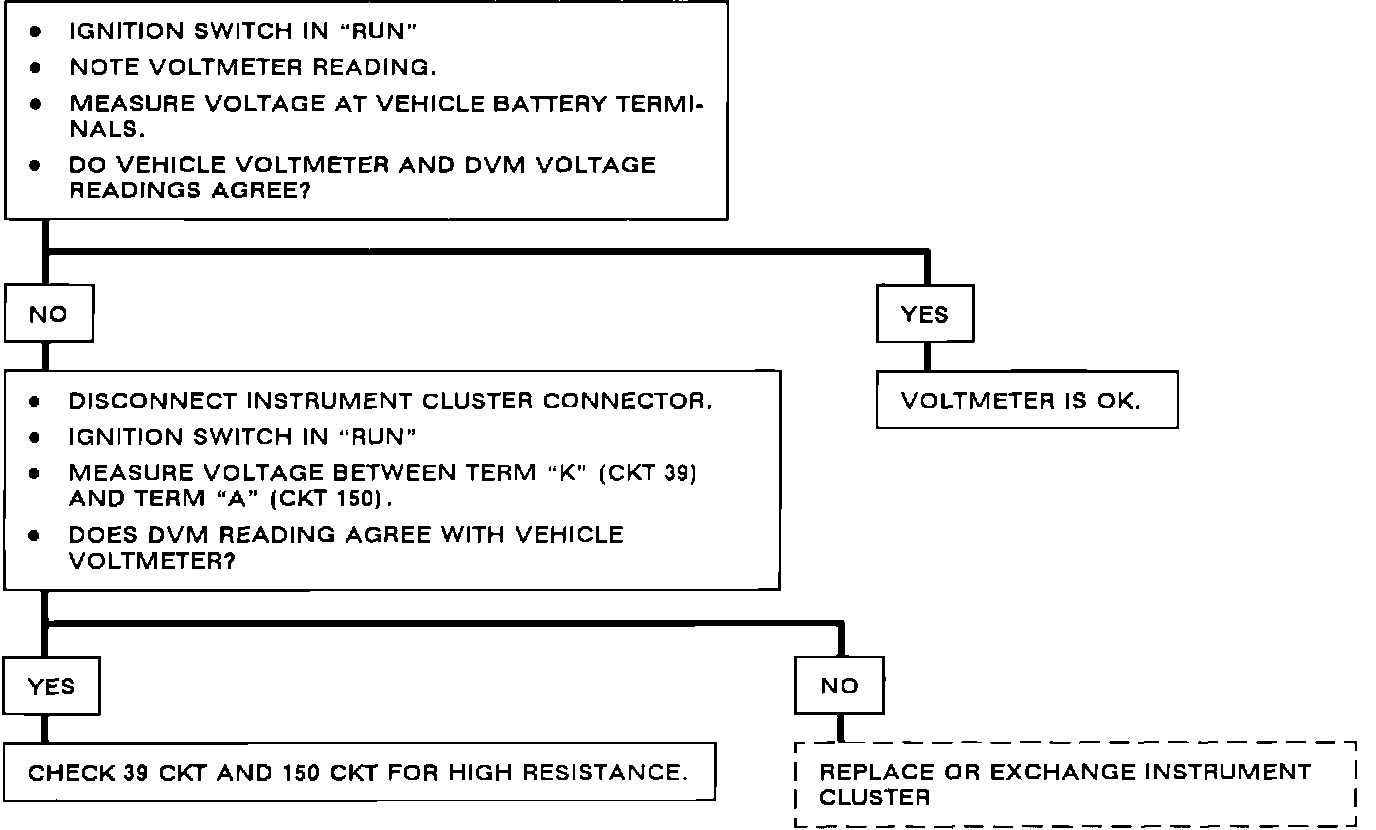

Chart #4 - Voltmeter Does Not Operate Properly:
