Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1992
>>
Achieva V6-3300 3.3L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Temperature Gauge
>>
Testing and Inspection
Temperature Gauge: Testing and Inspection

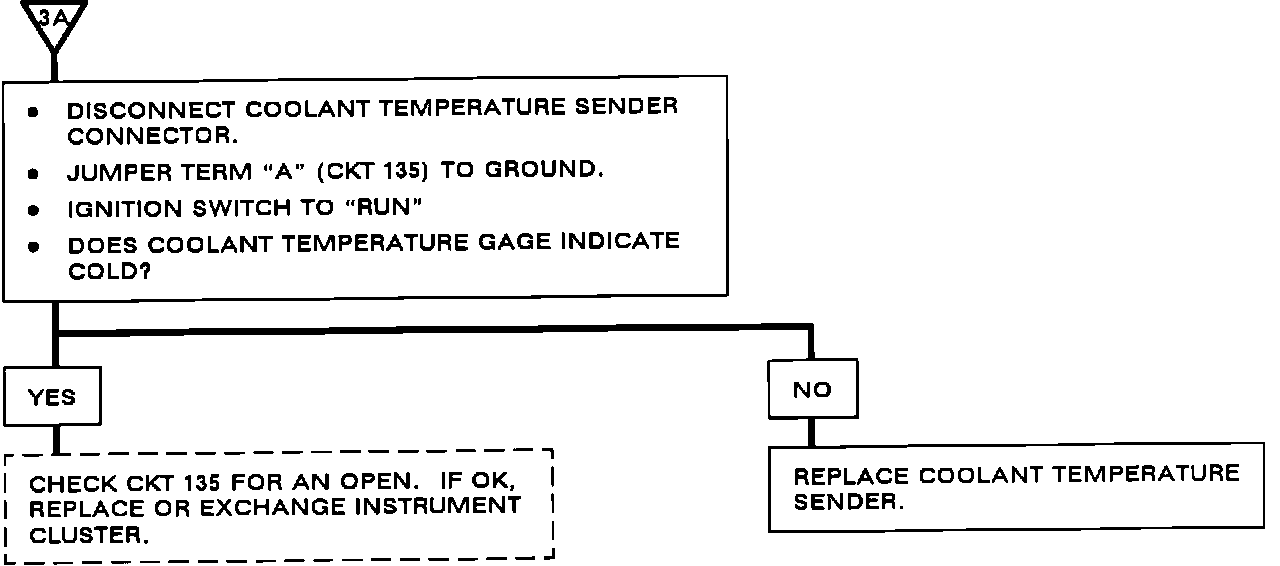

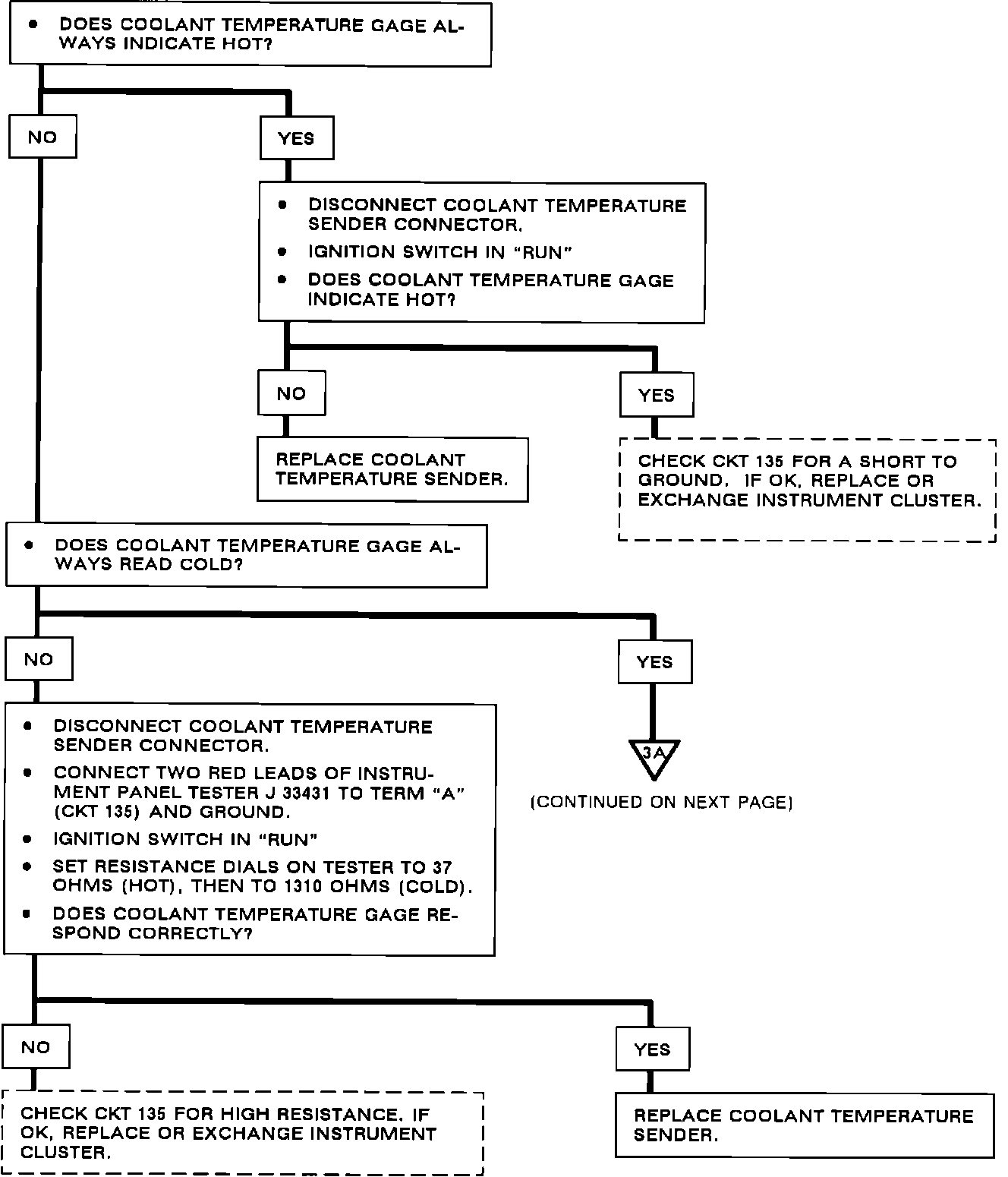

Chart #3 - Coolant Temperature Gage Does Not Operate Properly:
Chart #3 - Coolant Temperature Gage Does Not Operate Properly:
