Home
>>
Oldsmobile
>>
1992
>>
Achieva V6-3300 3.3L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Cigarette Lighter
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

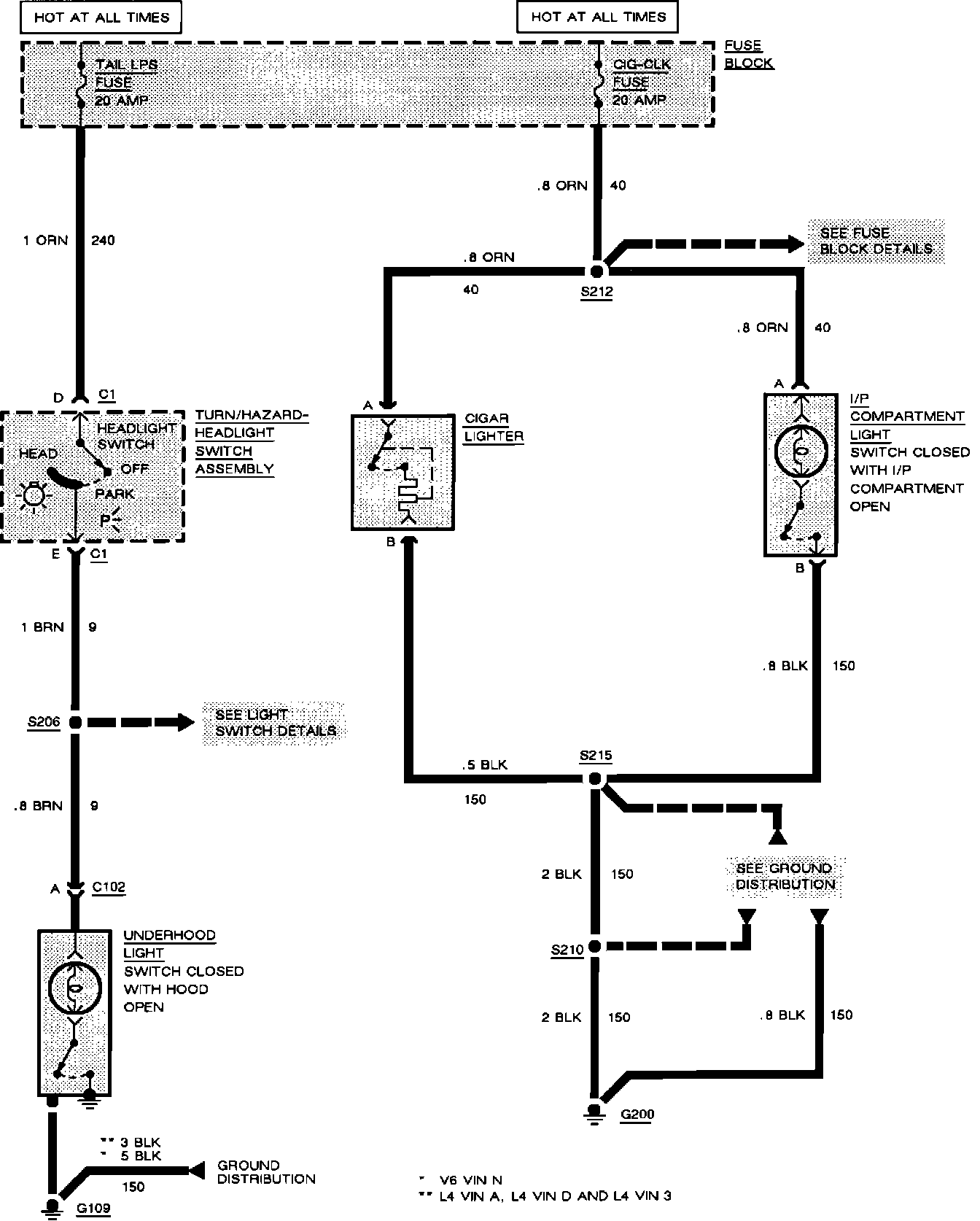

Interior Lights: Underhood/Cigar Lighter/Instrument Panel Compartment:
