Harmonic Balancer - Crankshaft Pulley: Service and Repair

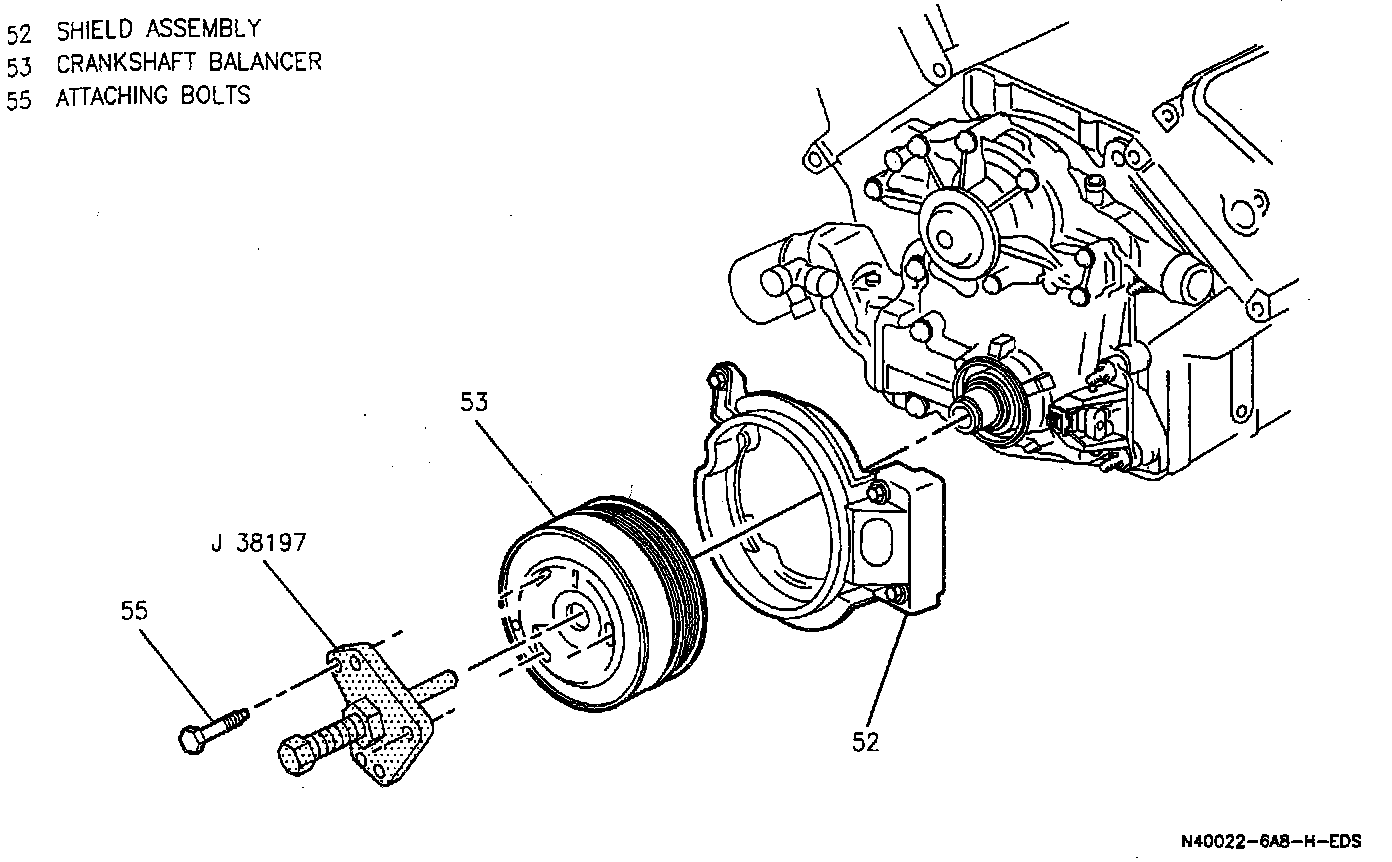

Crankshaft Balancer Assembly:

Tool Required:
J 37096 Flywheel Holding Tool
J 38197 Crankshaft Balancer Puller

Remove or Disconnect

1. Negative battery cable.
2. Raise vehicle and suitably support.
3. Right front wheel and tire assembly.
4. Inner fender splash shield (right side).

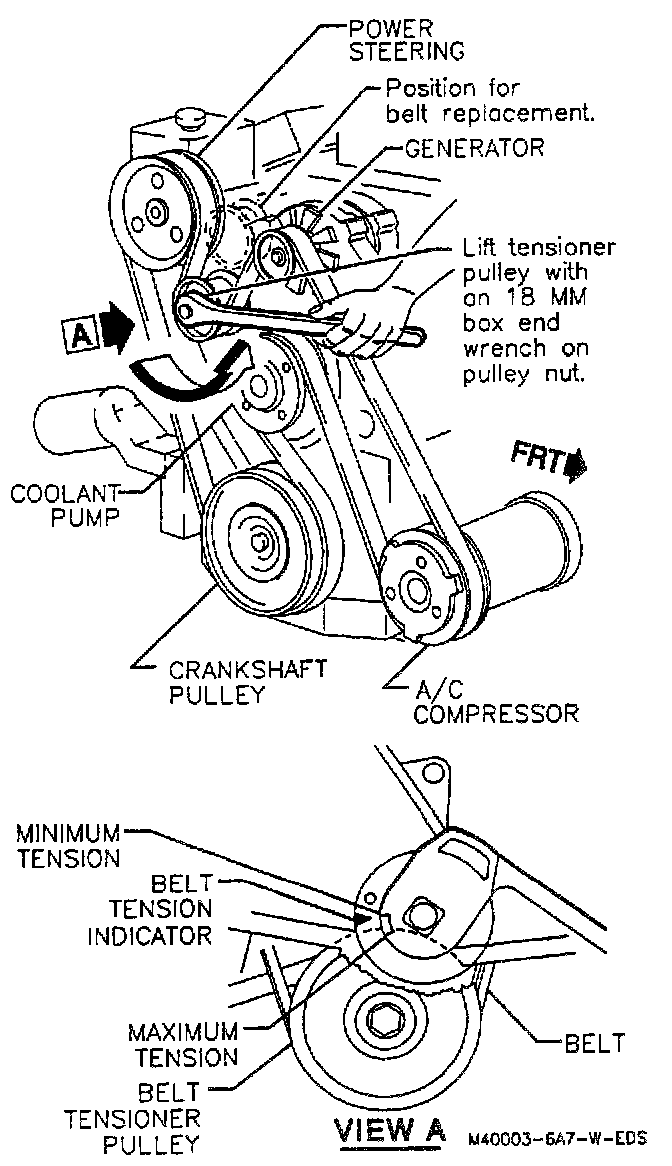

Accessory Drive Belt Service:

5. Accessory drive belt.
6. Torque converter cover.

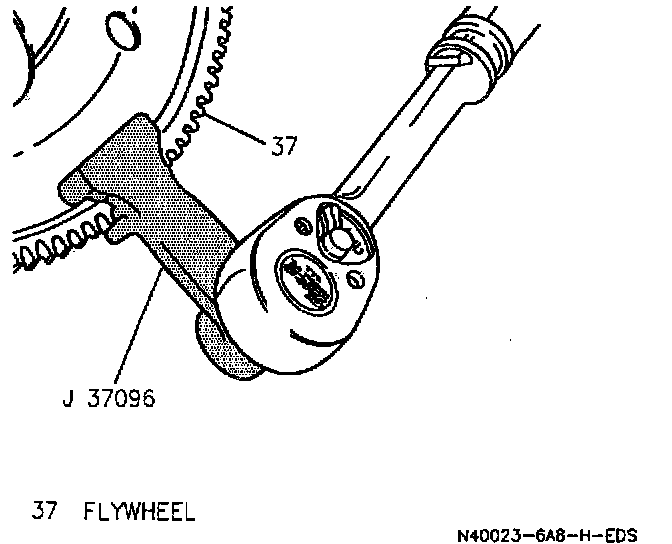

Holding Flywheel With J 37096:

7. Hold flywheel with J 37096.
8. Balancer bolt.
9. Crankshaft balancer using J 38197.

Important
^ The balancer is serviced as an assembly. Do not attempt to separate pulley from balancer hub.

Install or Connect

1. Crankshaft balancer.
^ Lubricate seal surface with engine oil.
2. Balancer bolt.
^ Hold flywheel with J 37096.

Tighten
^ Balancer bolt to 150 N.m (110 lbs. ft.) + 76°.

3. Inner fender splash shield.
4. Right front wheel and tire assembly.
5. Torque converter cover.
6. Lower vehicle.
7. Accessory drive belt.
8. Negative battery cable.
