Oldsmobile
>>
1992
>>
Achieva V6-3300 3.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
System Diagram
>>
Speaker System
>>
Six Speakers
Six Speakers

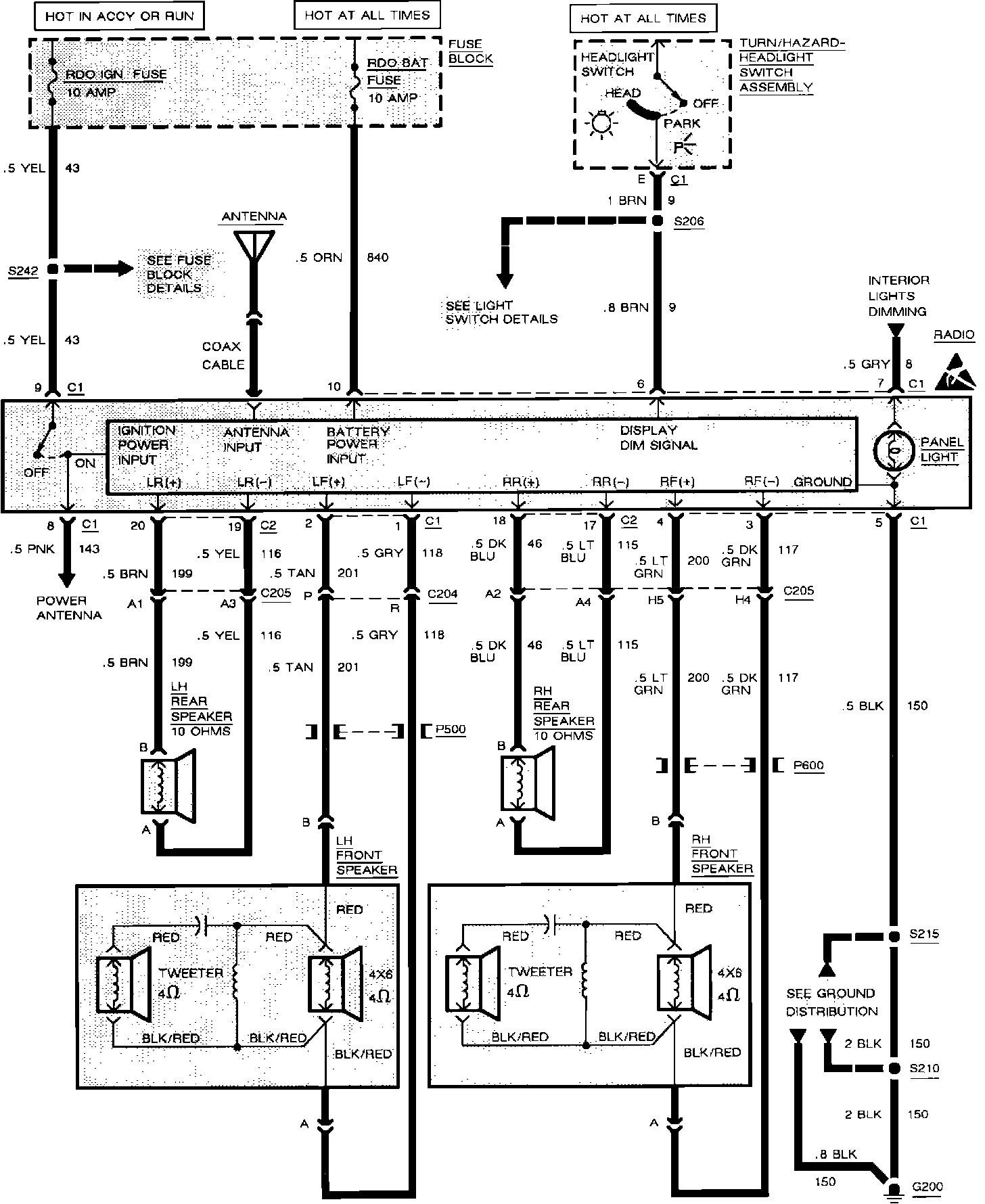

Radio/Audio Systems Wiring Circuit (6 Speakers):
