Oldsmobile
>>
1992
>>
Achieva V6-3300 3.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>

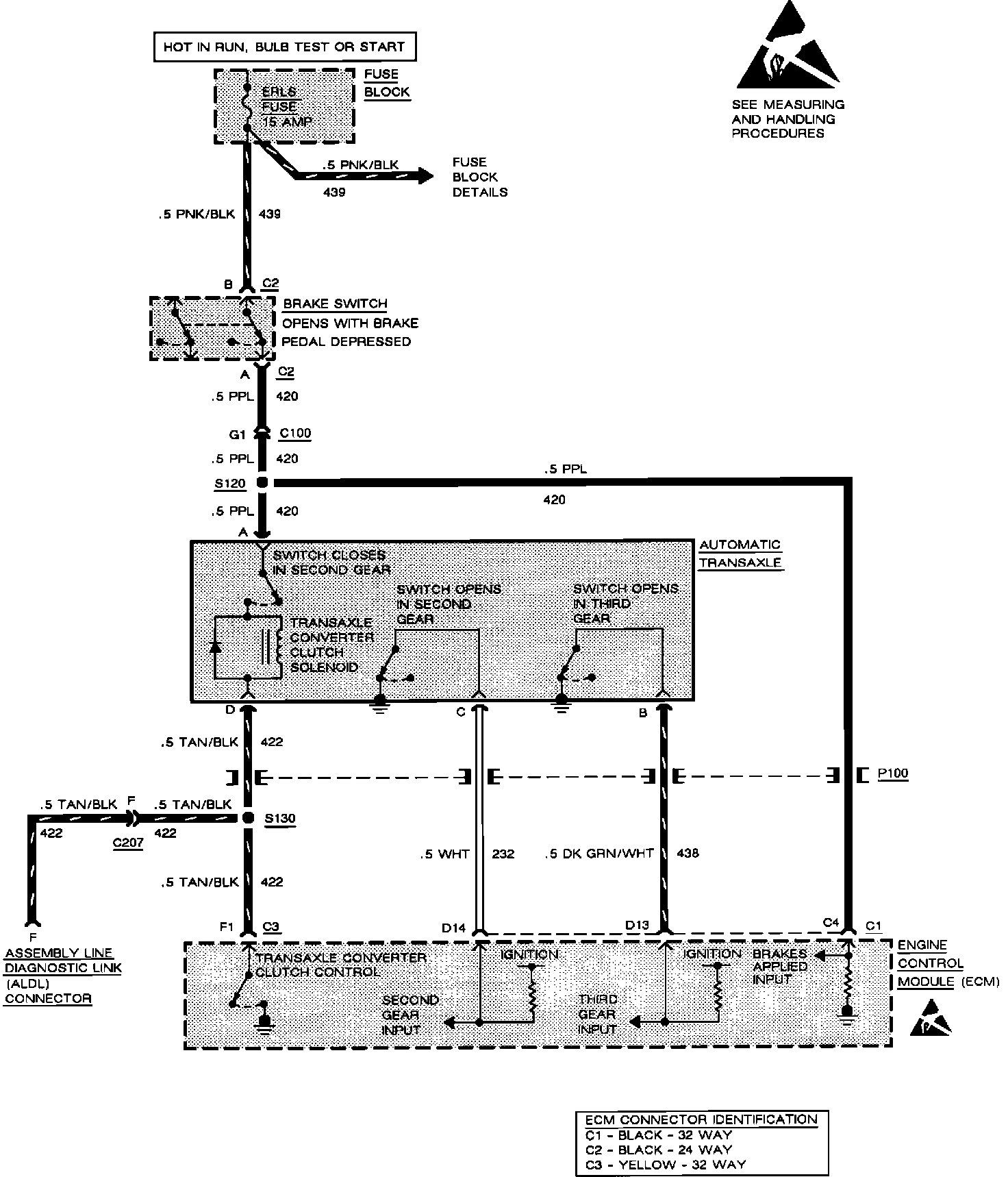

Torque Converter Clutch (TCC)
Torque Converter Clutch (TCC)
Multi-Port Fuel Injection: Transaxle Converter Clutch:
