Oldsmobile
>>
1992
>>
Achieva V6-3300 3.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>

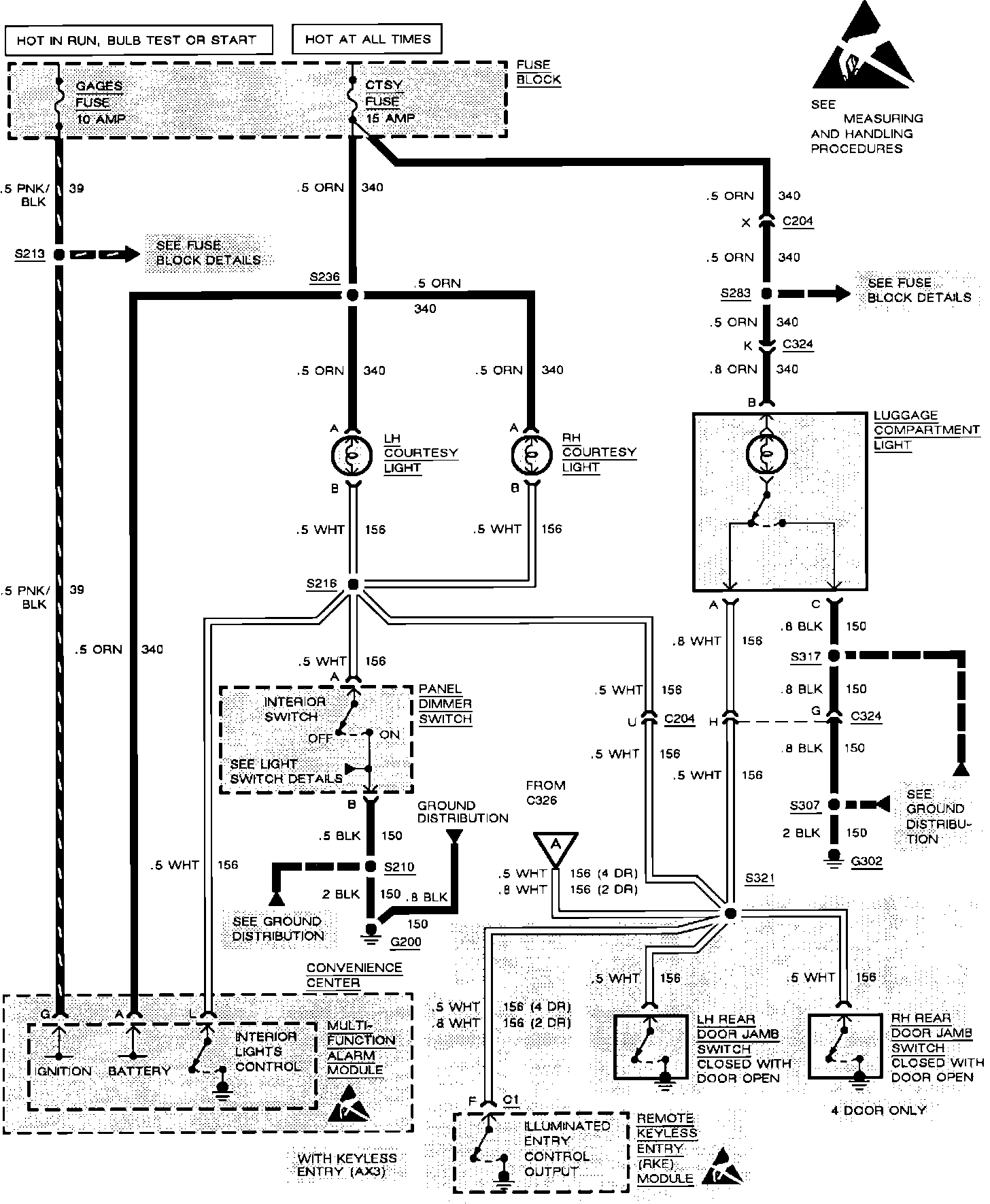

Trunk Lamp
Trunk Lamp
Interior Lights: Courtesy/Luggage Compartment:
