Keyless Entry
Keyless Entry

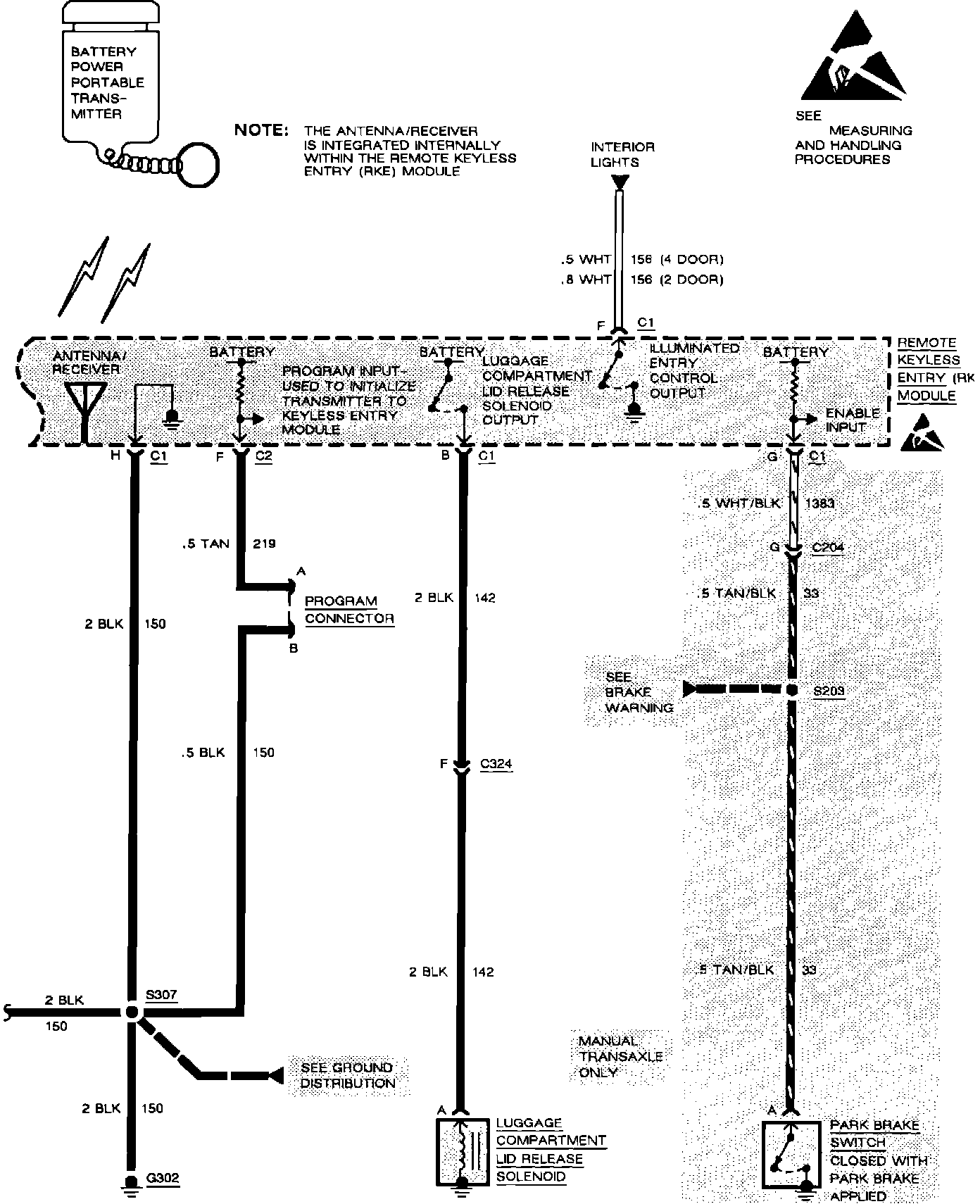

Keyless Entry Wiring Circuit:
Keyless Entry Wiring Circuit:
Keyless Entry Wiring Circuit:
