Oldsmobile
>>
1992
>>
Achieva V6-3300 3.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Compressor HVAC
Compressor HVAC

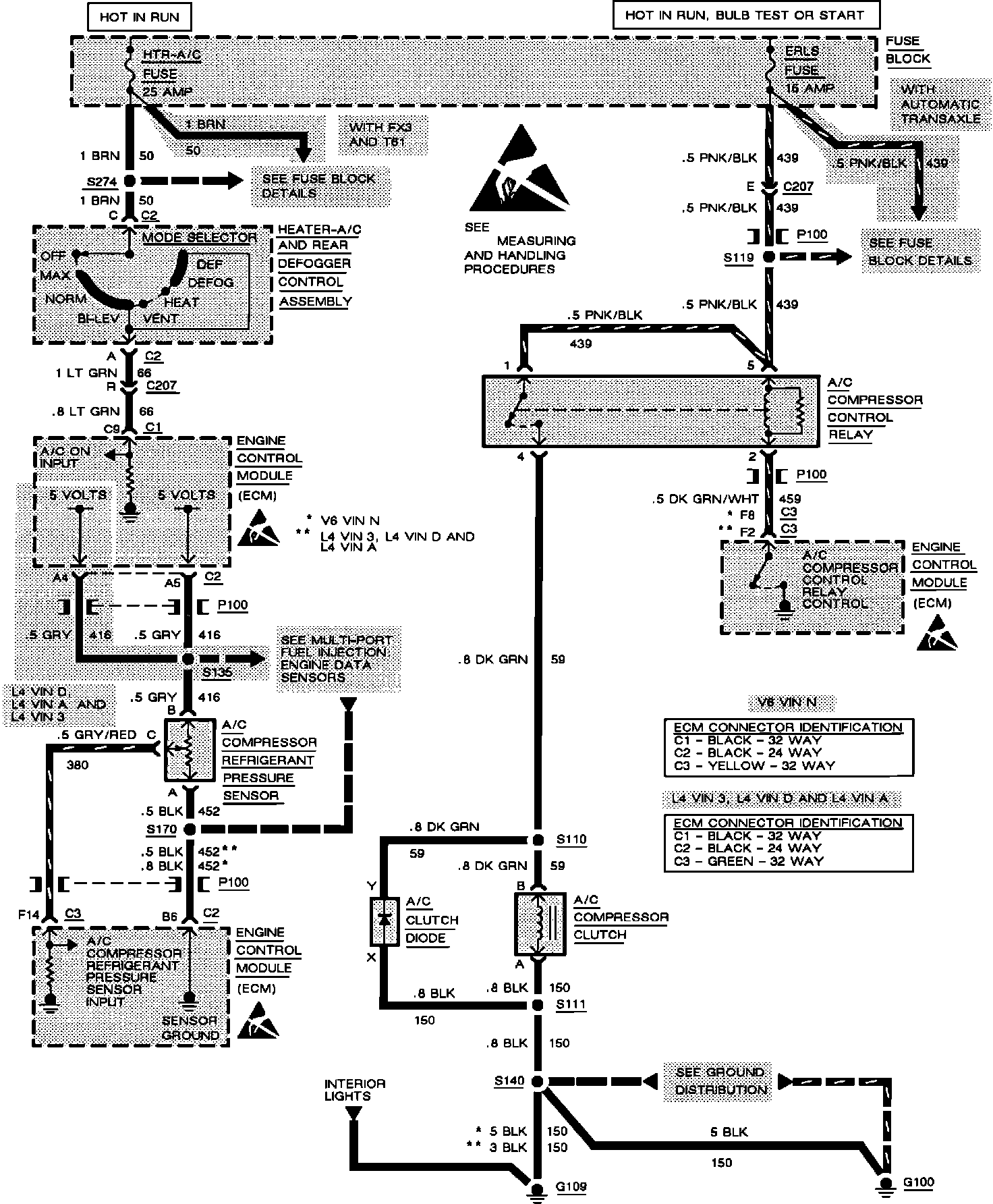

HVAC: Compressor Controls Wiring Circuit:
