Removal

CAUTION: It is not necessary to disconnect the brake hose, however, use caution not to twist or kink hose.

Shoe And Lining Assembly:

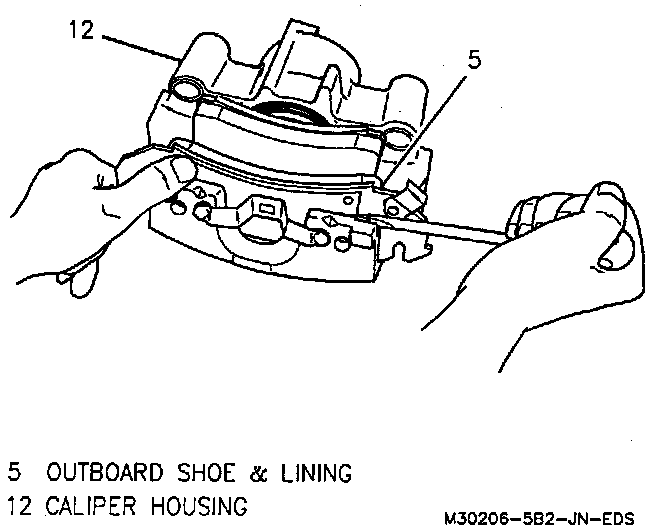

Removing Outboard Shoe And Lining:

1. Remove caliper.
2. Remove outboard shoe and lining.Use screwdriver to disengage buttons on shoe from holes in caliper housing.
3. Remove inboard shoe and lining.
