Fuel Supply Line: Locations

Fuel And Vapor Pipe Routing To Engine Compartment:

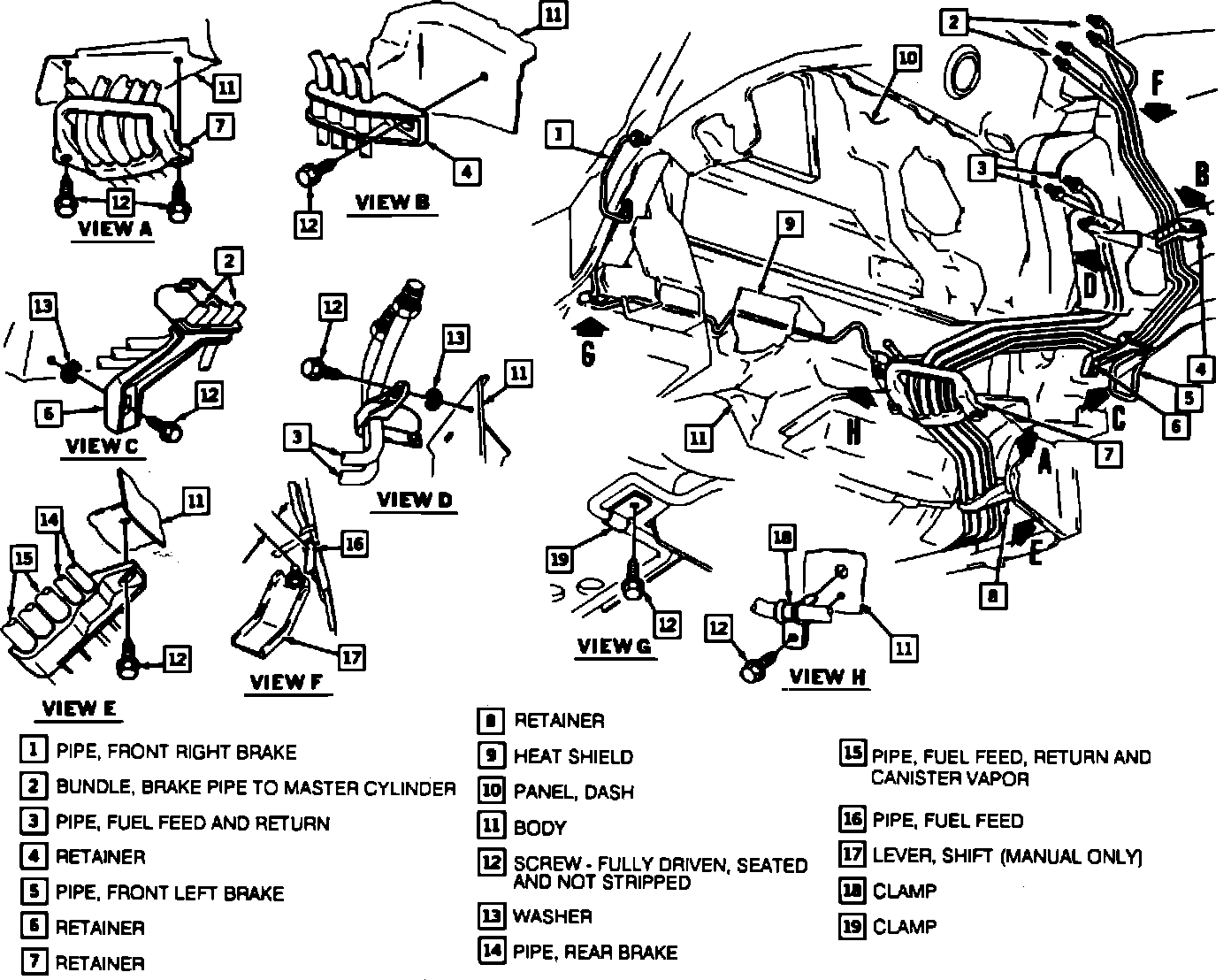

Side And Rear Fuel Pipe Routing:

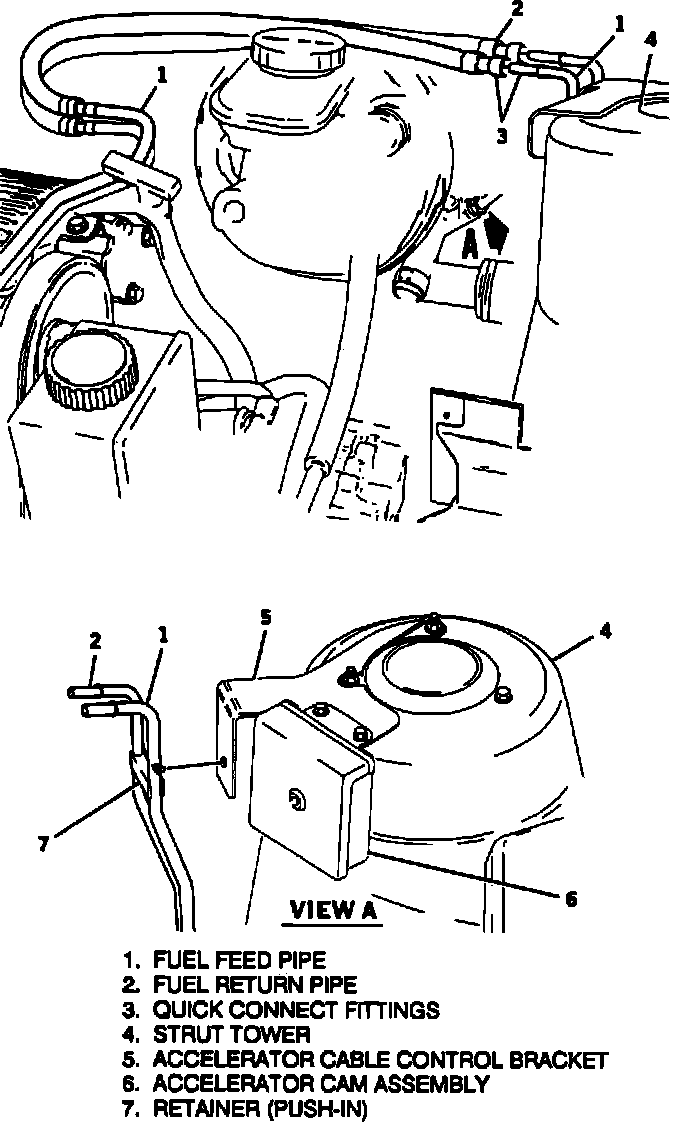

Engine Compartment Fuel Lines:

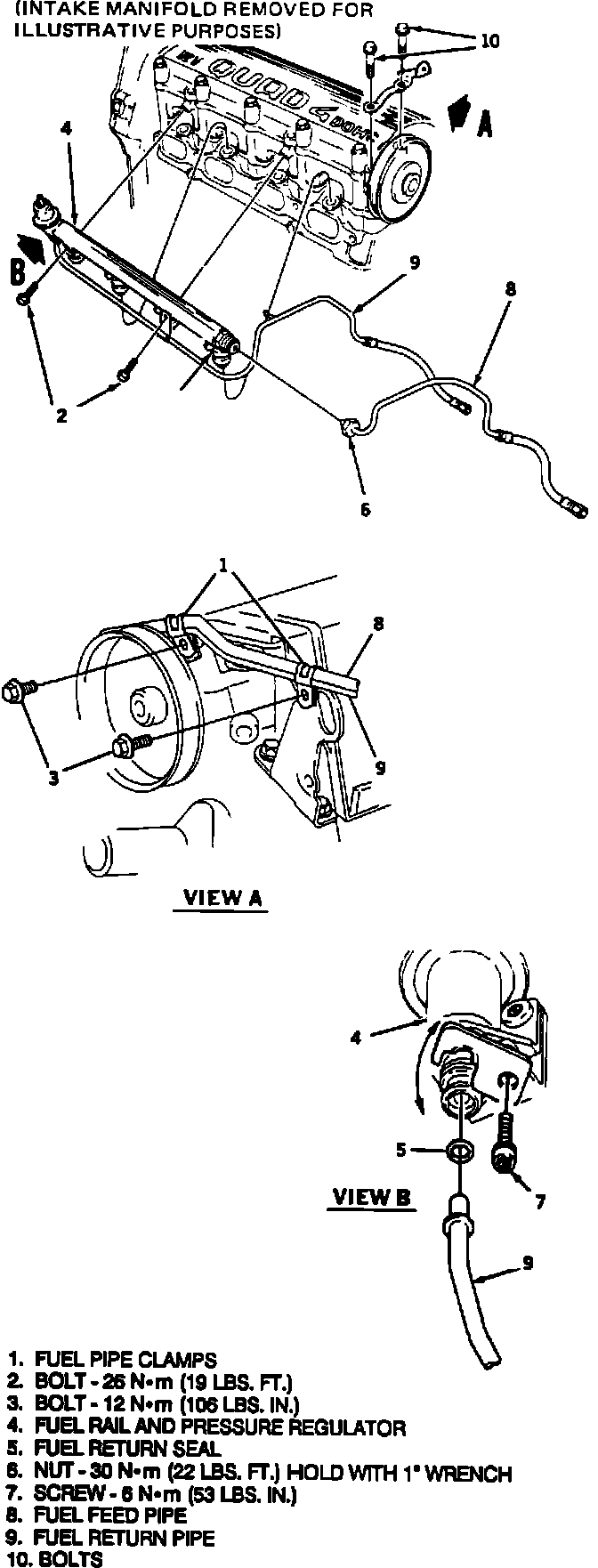

Fuel Pipes To Engine:

Front Fuel Vapor Pipe:

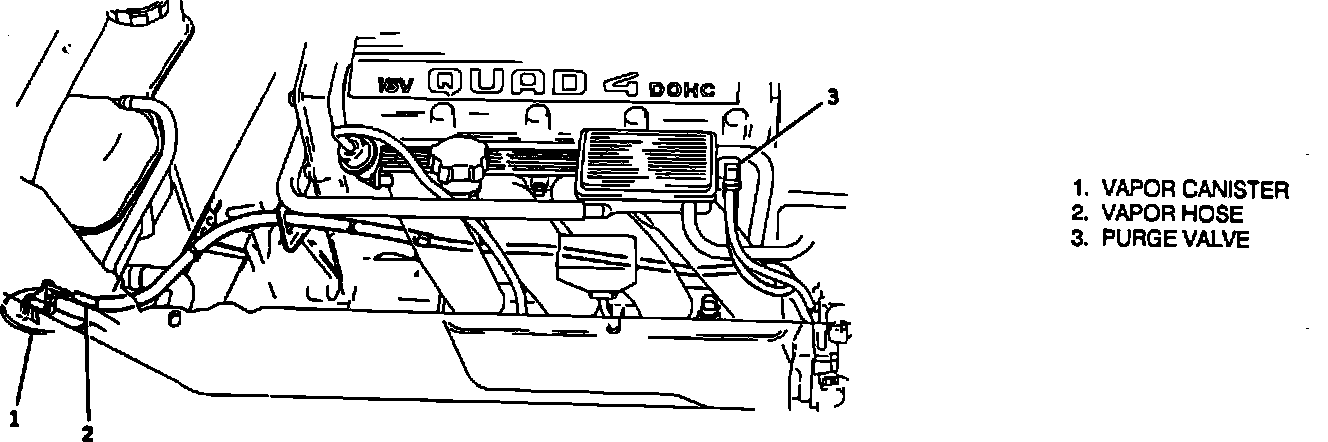

Fuel Vapor To Engine 2.3L:
