Oldsmobile
>>
1992
>>
Achieva L4-138 2.3L VIN D FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Torque Converter Clutch & Shift Indicator
Torque Converter Clutch & Shift Indicator

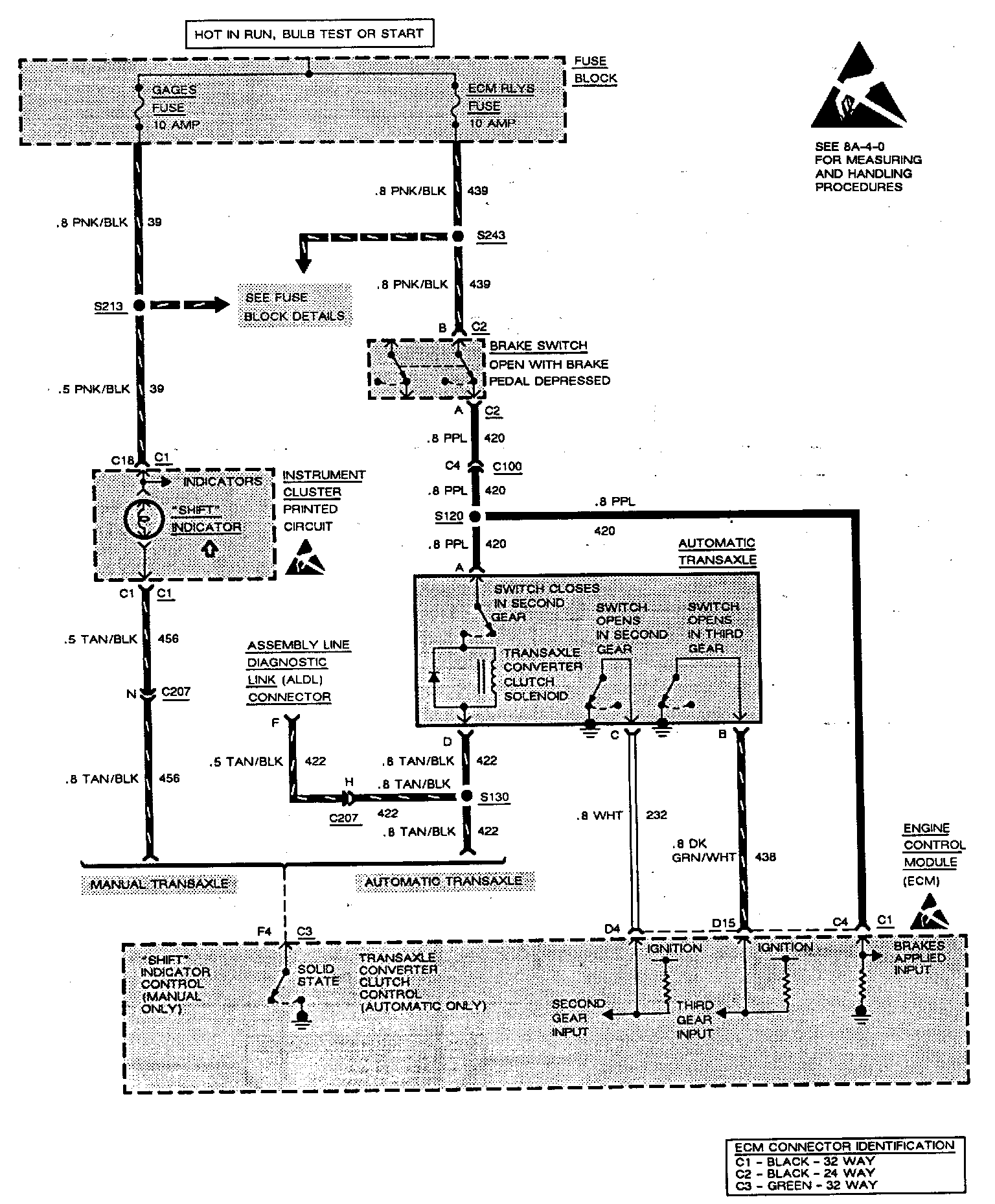

Transaxle Converter Clutch / Shift Indicator:
