Calais V6-3300 3.3L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Ignition Controls
Ignition Controls

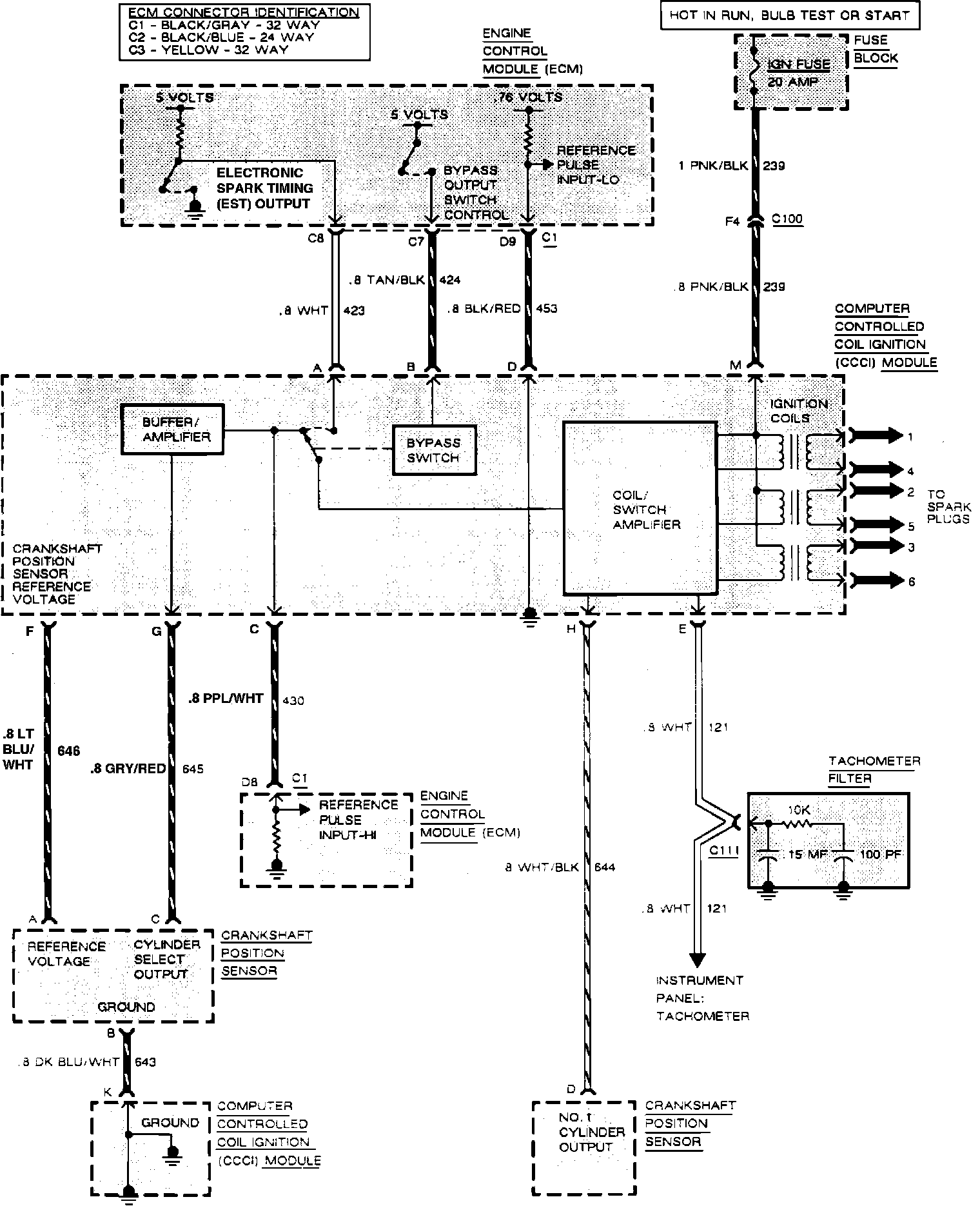

Multi-Port Fuel Injection, Ignition:

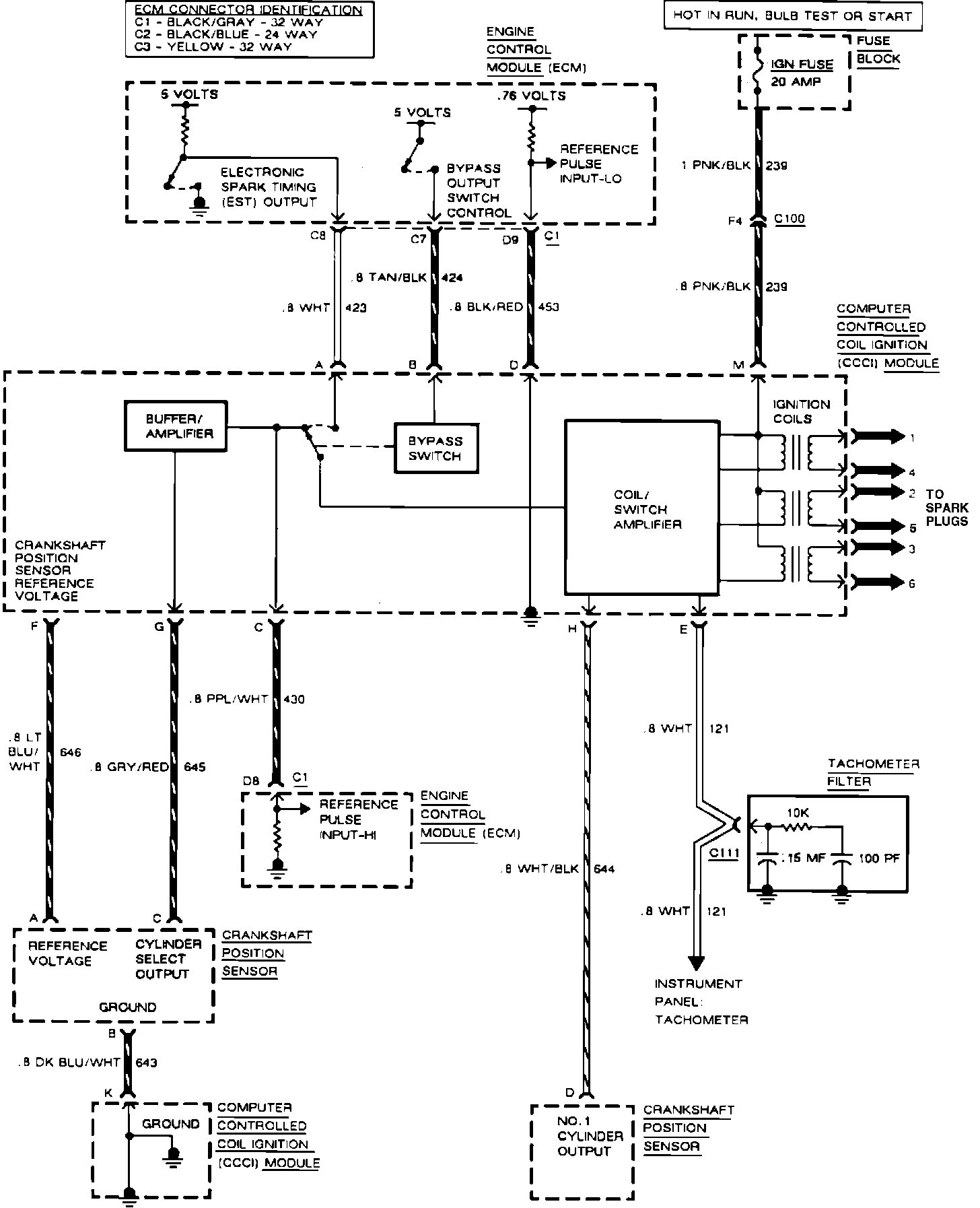

Electronic Fuel Injection: Ignition:
