Oldsmobile
>>
1991
>>
Calais L4-151 2.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

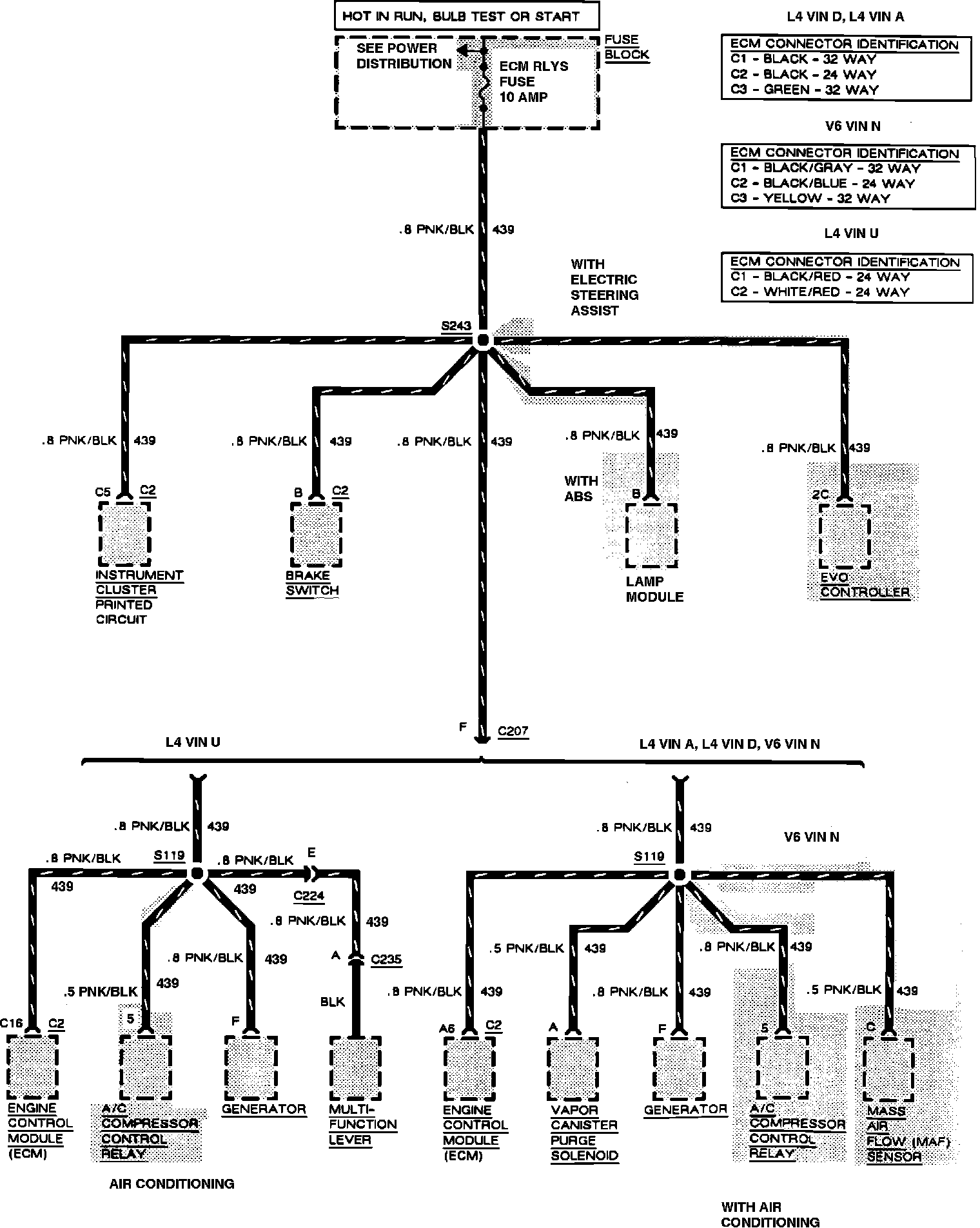

Fuse Block Details (ECM RLYS Fuse):
