Cutlass V6-189 3.1L VIN T FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Controls
Powertrain Controls

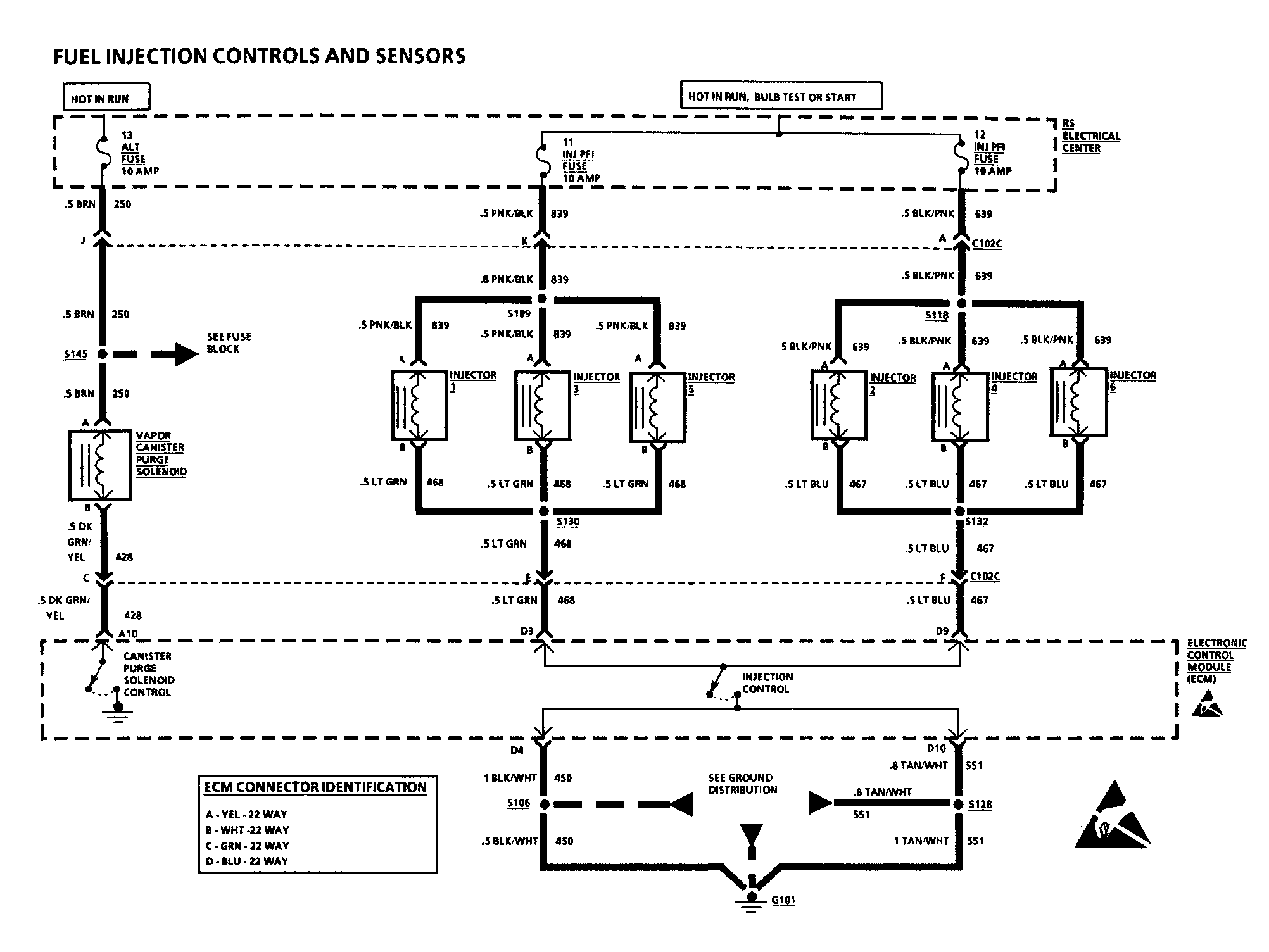

Fuel Injection Controls And Sensors:
