Home
>>
Oldsmobile
>>
1990
>>
Cutlass V6-189 3.1L VIN T FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
With Manual Control Air Conditioning (C67)
>>
Compressor Controls
Compressor Controls

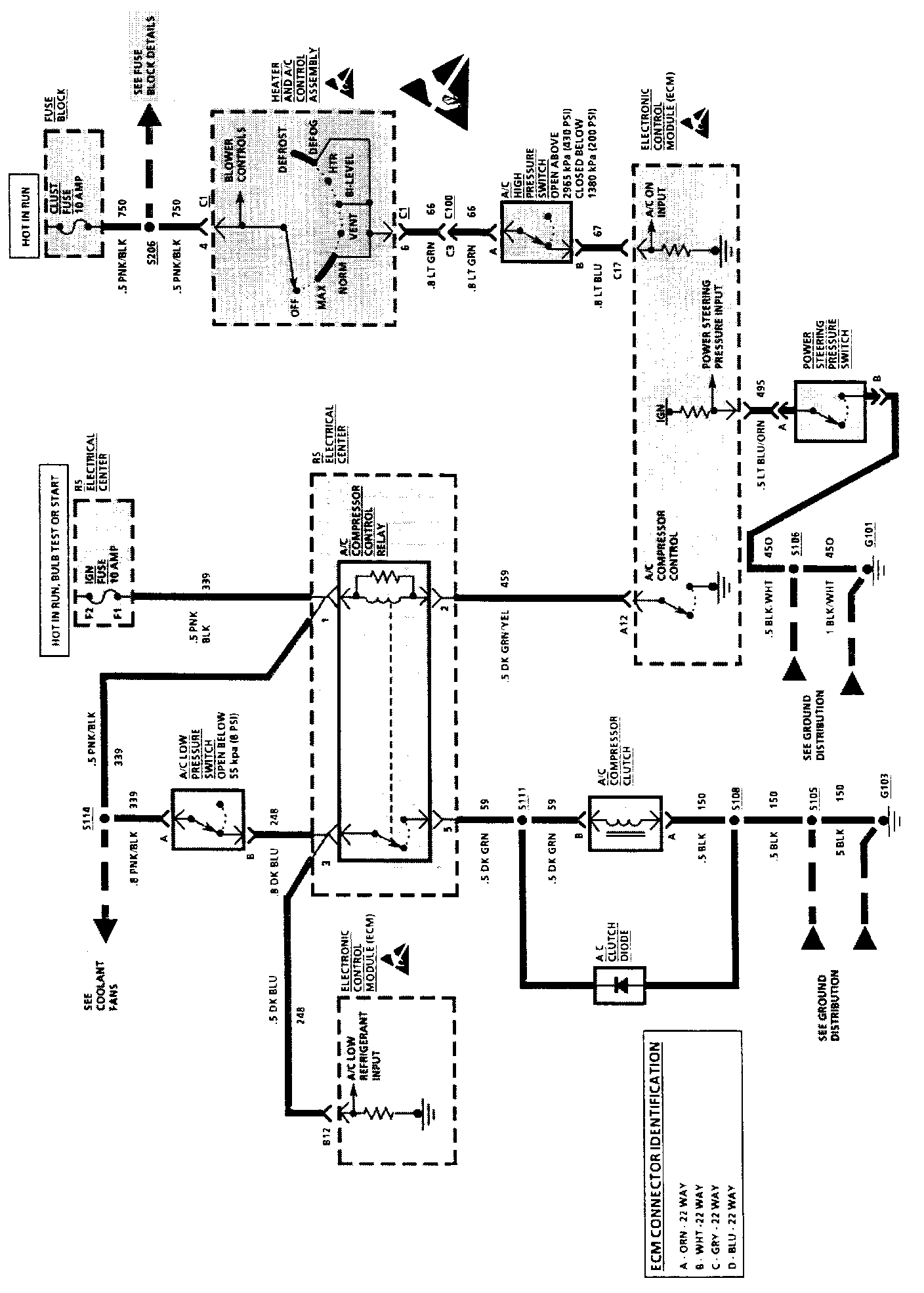

Compressor Controls (C67):
