Cutlass V6-189 3.1L VIN T FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
With Automatic Control Air Conditioning (C68)
>>
Compressor Controls
Compressor Controls

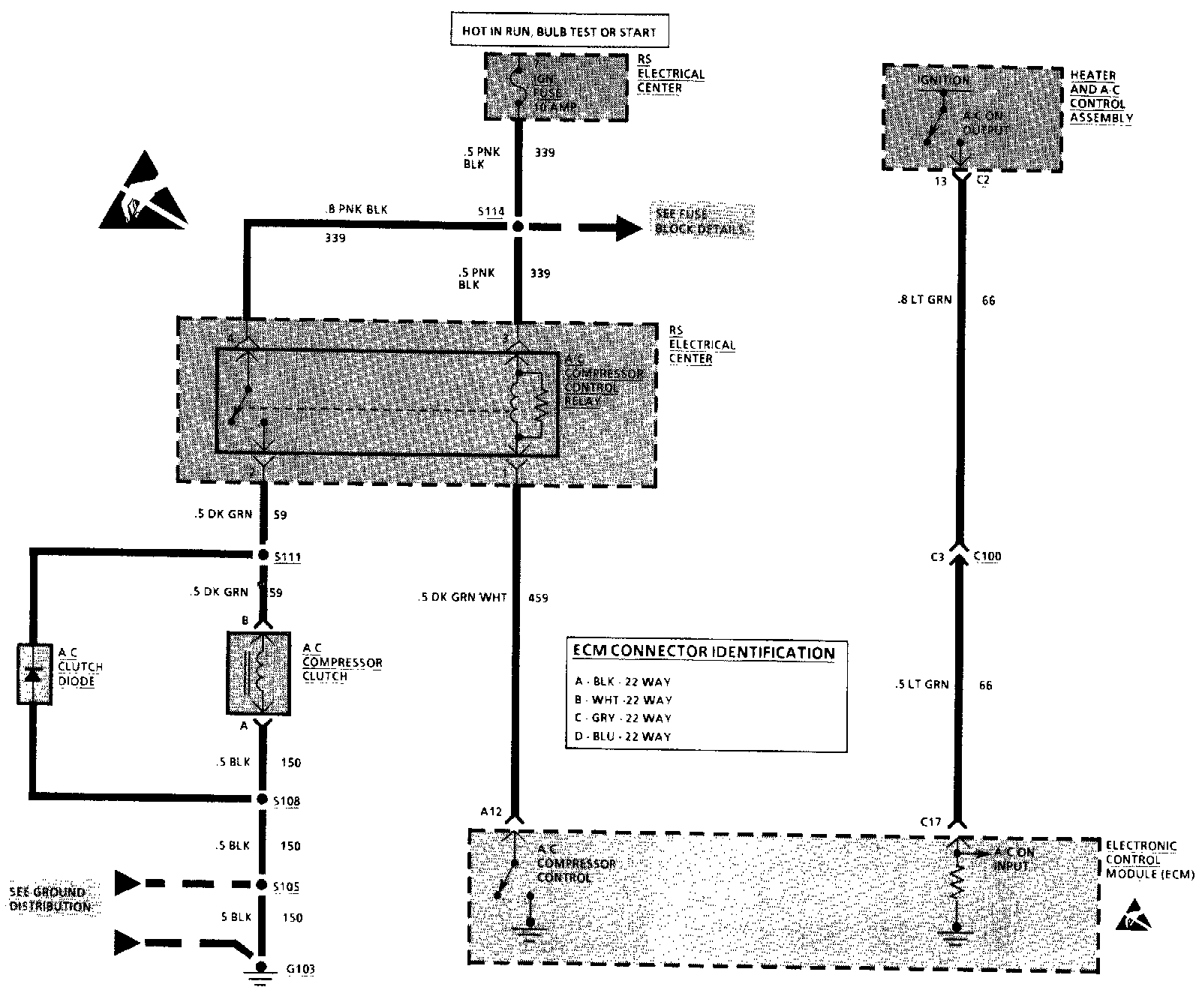

Compressor Controls (C68) L4 VIN D, L4 VIN A:
