Rear Door

SEDAN REAR DOOR TRIM PANEL

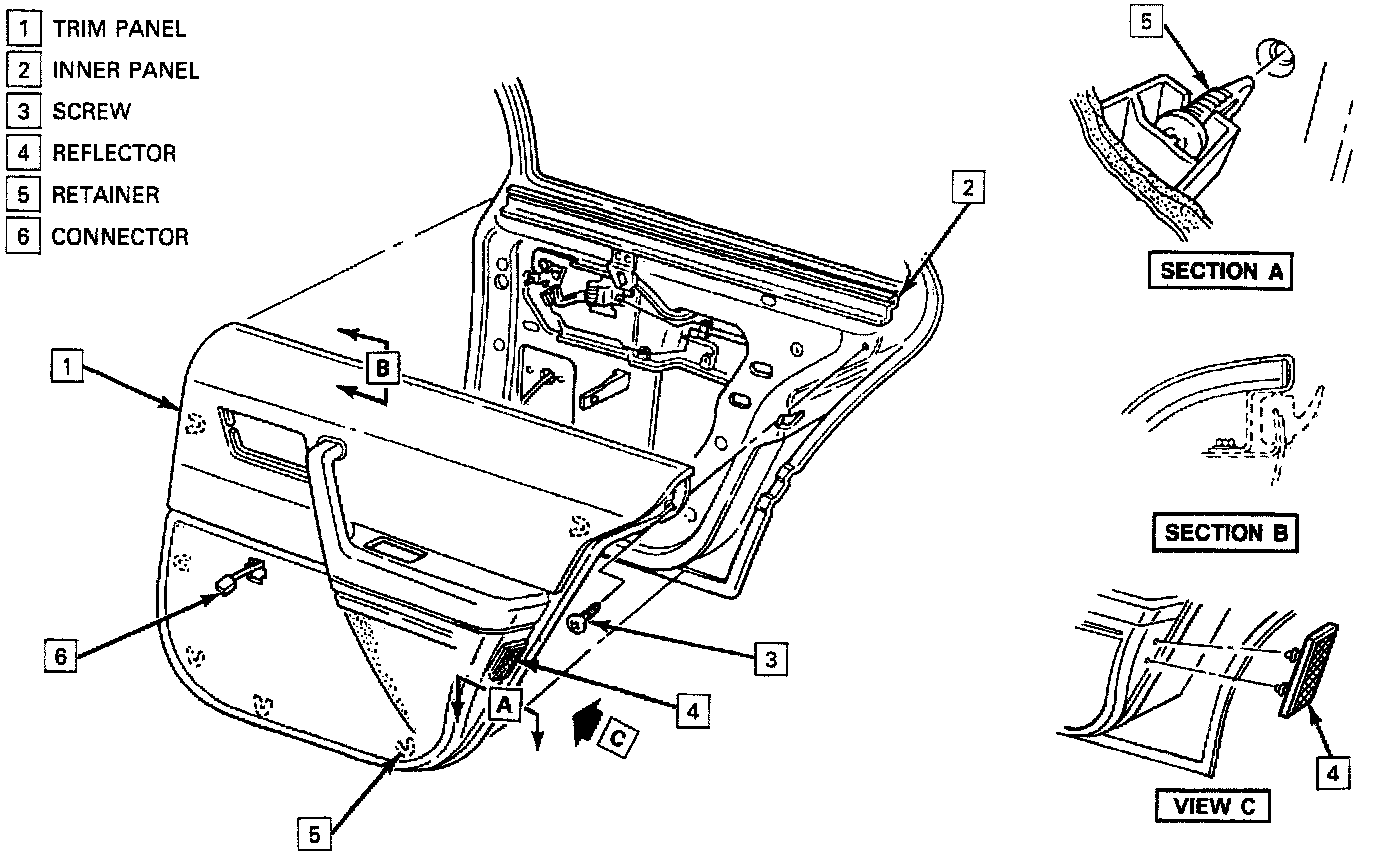

Door Trim Panel - Sedan Rear Door:

TOOL REQUIRED:
^ J 24595-C Door Trim Pad and Garnish Clip Remover

REMOVE OR DISCONNECT
1. Door regulator handle, if present.
2. Reflector.
3. Screw from trim panel.
4. Screws from door armrest.
5. Power window switch.
6. Door trim panel using J 24595-C to disengage fasteners from holes in door inner panel.

INSTALL OR CONNECT
1. Door trim panel fasteners to holes in inner panel. Press in to secure.
2. Power window switch.
3. Screws to door armrest.
4. Screw to trim panel.
5. Reflector.
6. Door regulator handle, if present.
