Cutlass L4-138 2.3L VIN D FI
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>
With Automatic
With Automatic

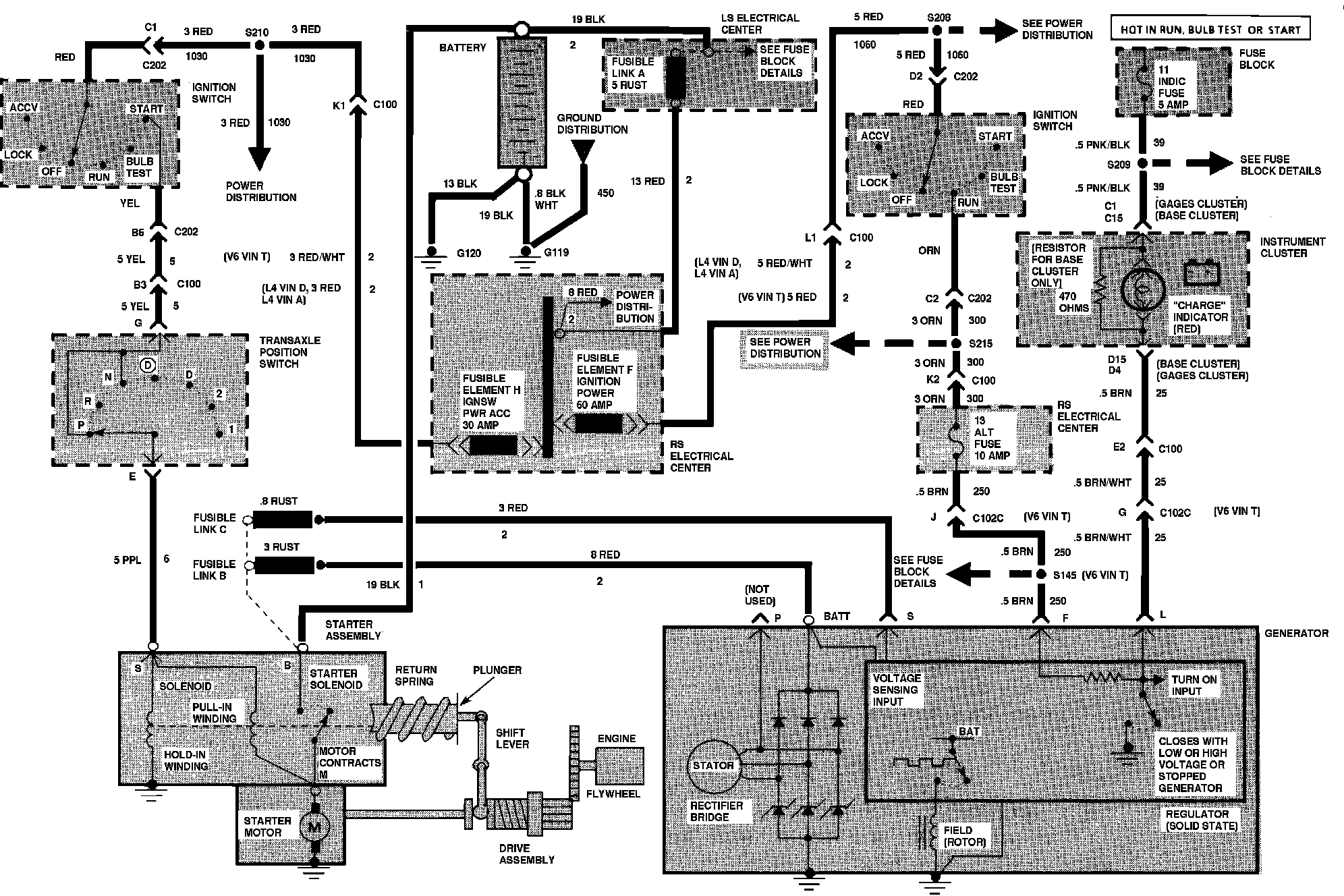

Charging & Starting System. With Automatic Transaxle:
