Righthand Side

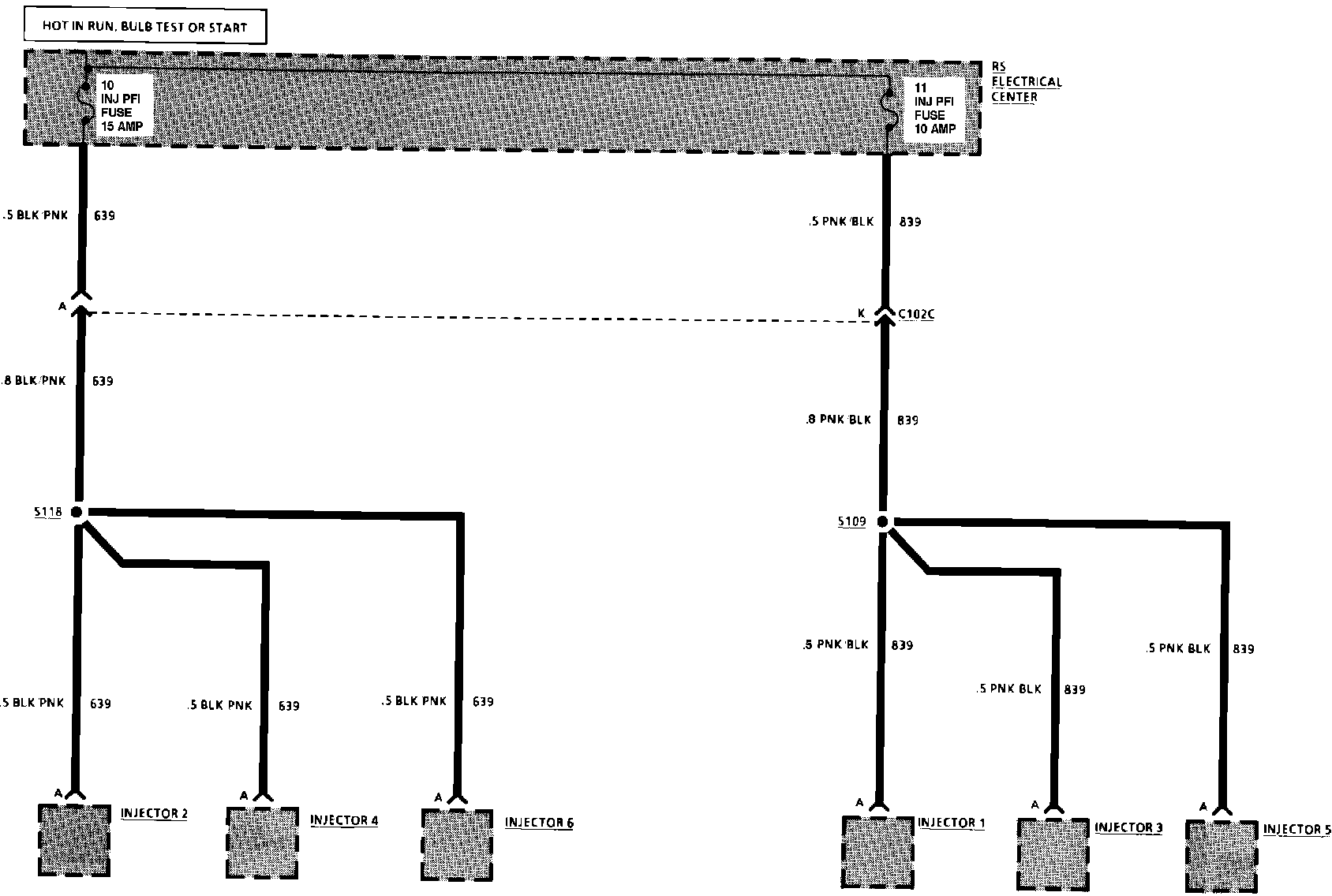

Fuse Block Details. RH Side Electrical Center:

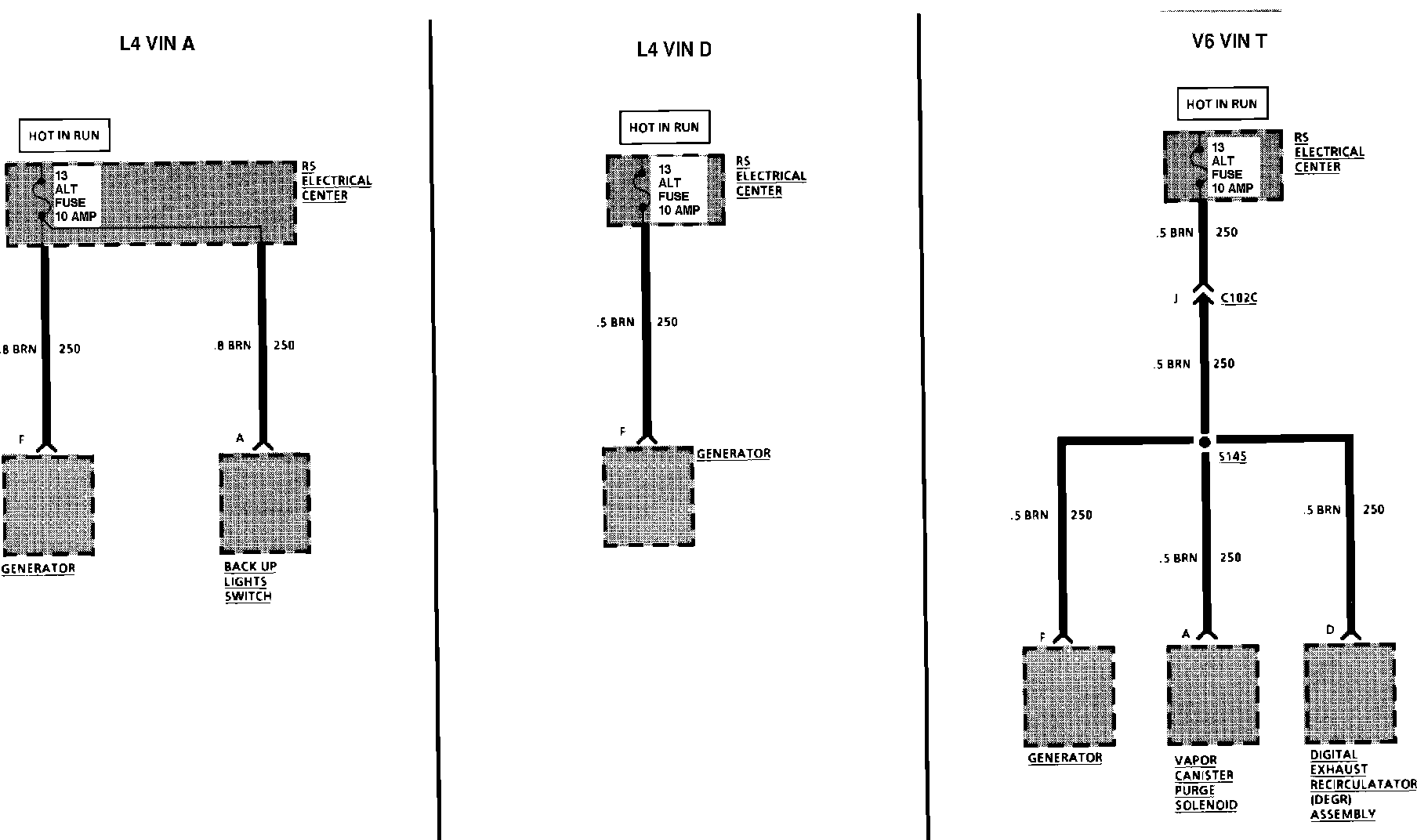

Fuse Block Details. RH Side Electrical Center:

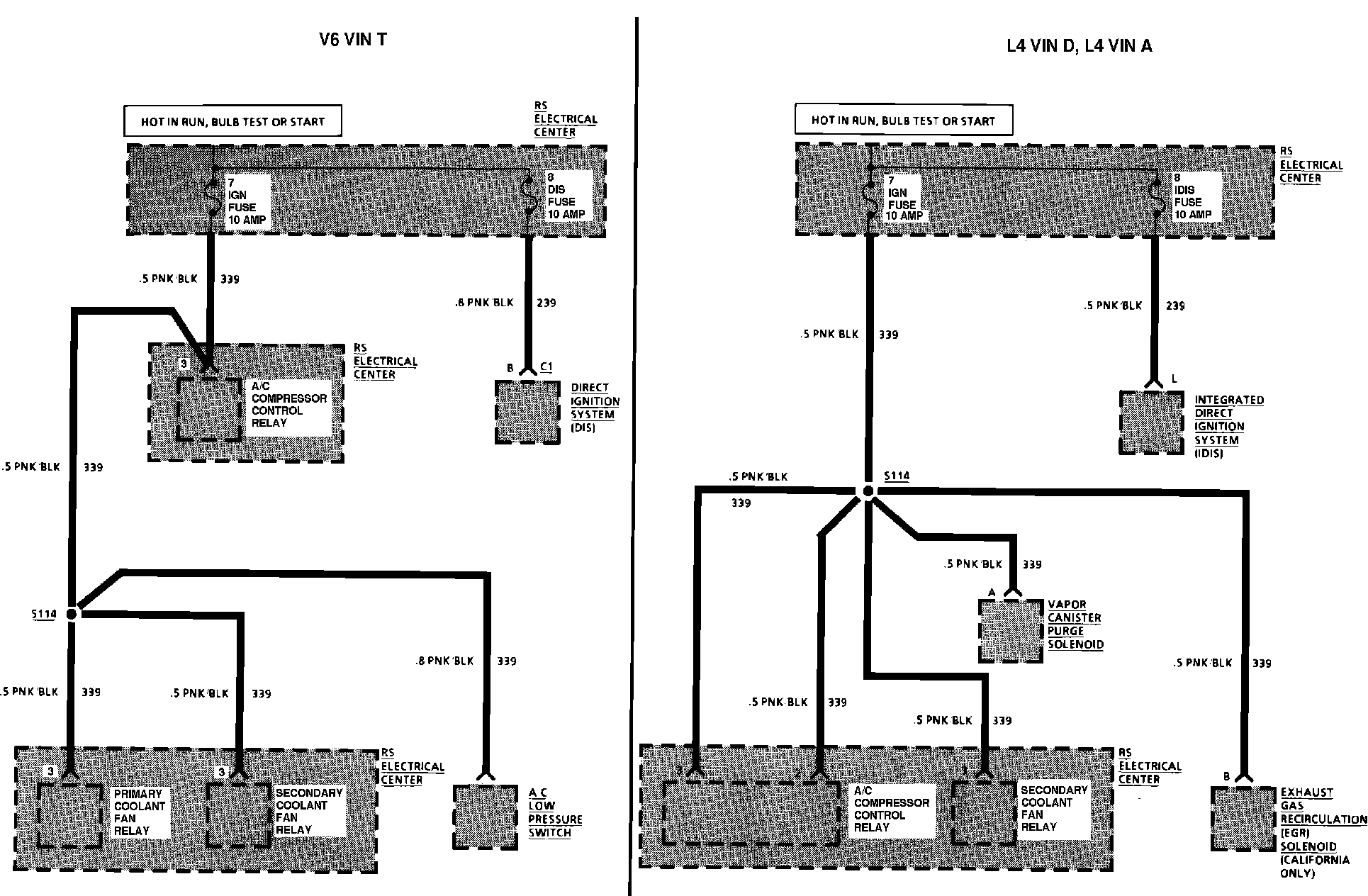

Fuse Block Details. RH Side Electrical Center:



Fuse Block Details. RH Side Electrical Center:

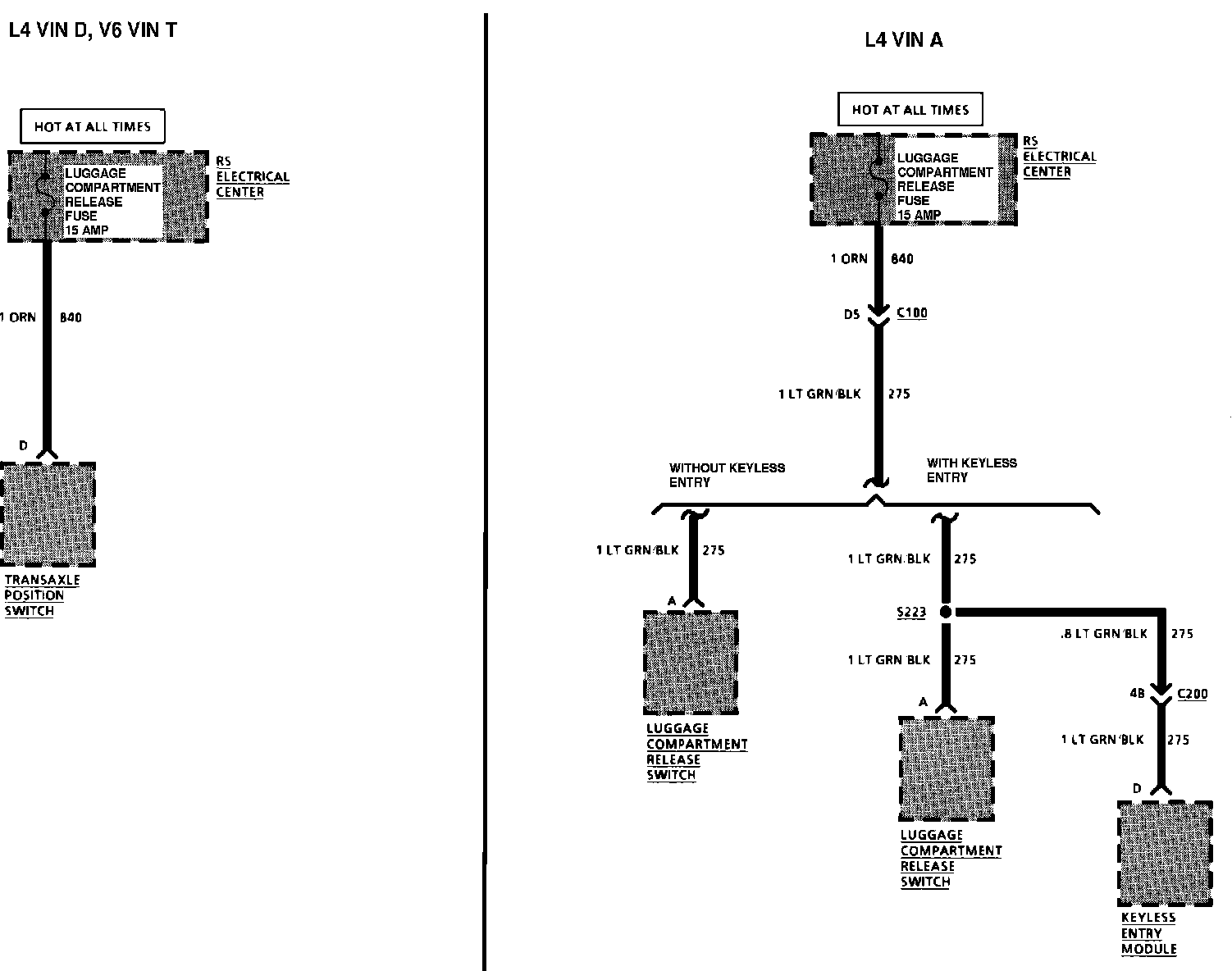

Fuse Block Details. RH Side Electrical Center:
