Cutlass L4-138 2.3L VIN D FI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Fuse Block Diagrams
>>
Lefthand Side
Lefthand Side

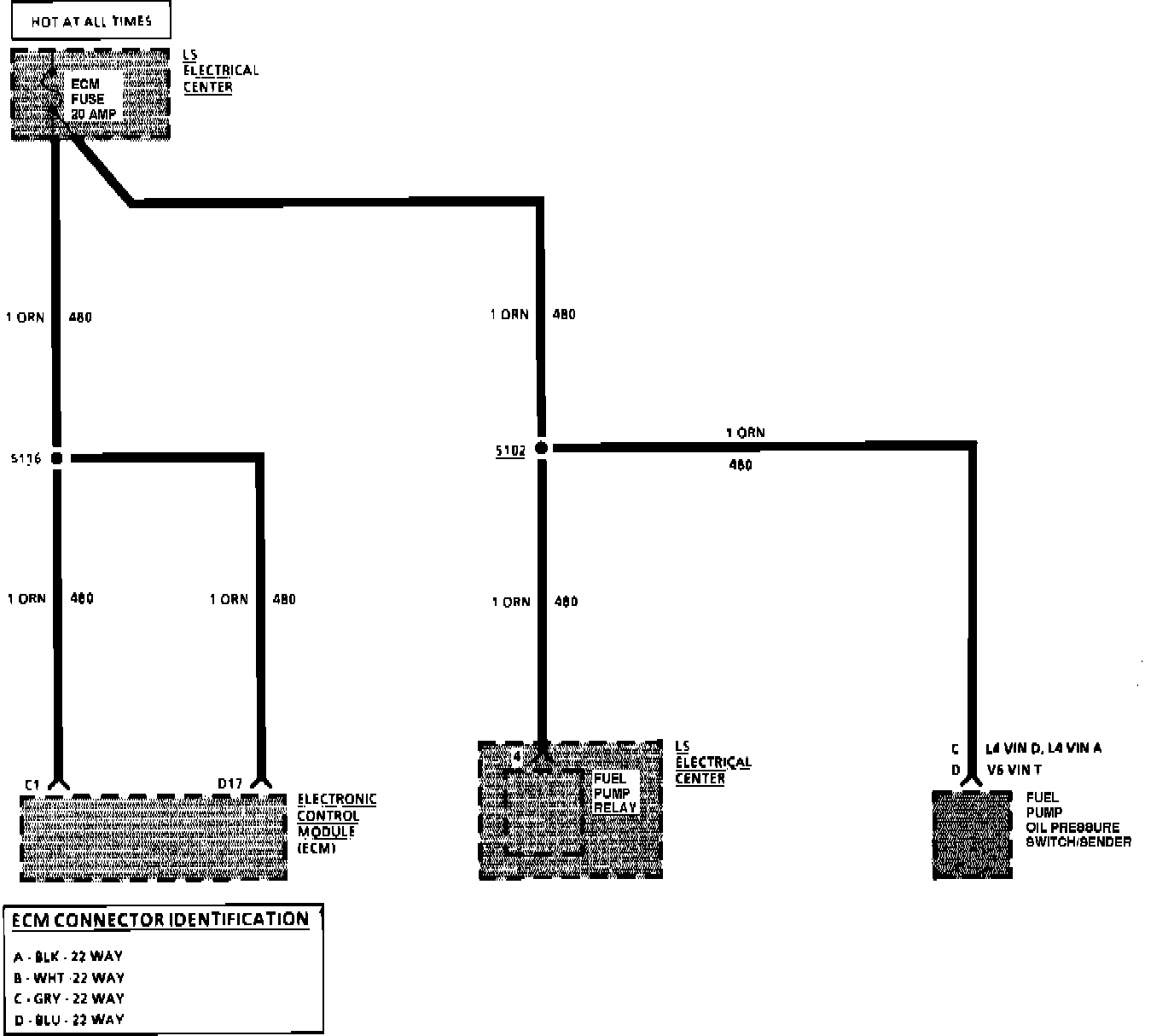

Fuse Block Details LH Side Electrical Center:
