Base

^ For Instrument Cluster removal and replacement procedures see Service and Repair.

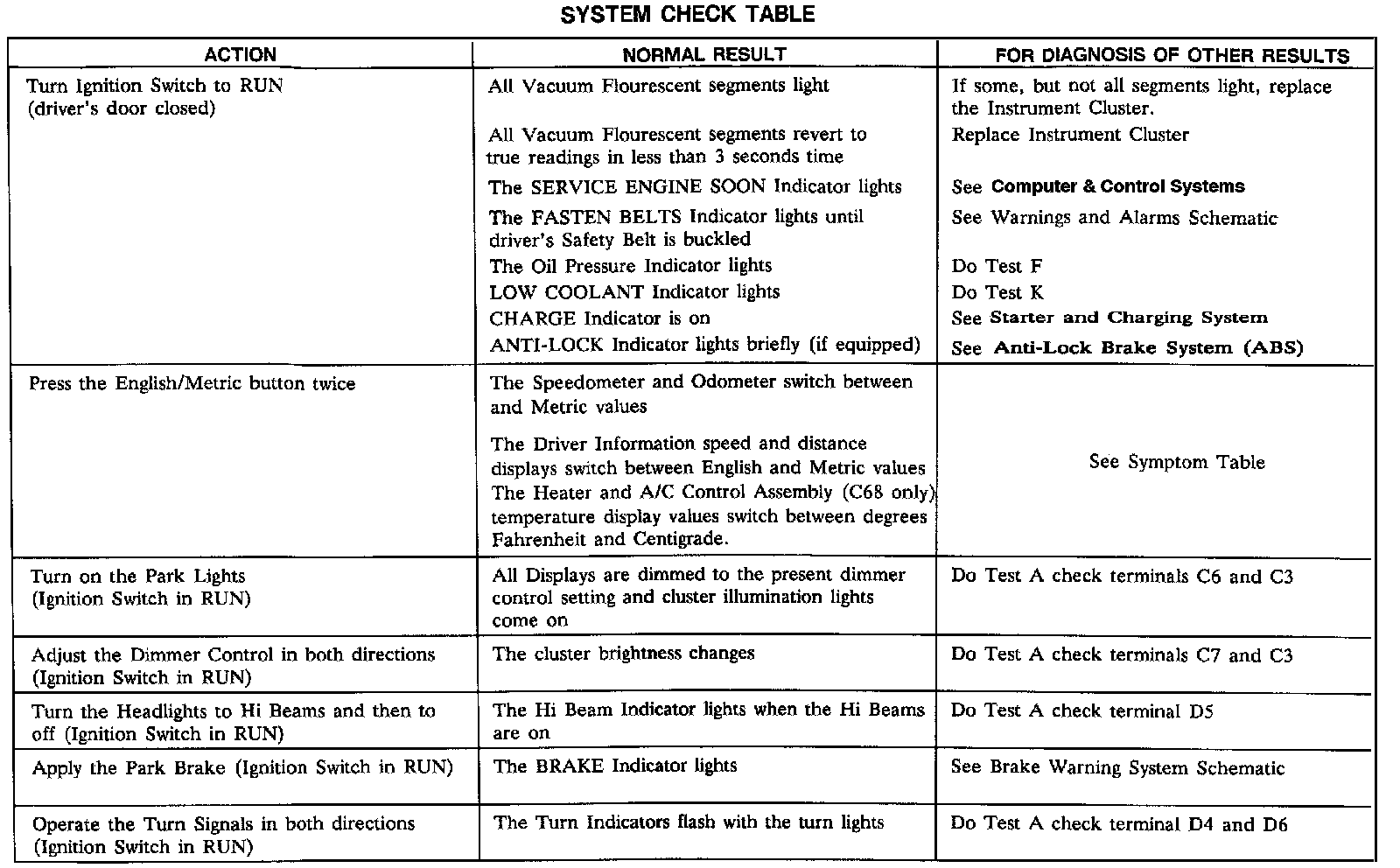

^ Use the System Check Table as a guide to normal operation. Refer to the diagnosis given if other results occur.

^ Tests follow in System Diagnosis. Base
