Oldsmobile
>>
1990
>>
Cutlass L4-138 2.3L VIN D FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Turn Signals
>>

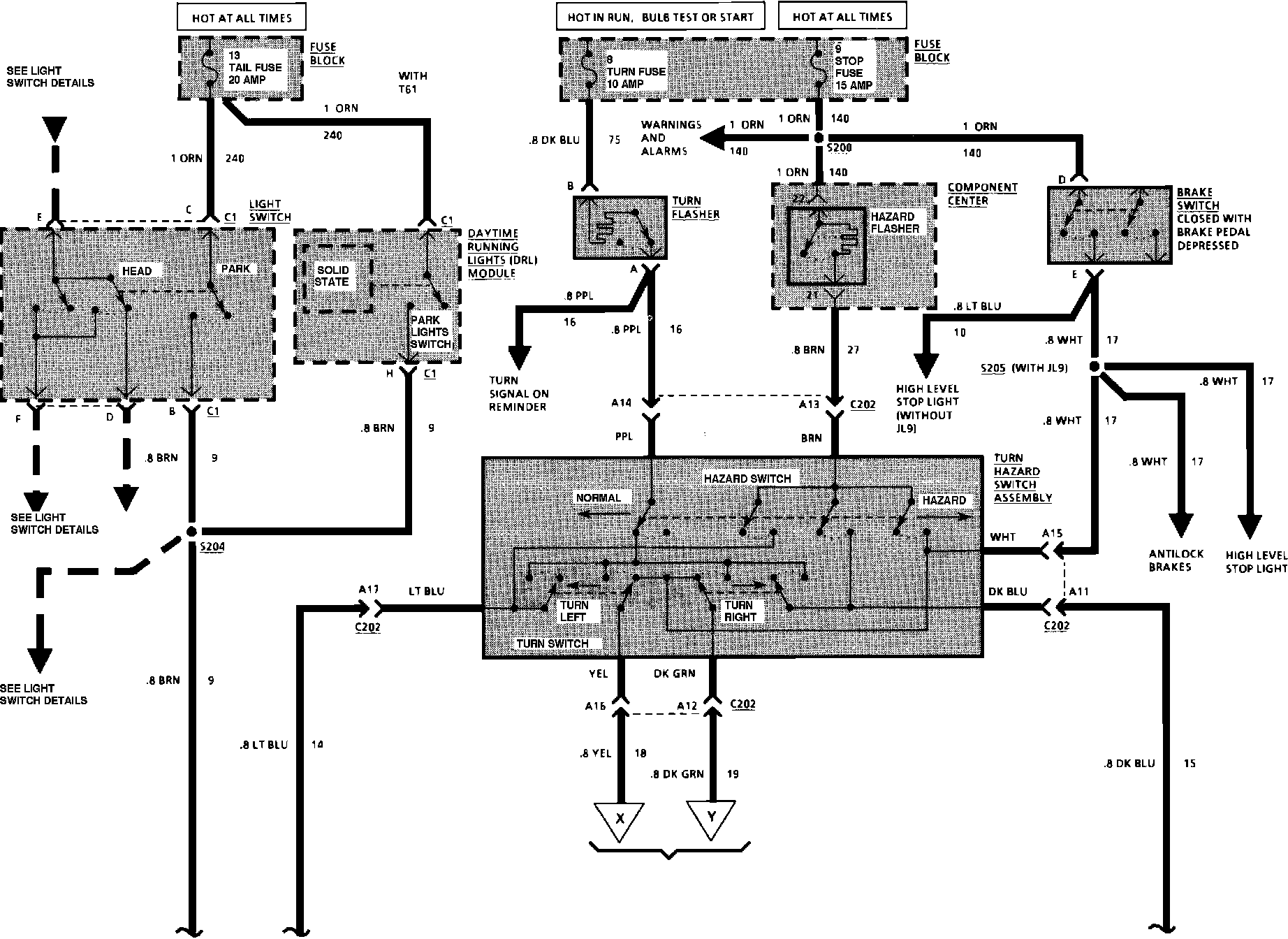

System Diagram
System Diagram

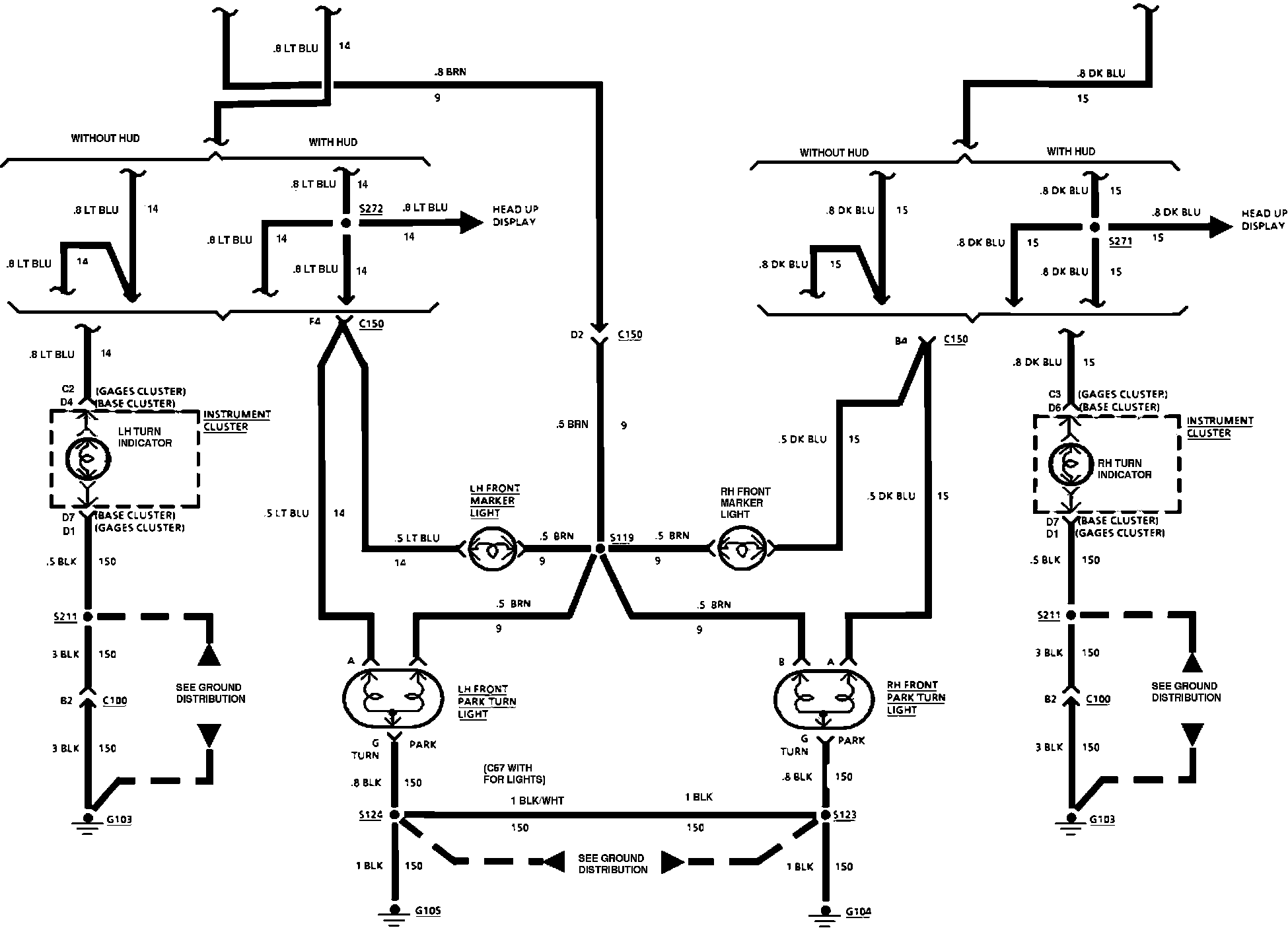

Exterior Lights. Hazard & Turn:
Exterior Lights. Hazard & Turn:
