Cutlass L4-138 2.3L VIN D FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Fuses 5, 10, 12, 15 & 18
Fuses 5, 10, 12, 15 & 18

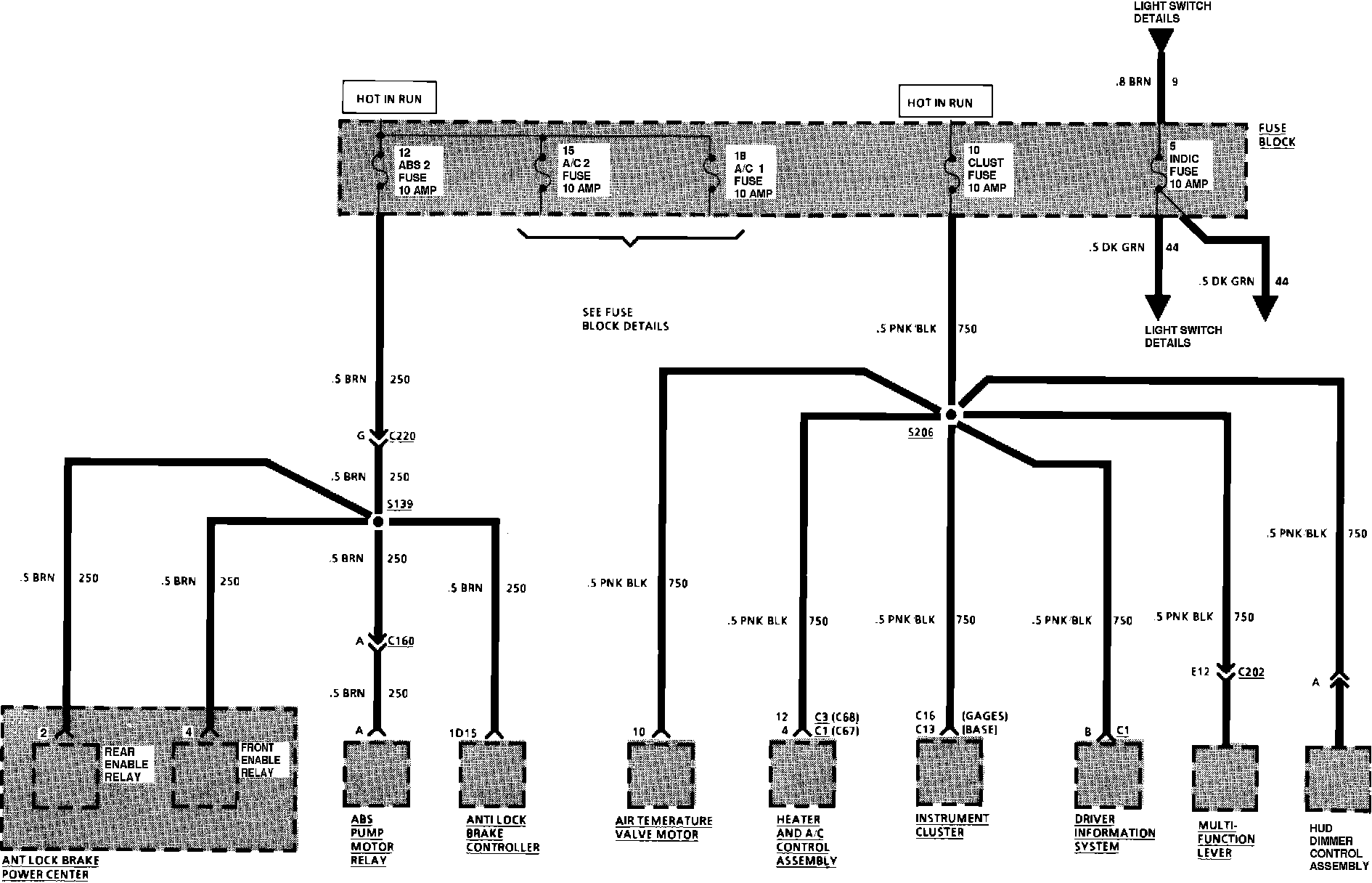

Fuse Block Details. Fuses 5, 10, 12, 15 & 18:
