Home >> Oldsmobile >> 1990 >> Cutlass L4-138 2.3L VIN D FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Fuse 2 >> Automatic Electronic Controls

Automatic Electronic Controls

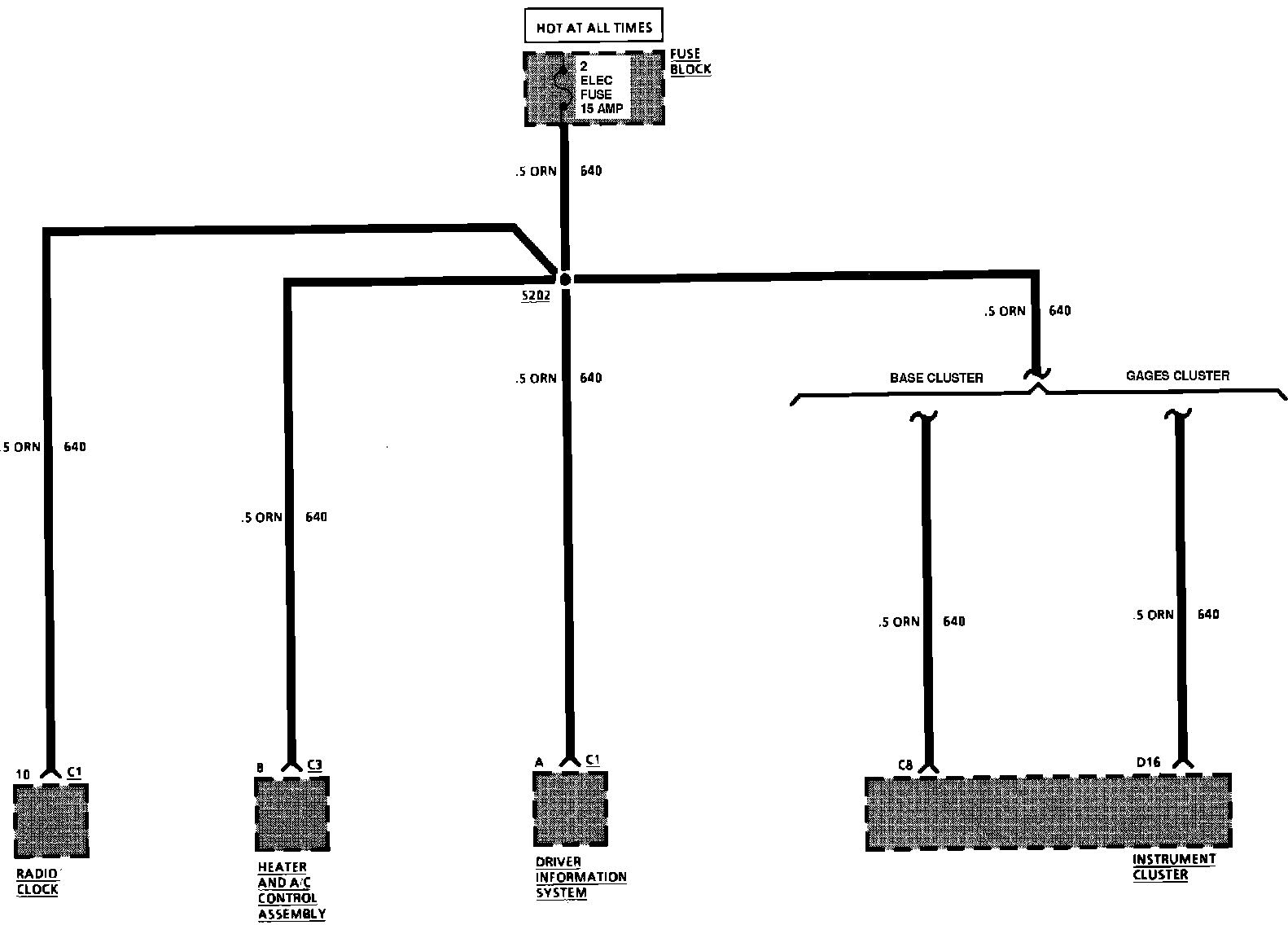

Fuse Block Details. Fuse 2. Automatic Electronic Controls:
