Home
>>
Oldsmobile
>>
1990
>>
Cutlass L4-138 2.3L VIN D FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Component Center
Component Center

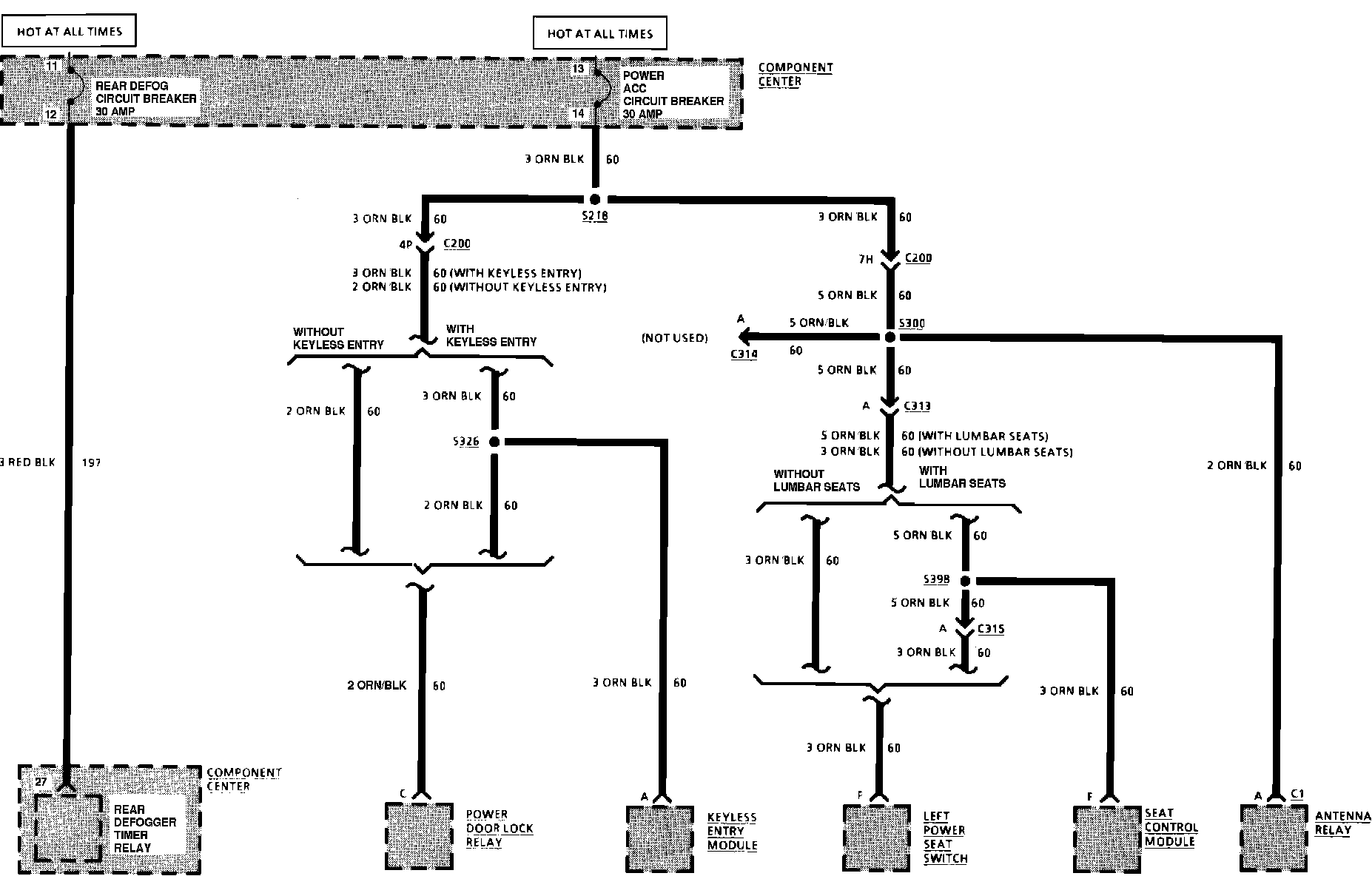

Fuse Block Details. Component Center:

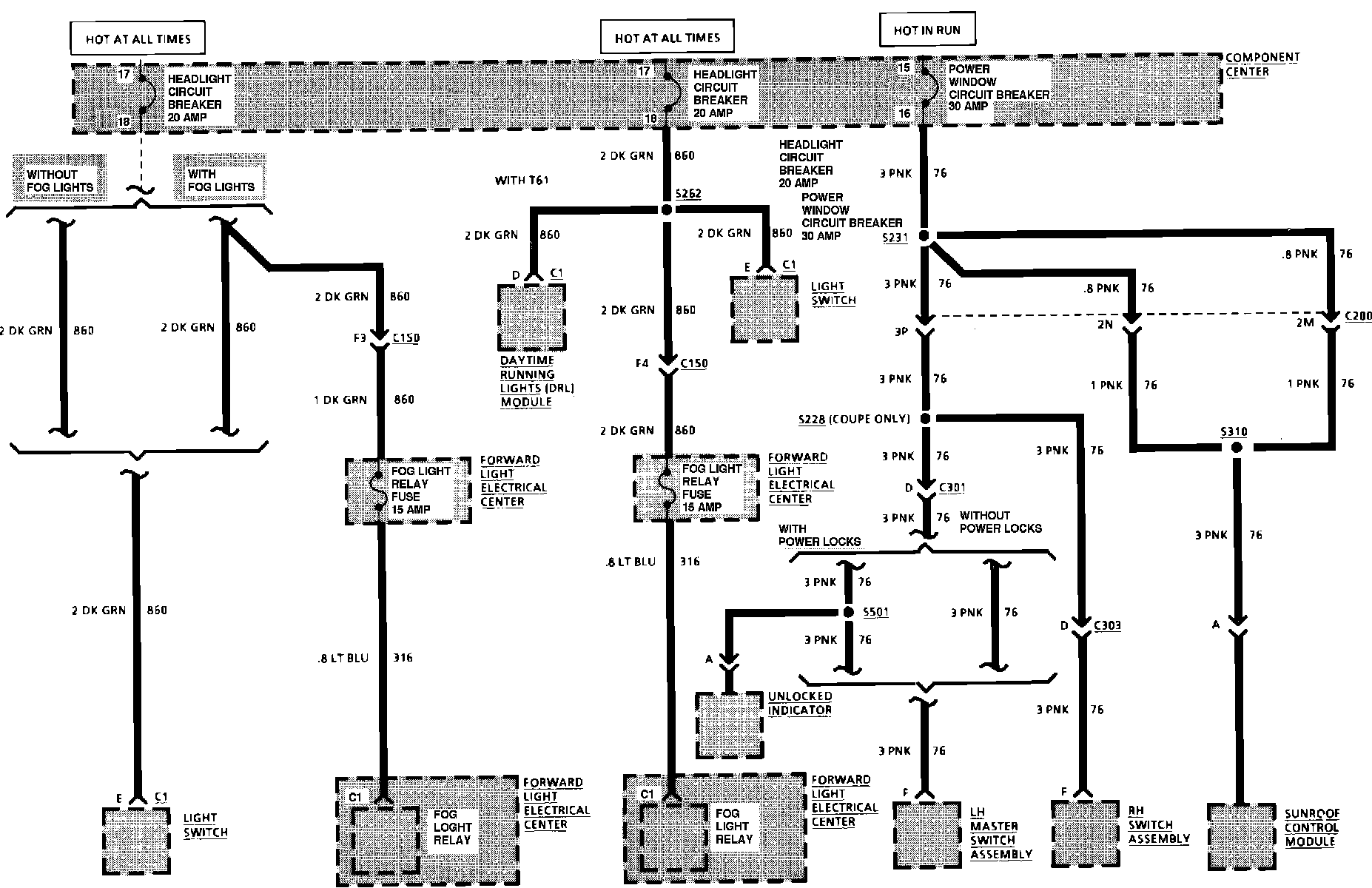

Fuse Block Details. Component Center:
