Home >> Oldsmobile >> 1990 >> Cutlass L4-138 2.3L VIN D FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats

Seats

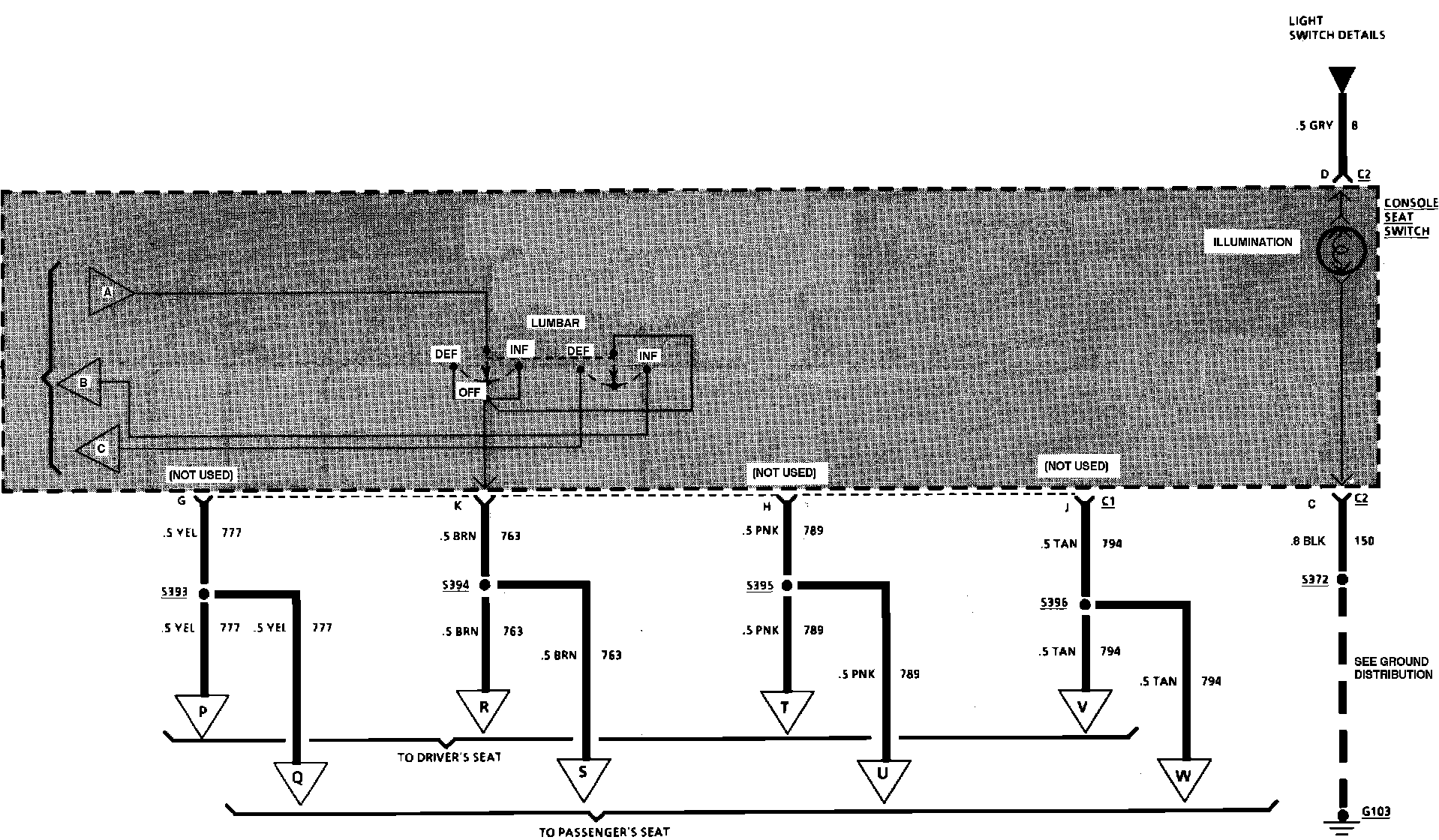

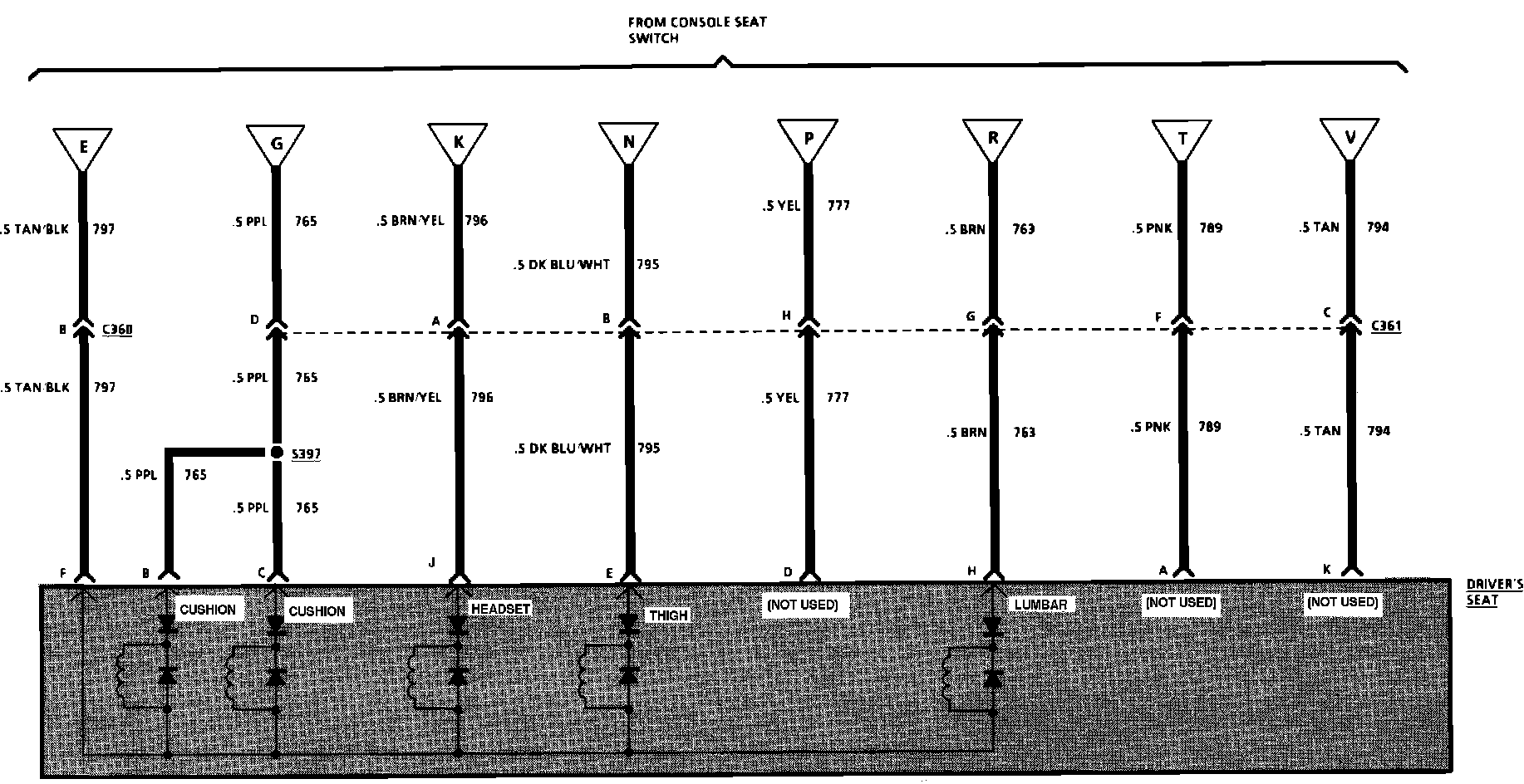

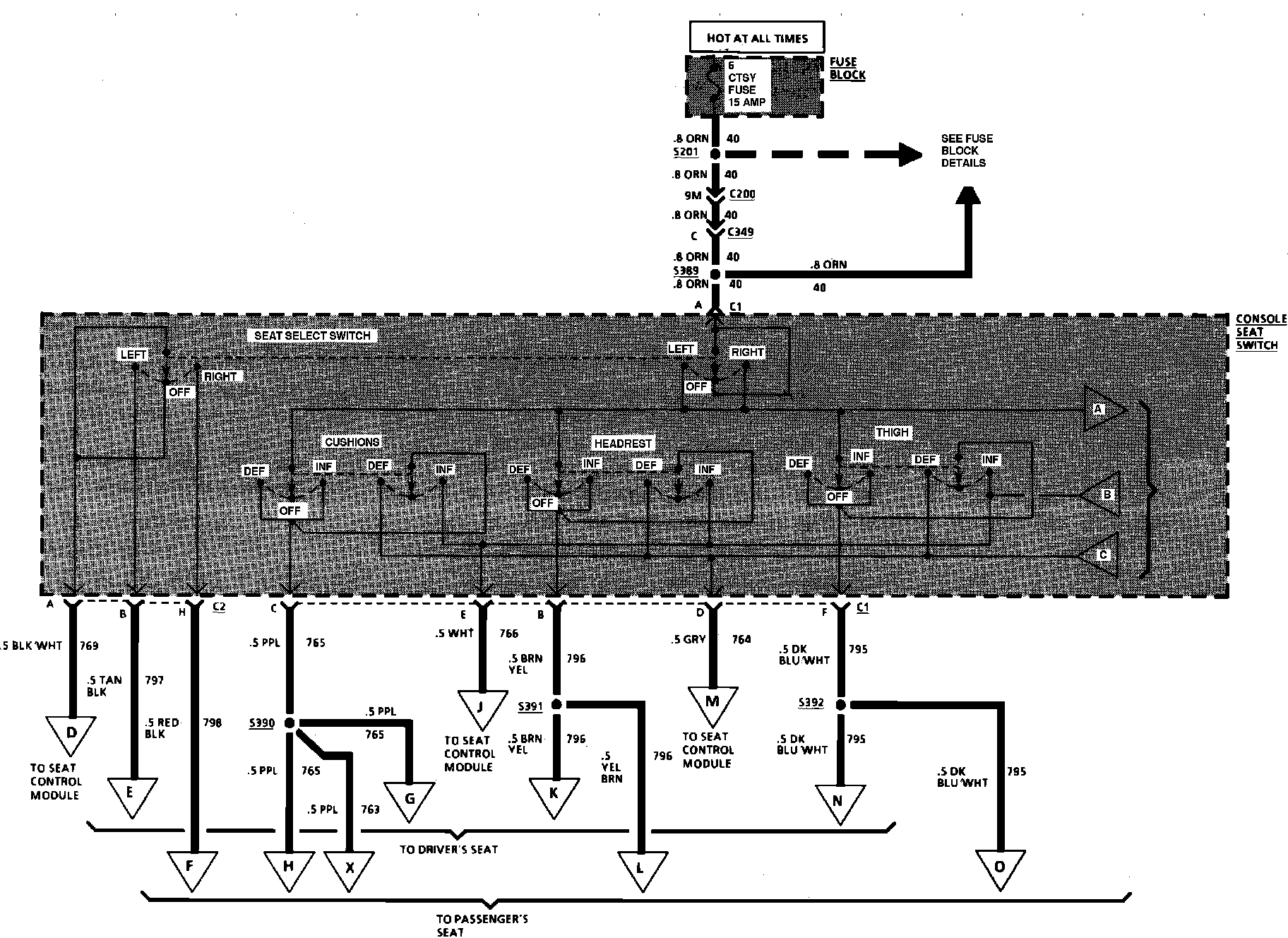

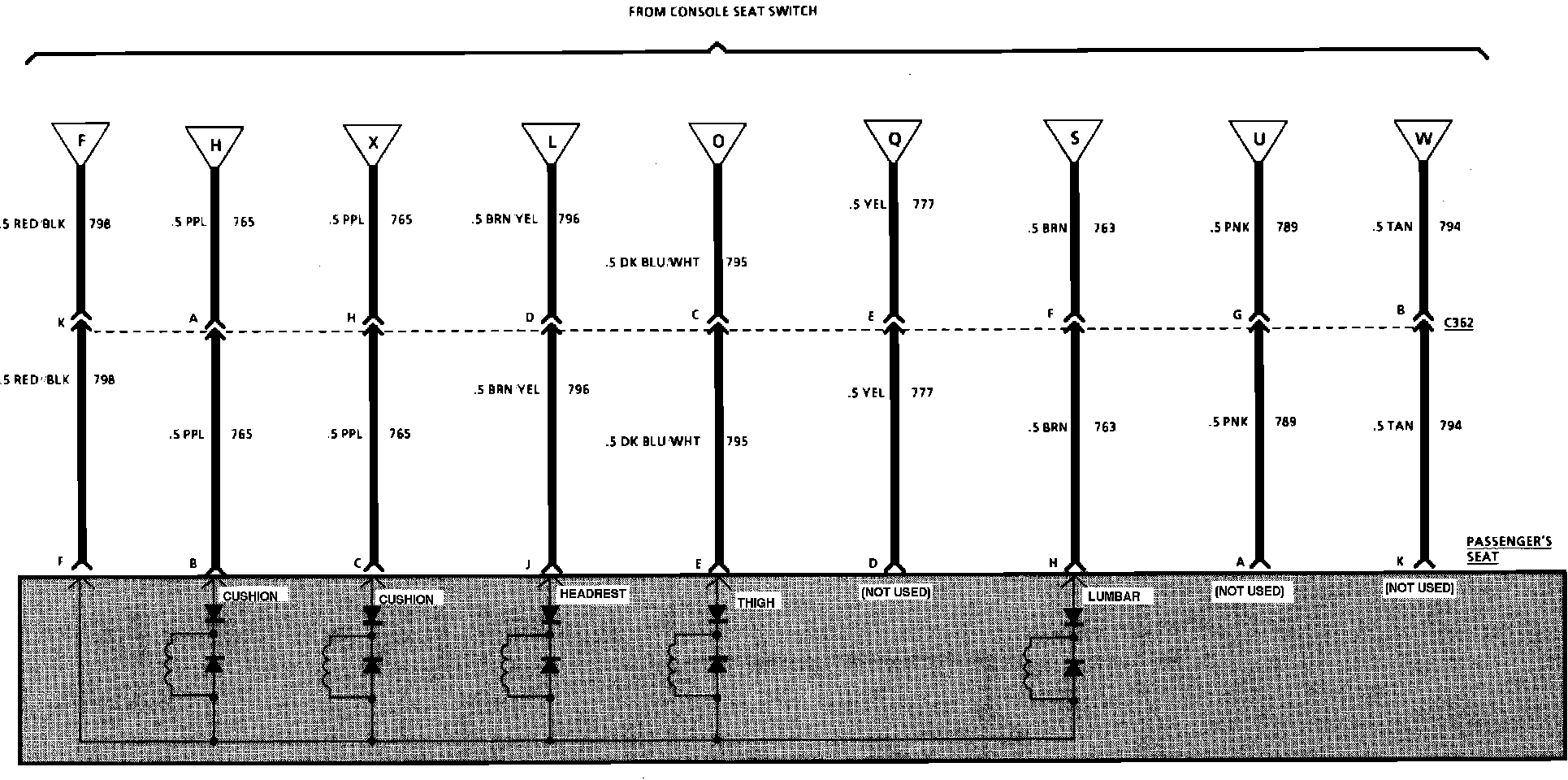

Lumbar Support:



Lumbar Support:



Lumbar Support:



Lumbar Support:



Lumbar Support:
